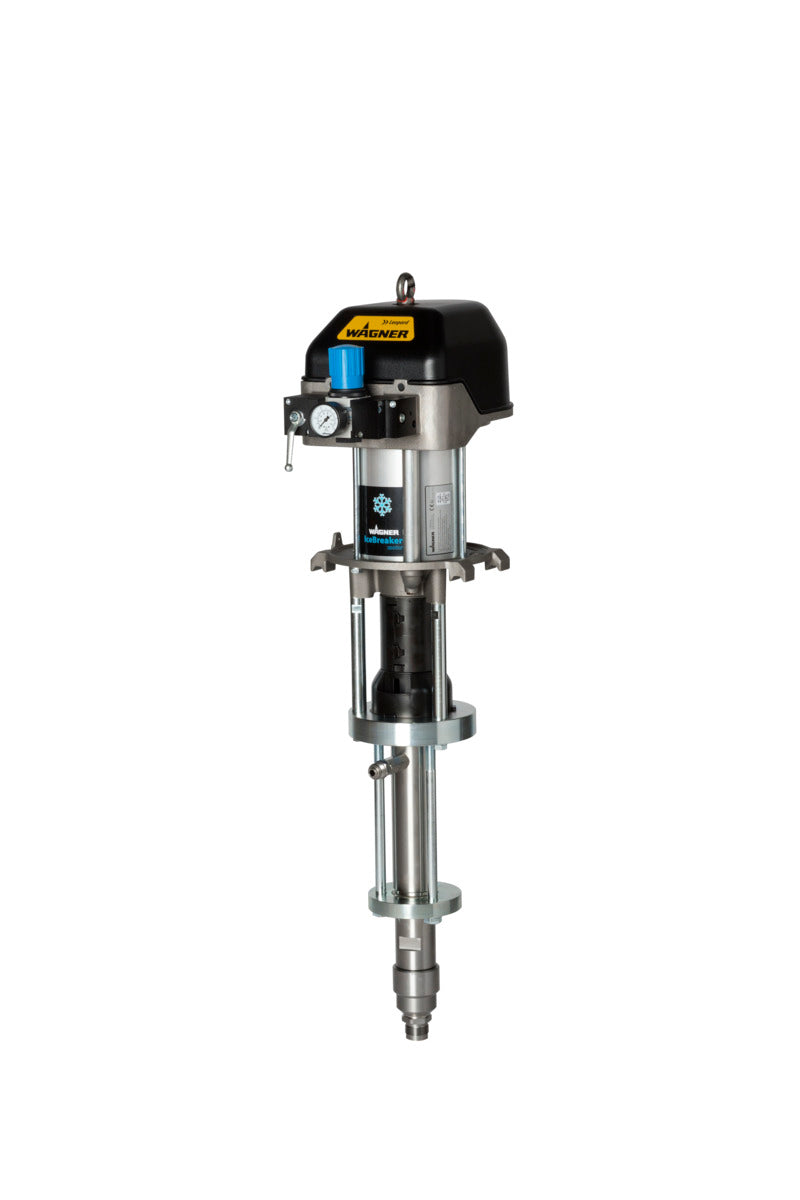

Wagner Leopard 48-110 PE/TG — Wagner order no. 2329490, from the Leopard 48-110 product line.
Overview
The Leopard 48-110 high-pressure piston pump can be used for airless applications with up to 370 bar. It is ideal for small to medium-sized surfaces and materials with medium viscosity.
Technical data (Leopard 48-110)
| Application area Metal coating, Protective Coating, Wood coating |
| Application technique Airless, AirCoat |
| Processable materials Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Material Wetted Parts Stainless steel, Hard chrome, PTFE (polytetrafluoroethylene), PE (polyethylene) |
| Weight 36 kg |
| Material outlet M M24x1,5 |
| Compressed air connection I G 1/2'' |
| Air inlet pressure 2.5-8 bar |
| Max. Material Pressure 370 bar |
| Volumetric flow per double stroke 110 cm³ |
| Volumetric Flow per Minute 6.6 l/min |
| Max. Stroke Rate 60 1/min |
| Sound level at 6 bar air pressure 74 dB(A) |
| Max. Allowed Inclination 10 ° |
| Transmission ratio (:1) 48 :1 |
| Material pH value 3.5-9 pH |
| Material temperature 5-80 °C |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
