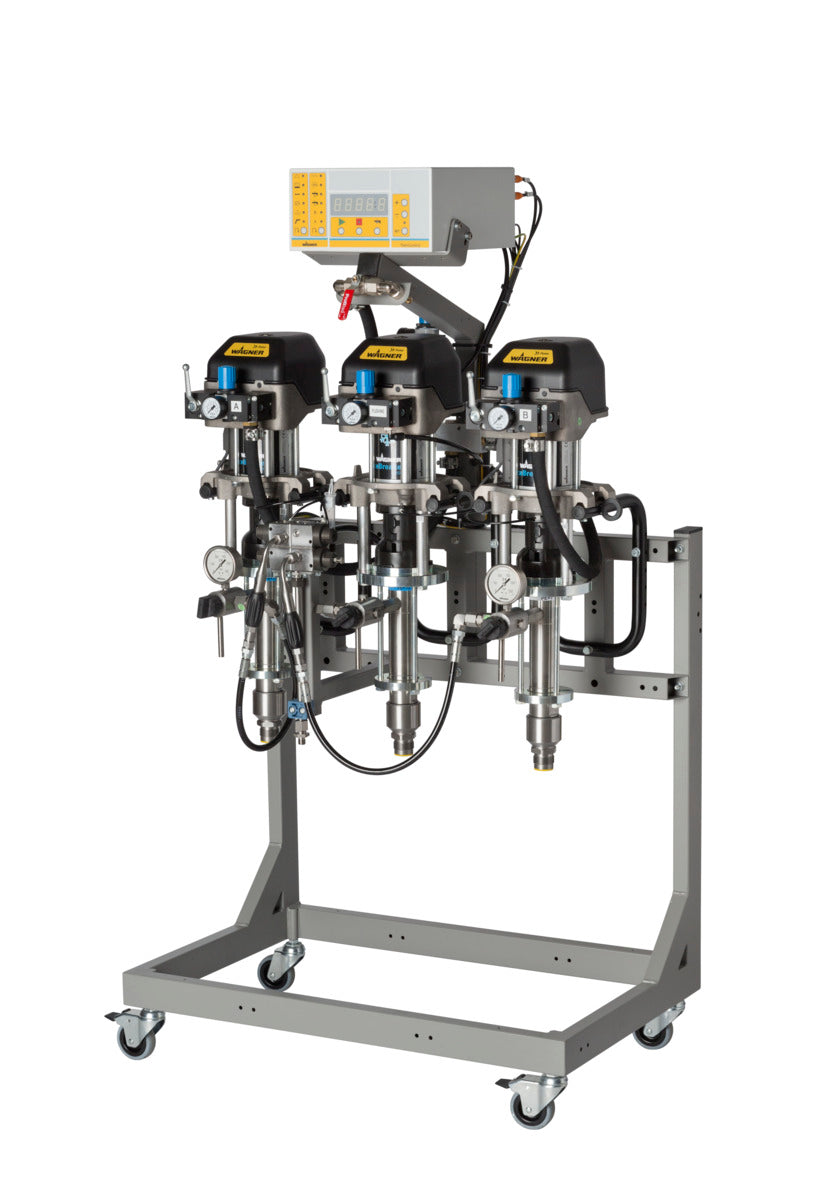

Wagner TwinControl 10-70 ABS GR — Wagner order no. 2340467, from the TwinControl 10-70 product line.
Overview
The TwinControl mixing system is ideal for processing 2K material when only a few color changes are required. It also offers great savings potential.
Technical data (TwinControl 10-70)
| Application area Metal coating, Plastic coating, Wood coating |
| Application technique Airspray |
| Processable materials Solvent based paints (2K), Water-based paints (2K), High-solid paints (2K) |
| Material Wetted Parts Stainless steel, Hard chrome, Carbide, Packing PE-T / PE-TG |
| Material outlet M G 3/8'' |
| Compressed air connection I G 1/2'' |
| Air inlet pressure 5-8 bar |
| Max. Material Pressure 40 bar |
| Input frequency 50-60 Hz |
| Input voltage 115-230 V |
| Material pH value 9-3.5 pH |
| Material temperature 5-60 °C |
| Mixing Accuracy 2 % |
| Mixing ratio 0.1-20 :1 |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
