Wagner Leopard 26-200 PE/TG — Wagner order no. 2417044, from the Leopard 26-200 product line.
Overview

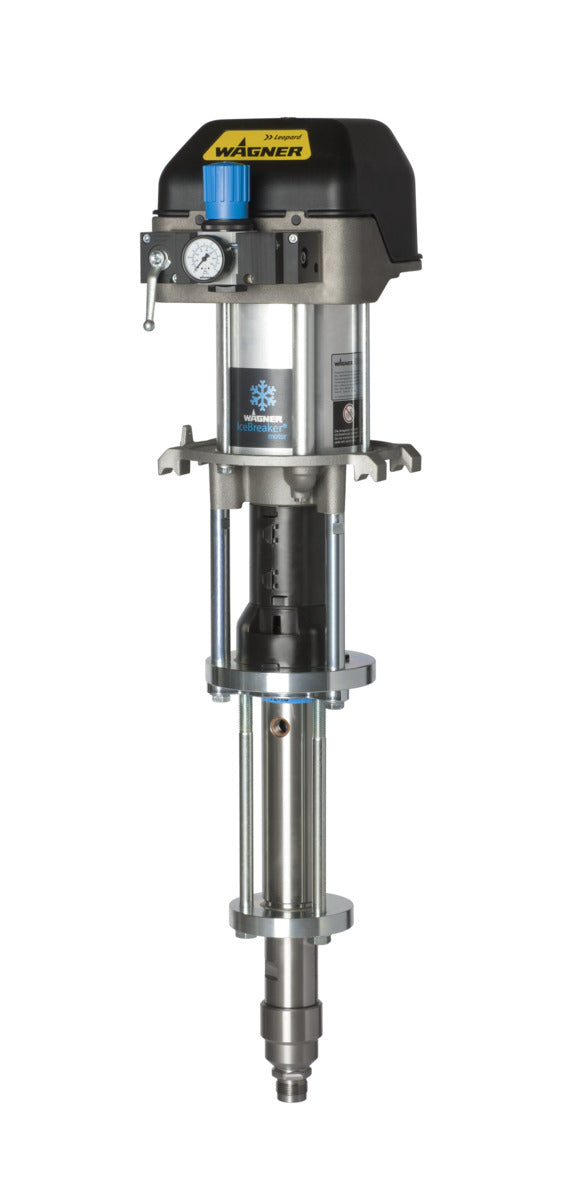

The Leopard 26-200 high-pressure piston pump can be used for AirCoat applications with up to 200 bar.
Technical data (Leopard 26-200)
| Application area Metal coating, Wood coating |
| Application technique AirCoat |
| Processable materials Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Material Wetted Parts Stainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene), PE (polyethylene) |
| Weight 38 kg |
| Material outlet M M24x1,5 |
| Compressed air connection I G 1/2'' |
| Air inlet pressure 2.5-8 bar |
| Max. Material Pressure 200 bar |
| Volumetric flow per double stroke 200 cm³ |
| Volumetric Flow per Minute 12 l/min |
| Max. Stroke Rate 60 1/min |
| Sound level at 6 bar air pressure 74 dB(A) |
| Max. Allowed Inclination 10 ° |
| Transmission ratio (:1) 26 :1 |
| Material pH value 3.5-9 pH |
| Material temperature 5-80 °C |
Configured to order from Wagner. Call (888) 714-1410 for lead time, configuration help and system quotes.
