Cobra® is a high-pressure double diaphragm pump suitable for Airless and AirCoat applications up to 250 bar/3,625 psi. Cobra® is the first high-pressure pneumatic pump without packings. The absence of friction in the fluid section and the minimum shear make it perfect for any kind of material including the most critical ones such as reactive paints (UV paints, isocyanate’s, acrylics) or highly abrasive materials. The pump works with extremely low pulsation and creates a uniform paint flow, achieving a perfect spray pattern and superb surface quality

High pressure, double diaphragm pump, Consistal. For AirCoat and Airless applications up to 2.5 l/min and 250 bar. Ideal for everything from the individual lacquer station to complex multi-paint systems.

No Application Limits

• Cobra® is friction free and can handle all critical materials.
• Minimized shearing effect.
• Reduced pulsation to ensure a consistent flow of material and a finer finish.
• Cobra® pumps have high speed operation and very small fluid chambers.

The fluid section minimizes material travel distance and lowers operating costs of the Cobra® to ensure enormous saving benefits!

• Reduced solvent consumption: up to 60% savings during flushing procedures.
• Less paint waste.
• Easy and fast color changes.
• Lower maintenance due to extremely low wear.

Material wetted parts

• Tungsten carbide
• Stainless steel
• Consistal
• PA

Included Items

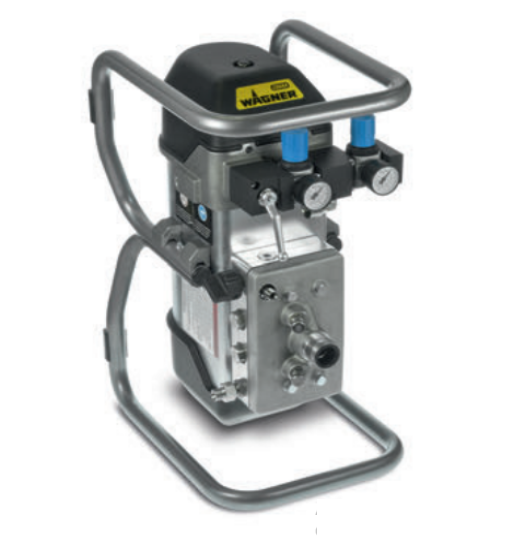

• Cobra 40-10
• Sign
• Ground cable assy.
• Double open-end wrench
• CE declaration of conformity
• User manual

Ordering information

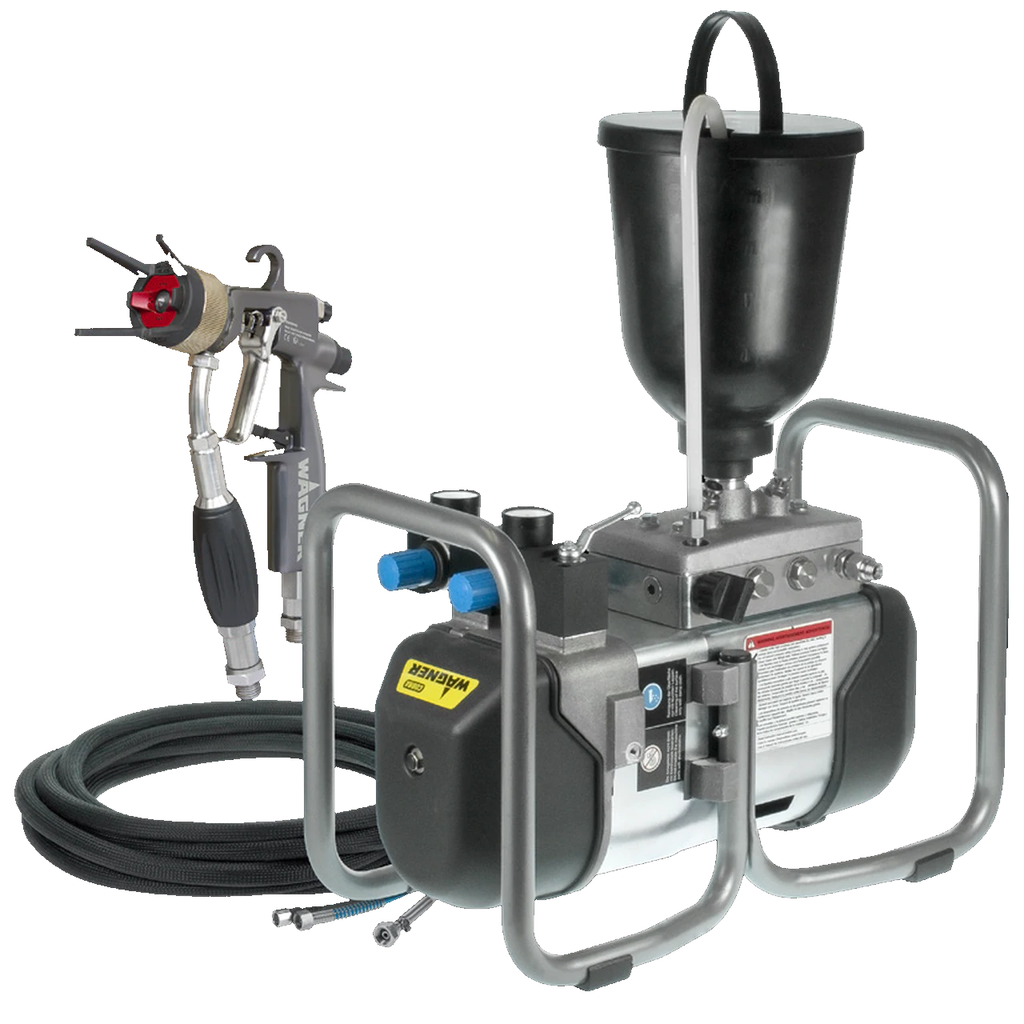

• Spraypack consisting of pump with frame, top tank, air regulator, hose set, and AirCoat gun
• The desired spraypack can be created using the basic pump and a selection from our comprehensive accessories range

Spraypacks high-pressure diaphragm pumps

WAGNER offers a selection of predefined spraypacks. Please choose the spraypack most suitable for your requirements from the following table. You can also create your own individual spraypack, to do this either visit our web shop or contact your WAGNER sales partner.

• Stand Cobra
• Set AirCoat regulator IceBreaker
• Hopper-set 5L-Cobra
• GM 4700AC 25MPa NPSM1/4“
• Nozzle ACF3000 11/40
• Air cap LV plus (red / GM 4x00AC)
• AC-Hose-DN4-PN270-1/4“NPS-7,5m-PA-T
• Fitting-RF-FM-G3/8-1/4NPSM-530bar-SSt

Included:

• GM 4700AC (#2313585)
• Air Cap LV (#2313494)
• Nozzle ACF 3000 (#379411)
• Cobra 40-10 w/Stand (#2329521)
• Hopper 5L (#2344505)
• Hose (#2309706)
• AirCoat Regulator (#2328611)
• Fitting (#2332621)
