EvoMotion 5-125 PE/T Low-Pressure Piston Pump — Wagner EvoMotion 5-125 (Low-pressure piston pump).
Low-pressure piston pump, stainless steel, for material delivery up to 40 bar and 7.5 l/min. For suctioning directly from 200 liter drums with bunghole. With shovel piston for high-viscosity materials. Ideally suited as a feed pump.
Benefits
- High flow rate: Shovel-type feeding pump with 2" pipe. Ideal for 200l drums with 2" bung hole. Also suitable for more viscous materials.
- Easy to maintain: Fluid sections are entirely made from stainless steel. High quality and self-adjusting packings reduce wear to a minimum. The air-motor is nearly maintenance-free and does not need any additional lubricants.
Technical data
| Application area | Metal coating, Plastic coating, Protective Coating, Wood coating |
|---|---|
| Processable materials | Water-borne, Solvent-borne, Abrasive, sensitive to moisture |
| Material Wetted Parts | Stainless steel, Carbon steel, PTFE (polytetrafluoroethylene), PA (polyamide), PE (polyethylene) |
| Weight | 25 kg |
| Material outlet | I G 1/2'' |
| Air inlet pressure | 2-8 bar |
| Max. Material Pressure | 40 bar |
| Volumetric flow per double stroke | 125 cm³ |
| Volumetric Flow per Minute | 7.5 l/min |
| Max. Stroke Rate | 60 1/min |
| Sound level at 6 bar air pressure | 69 dB(A) |
| Material temperature | 5-80 °C |
Article number: U1B05125D

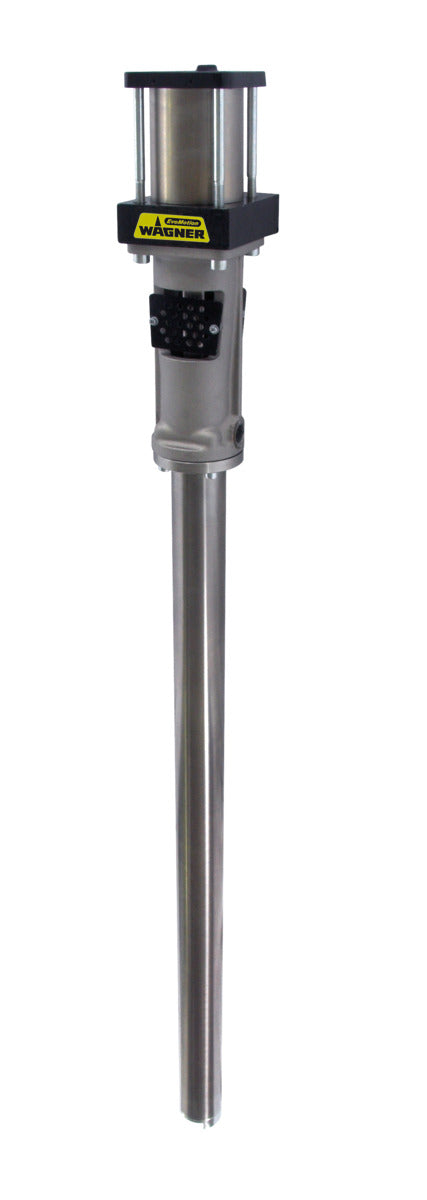

Photo shows the EvoMotion 5-125 product family; confirm the exact configuration against the article number.
