Wall Mount, Open Stainless Steel Bowl, Hughes Laboratory Eye/Face Wash

Wall Mount, Open Stainless Steel Bowl, Hughes Laboratory Eye/Face Wash

Regular price
$811.00

See Lower Price in Cart

Quantity must be 1 or more

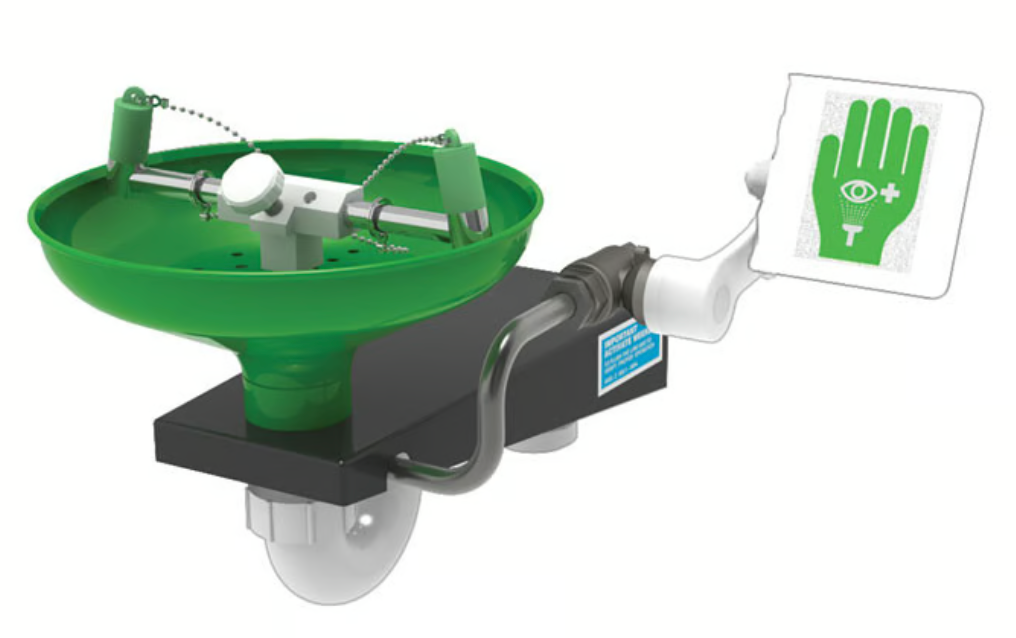

Ideal for laboratories, schools and general light duty indoor use, this wall mounted eye/face wash unit meets ANSI Z358.1 and EN 15154 standards, and supports OSHA requirements. Pop-off dust covers protect the twin spray nozzles from contaminants, and are lifted off by the water jets upon operation via the push plate. Includes an inspection record tag for recording test and service history.

  • Easy-to-clean powder coated stainless steel bowl for excellent corrosion resistance
  • Pop-off dust covers protect the twin spray nozzles from contaminants
  • Fine mesh strainers and an individual flow controller provide a gentle flow of aerated water and prevent further injury to the eyes
  • High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions
  • Includes a universal eye wash sign for enhanced visibility

Specifications:

Color Green
UPC 805042000106
Net Weight, lbs 7.7
Net Weight, kg 3.5
Dimensions, Exterior 11.6" H x 16.9" W x 15.7" D
295mm H x 429mm W x 429mm D
UL Classified to ANSI Z358.1-2014 Yes
Water Inlet Size NPT 1/2 in (F)
Minimum Operating Pressure 2 bar g, 29 PSI
Maximum Operating Pressure 6 bar g, 87 PSI
Water Flow Eye/Face Liters/min 11.4
Water Flow Eye/Face US Gal/min 3
Material Specifications Eye/facewash diffusers: Chrome plated brass with stainless steel mesh.
Operating Valve Material 316L Stainless
Eye/Face Wash Bowl Material Green Powder-Coated Stainless Steel
Mounting Type Wall
Activation Method Push Plate
Eye/Face Wash Bowl Interior Dimensions 10.25" W x 10.25" D
260mm W x 260mm D
Minimum Ambient Temperature, °F 41
Minimum Ambient Temperature, °C 5
Maximum Ambient Temperature, °F 95
Maximum Ambient Temperature, °C 35

;
