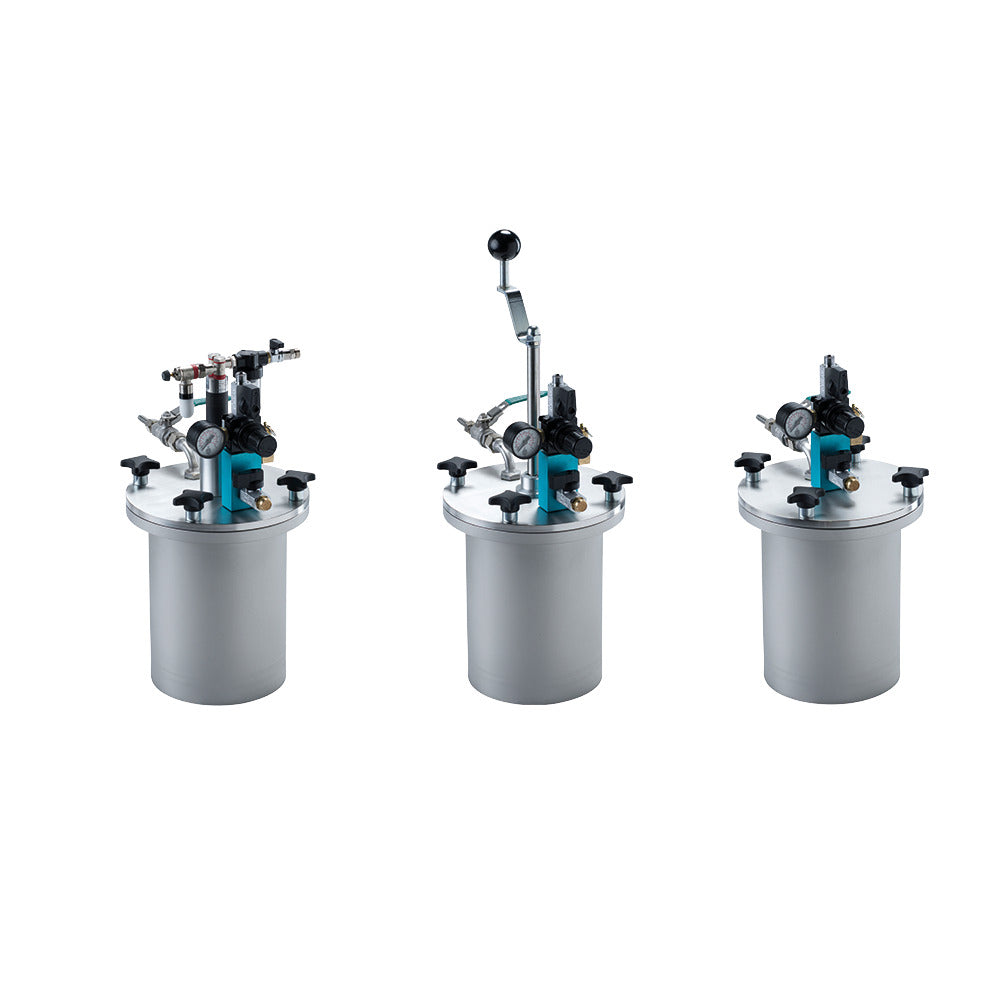

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4025160113
Manufacturer designation: MDG-4 6bar HRW 1oA

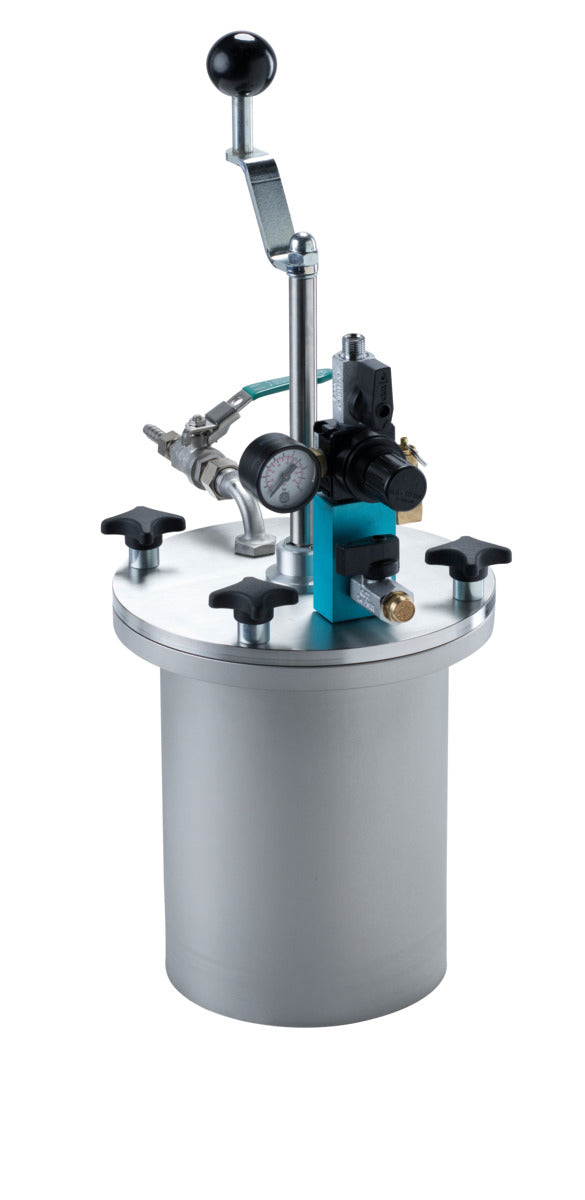

Configuration: 6 bar, Manual Agitator, 1 Upper Outlet
Technical data (MDG 4)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 4 bar / 6 bar |
| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| Outlet optional | 1 upper outlet |
| 1 lower outlet | Regulator optional |
| Single regulator | +2. regulator |
| Material outlet (top/bottom) | 1/4" / 3/8" |
| Capacity (filling quantity/usable capacity) | 4.1 liters / 3.1 liters |
| Diameter (inside/outside) | 162.5mm / 222mm |
| Total height without agitator (upper / lower outlet) | 410mm / 430mm |
| Total height with manual agitator (upper / lower outlet) | 562mm / 582mm |
| Total height with pneumatic agitator (upper / lower outlet) | 413mm / 433mm |
