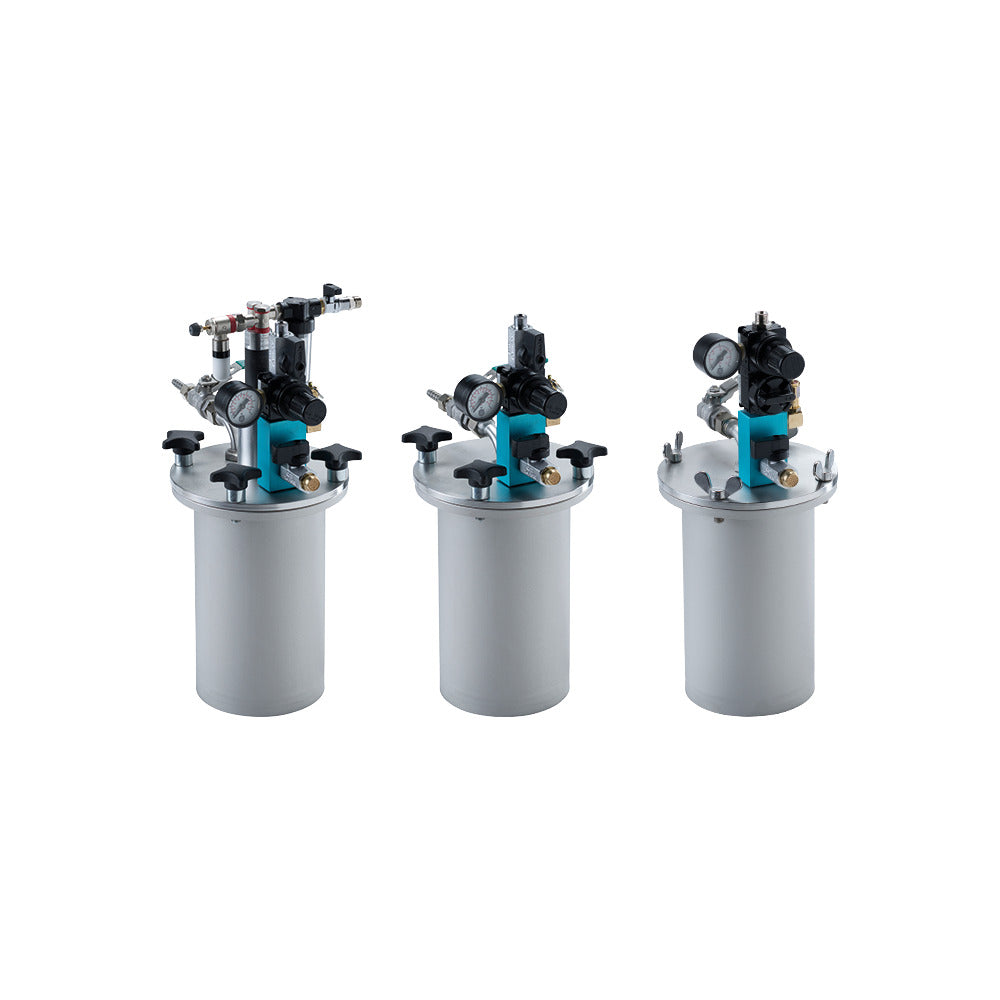

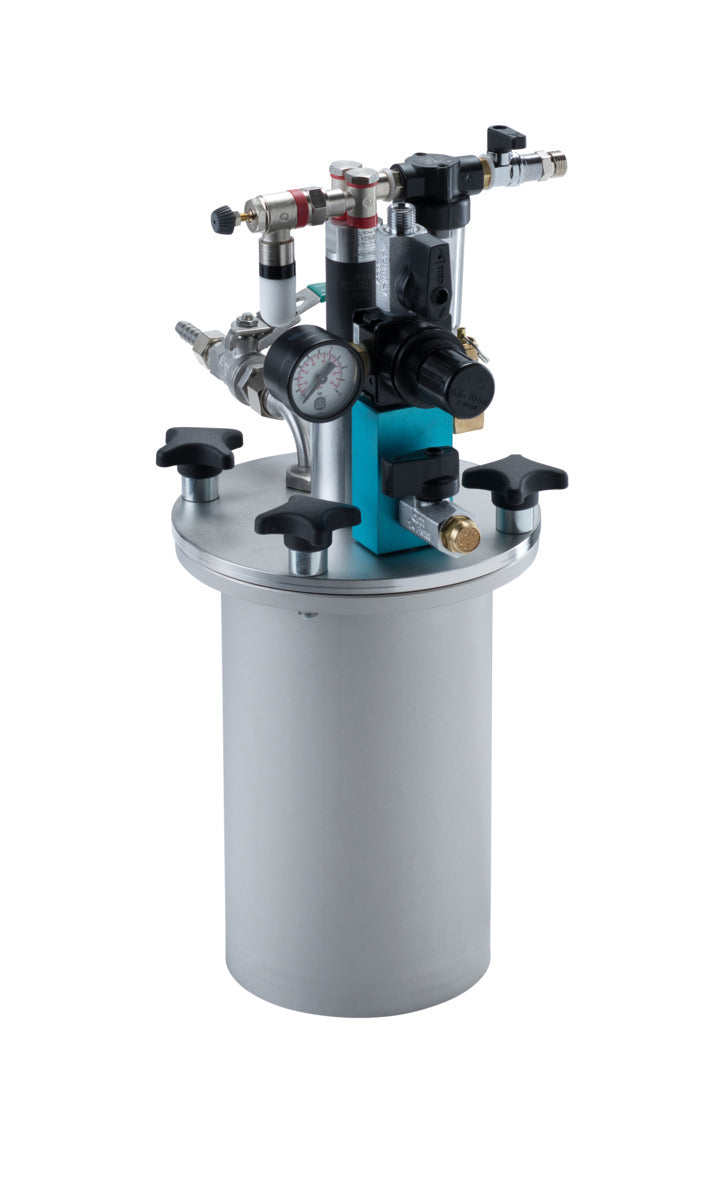

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

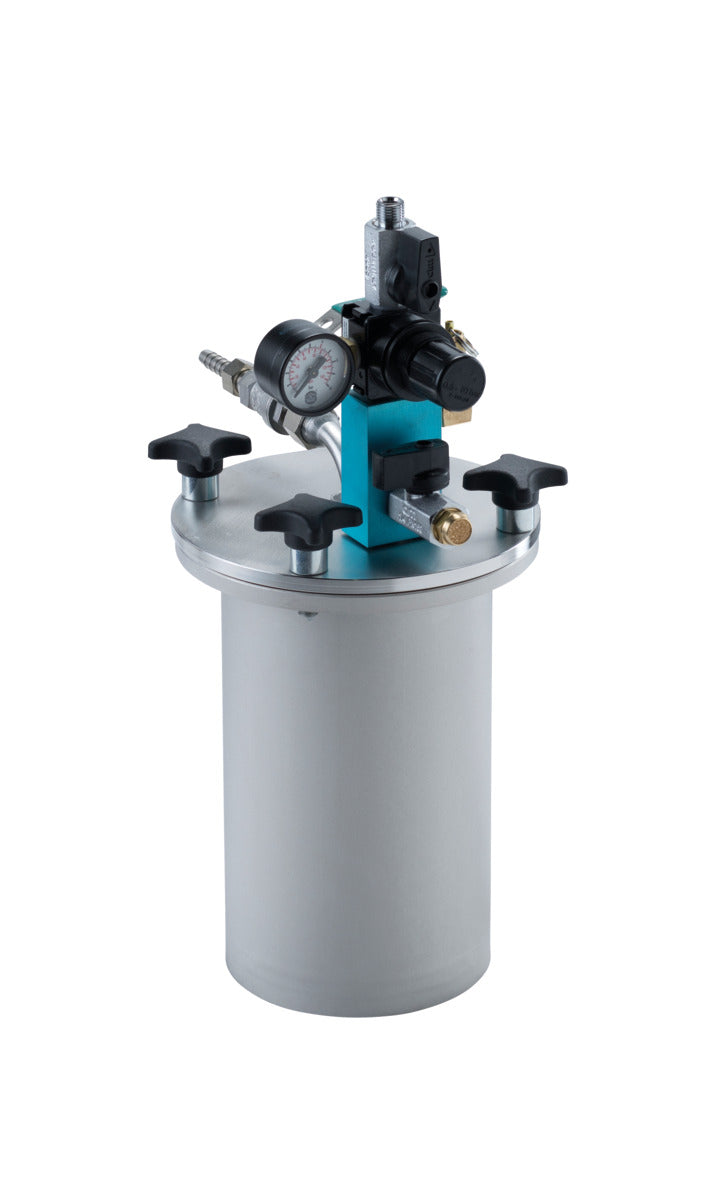

Article number: V4402260023
Manufacturer designation: MDG-2 6bar ORW 1uA
Configuration: 6 bar, Without Agitator, 1 Lower Outlet
Technical data (MDG 2)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 3 bar / 6 bar |
| Agitator optional | without agitator |
| pneumatic agitator | Outlet optional |
| 1 upper outlet | 1 lower outlet |
| Regulator optional | single regulator |
| +2. regulator | Material outlet (top/bottom) |
| 1/4" / 1/4" | Capacity (filling quantity/usable capacity) |
| 2.45 liters / 1.8 liters | Diameter (inside/outside) |
| 125mm / 173mm | Total height without agitator (upper / lower outlet) |
| 394mm | Total height with pneumatic agitator (upper / lower outlet) |
