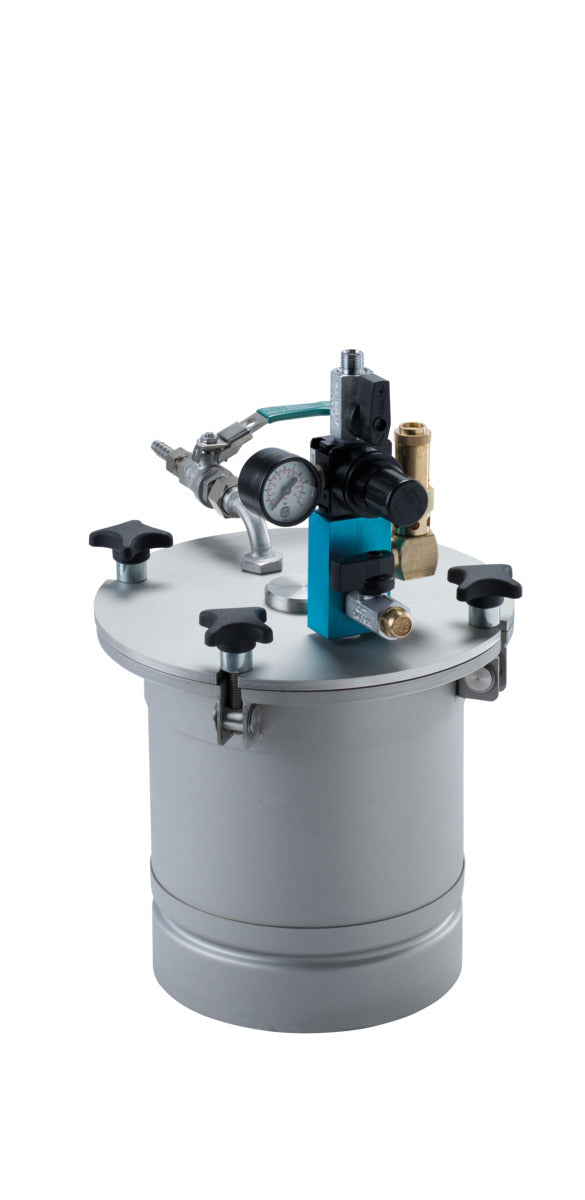

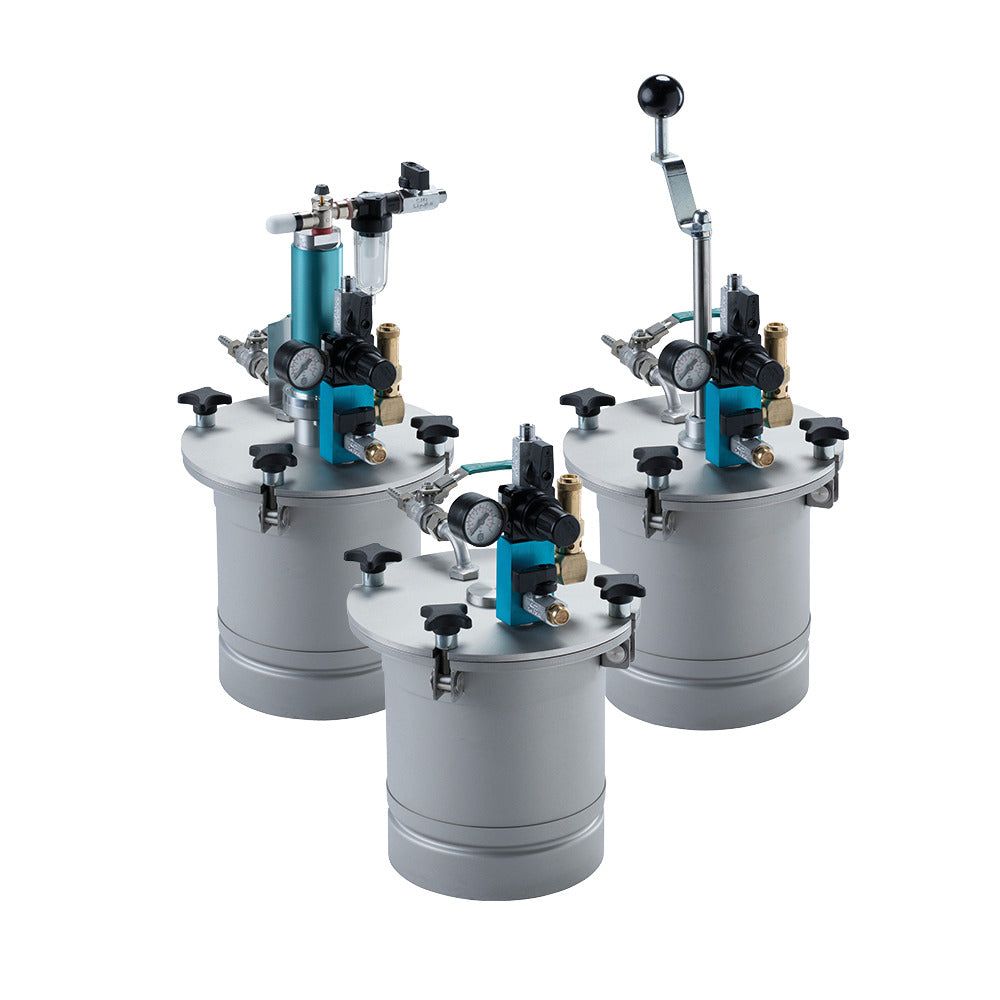

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

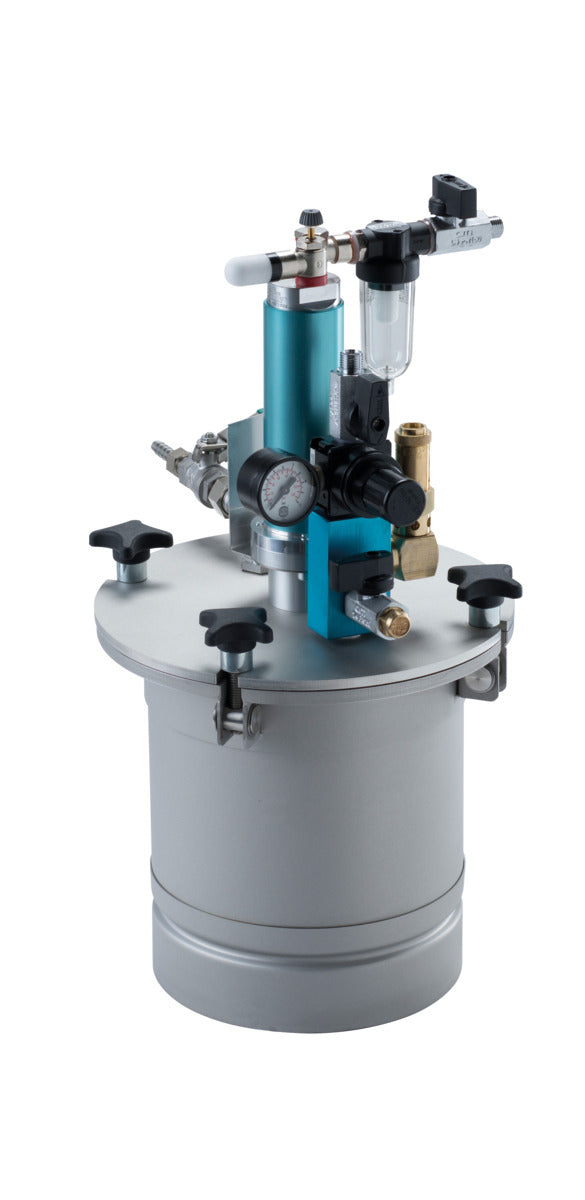

Article number: V4405160213
Manufacturer designation: LDG-5 6bar DRW 1oA VA
Configuration: 6 bar, Pneumatic Agitator, 1 Upper Outlet
Technical data (LDG 5)
| Material | Stainless steel |
|---|---|
| Pressure range | 6 bar |
| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| Outlet optional | 1 upper outloet |
| 2 upper outlets | 1 lower outlet |
| Regulator optional | Single regulator |
| +2. regulator | +2. and 3. regulator |
| Material outlet (top/bottom) | 1/4" / 1/2" |
| Capacity (filling quantity/usable capacity) | 4.9 liters / 3.5 liters |
| Diameter (inside/outside) | 183mm / 243mm |
| Total height without agitator (upper / lower outlet) | 381mm / 414mm |
| Total height with manual agitator (upper / lower outlet) | 538mm / 568mm |
| Total height with pneumatic agitator (upper / lower outlet) | 388mm / 416mm |
