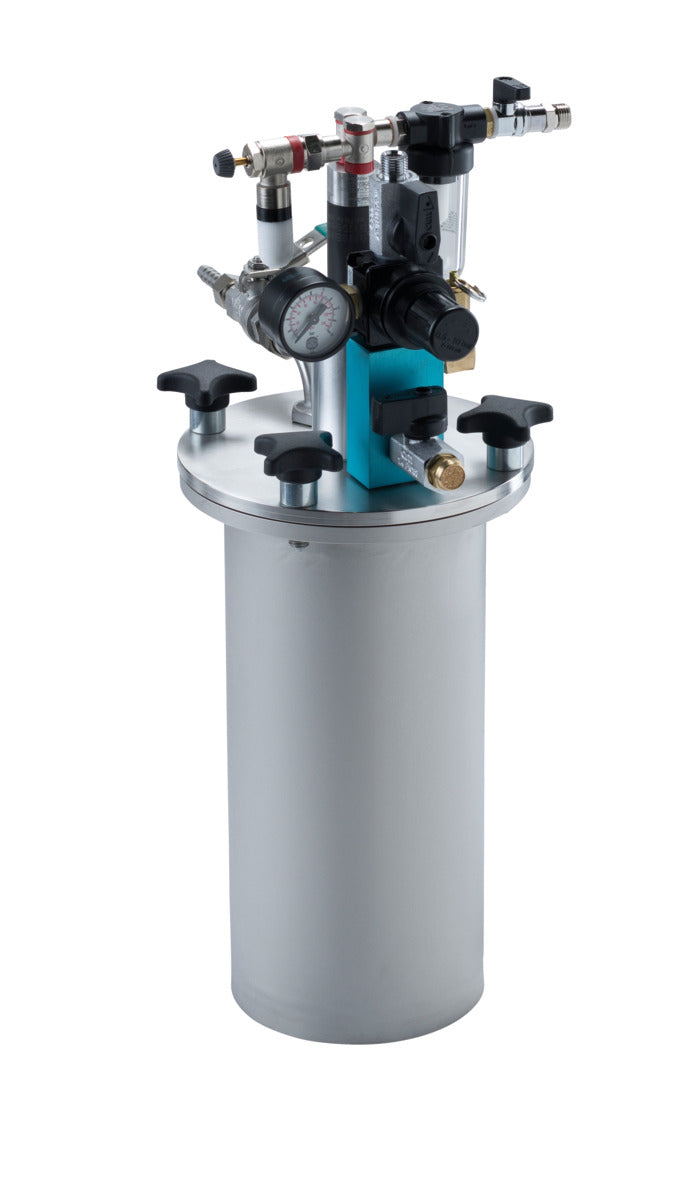

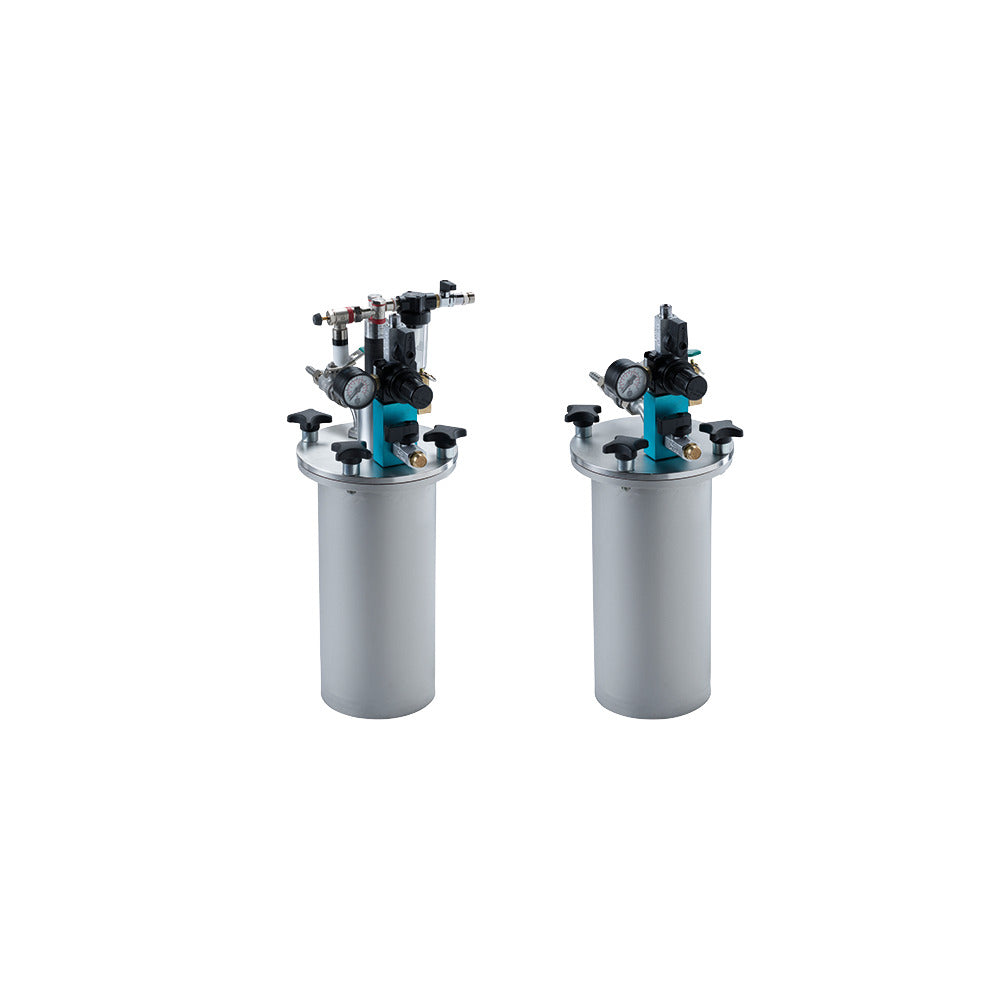

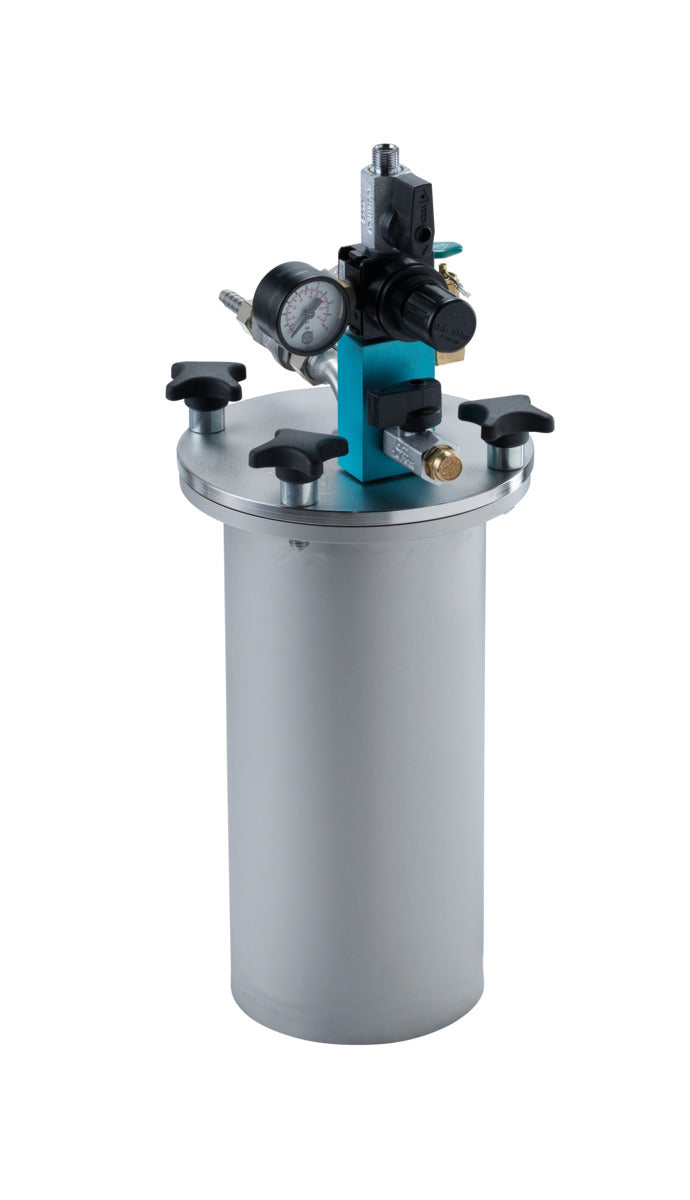

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4413160113
Manufacturer designation: MDG-3 6bar HRW 1oA SS
Configuration: 6 bar, Manual Agitator, 1 Upper Outlet
Technical data (MDG 3)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 3 bar / 6 bar |
| Agitator optional | without agitator |
| pneumatic agitator | Outlet optional |
| 1 upper outlet | 1 lower outlet |
| Regulator optional | single regulator |
| +2. regulator | Material outlet (top/bottom) |
| 1/4" / 1/4" | Capacity (filling quantity/usable capacity) |
| 3.2 liters / 2.5 liters | Diameter (inside/outside) |
| 125mm / 173mm | Total height without agitator (upper / lower outlet) |
| 454mm | Total height with pneumatic agitator (upper / lower outlet) |
