Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.

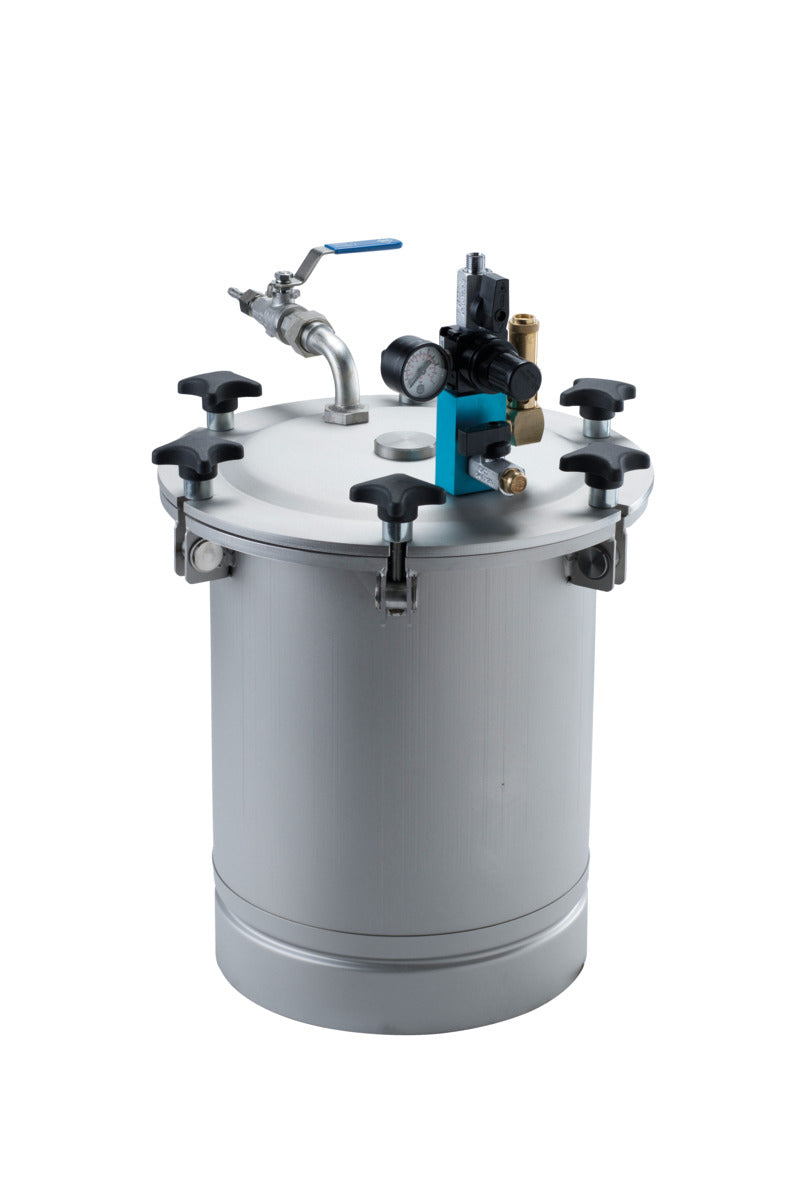

Article number: V4420165013
Manufacturer designation: LDG-20 6bar ORW 1oA 2Rgl VA
Configuration: 6 bar, Without Agitator, 1 Upper Outlet, 2 Regulators
Technical data (LDG 20)
| Material | Stainless steel |
|---|---|
| Pressure range | 6 bar |

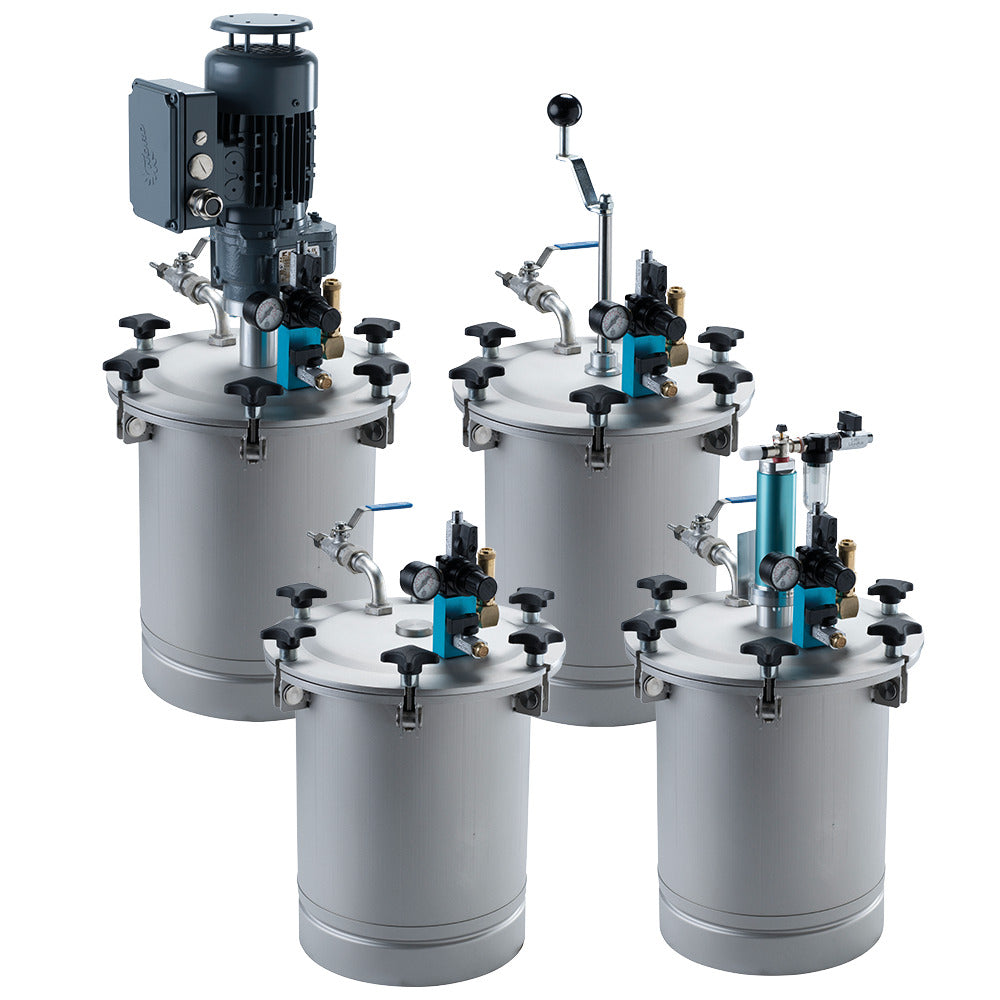

| Agitator optional | without agitator |

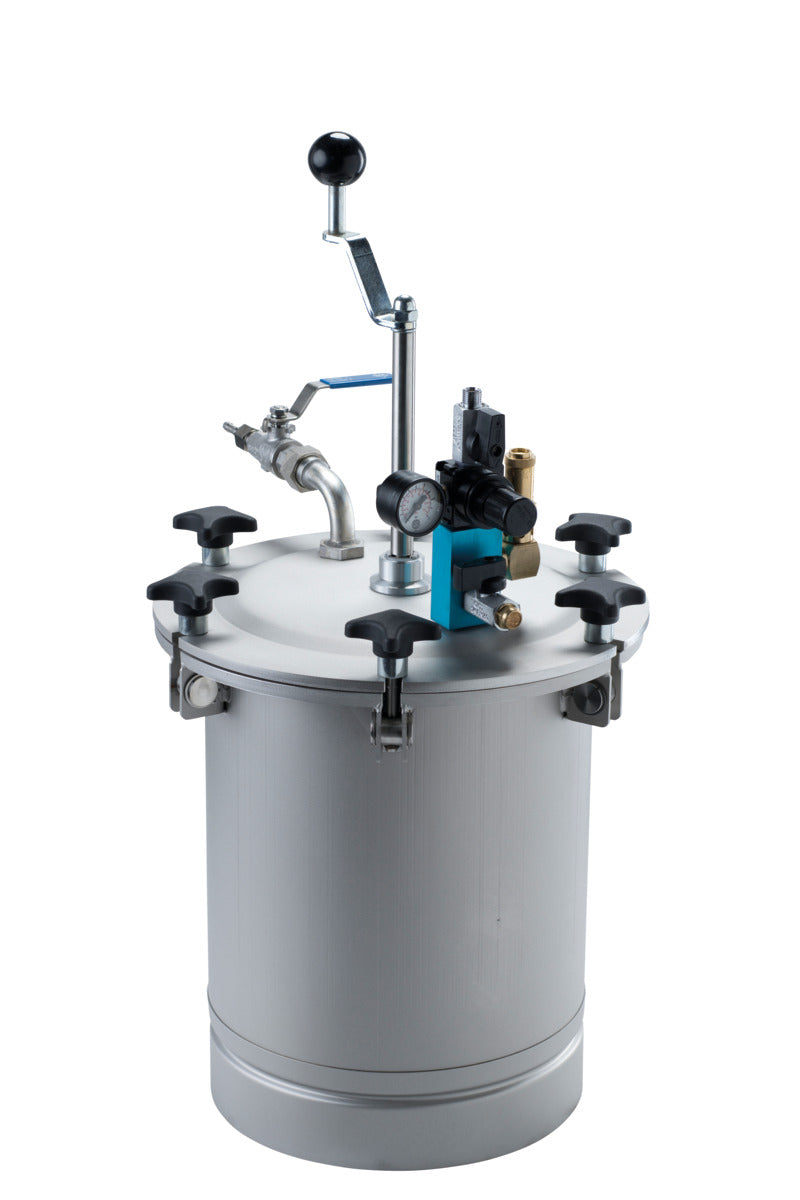

| manual agitator | pneumatic agitator |
| electric agitator | Outlet optional |
| 1 upper outloet | 2 upper outlets |
| 1 lower outlet | Regulator optional |
| Single regulator | +2. regulator |
| +2. and 3. regulator | Material outlet (top/bottom) |
| 3/8" / 1" | Capacity (filling quantity/usable capacity) |
| 18.0 liters / 15.0 liters | Diameter (inside/outside) |
| 269mm / 344mm | Total height without agitator (upper / lower outlet) |
| 524mm / 604mm | Total height with manual agitator (upper / lower outlet) |
| 681mm / 757mm | Total height with pneumatic agitator (upper / lower outlet) |
| 604mm / 680mm | Total height with electric agitator (upper / lower outlet) |
