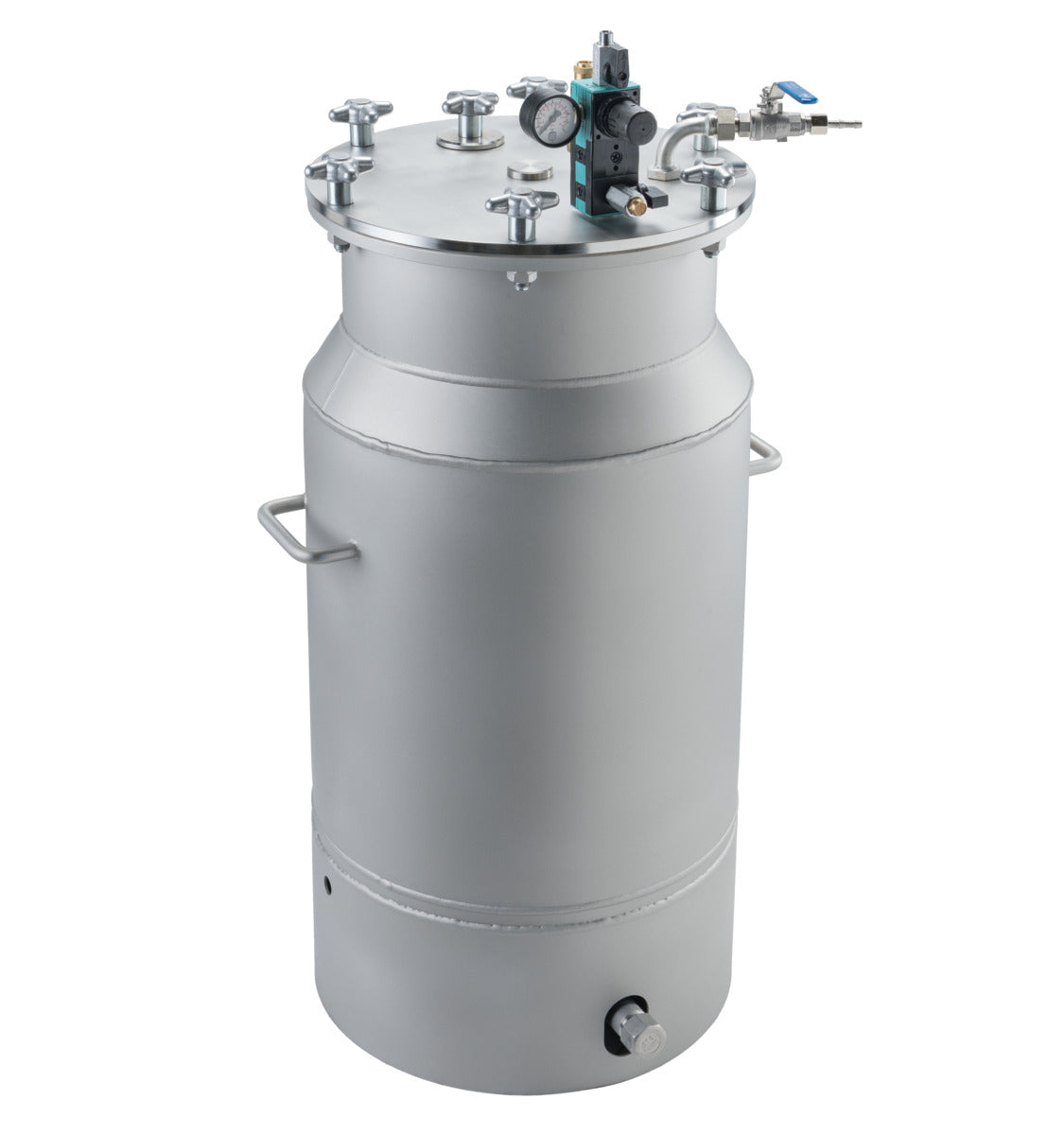

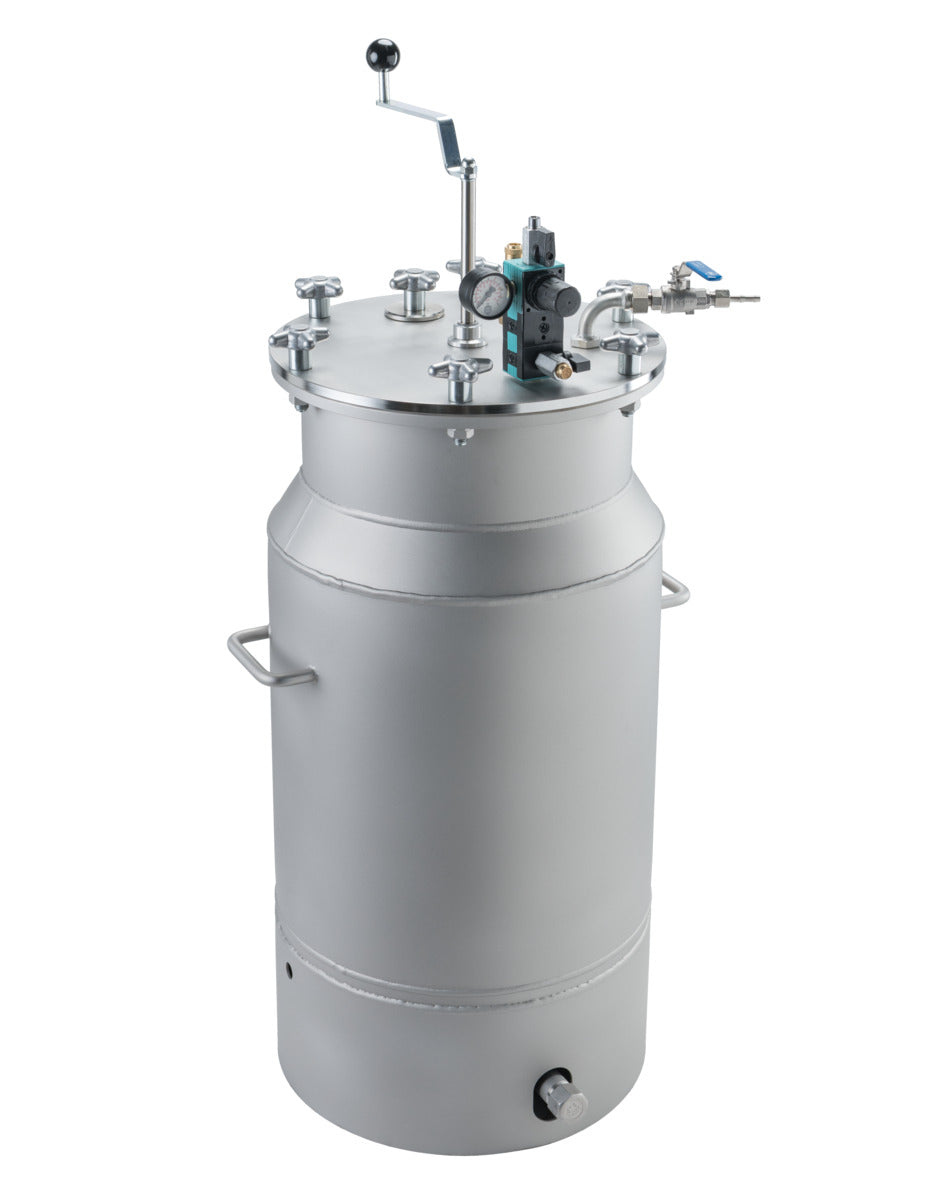

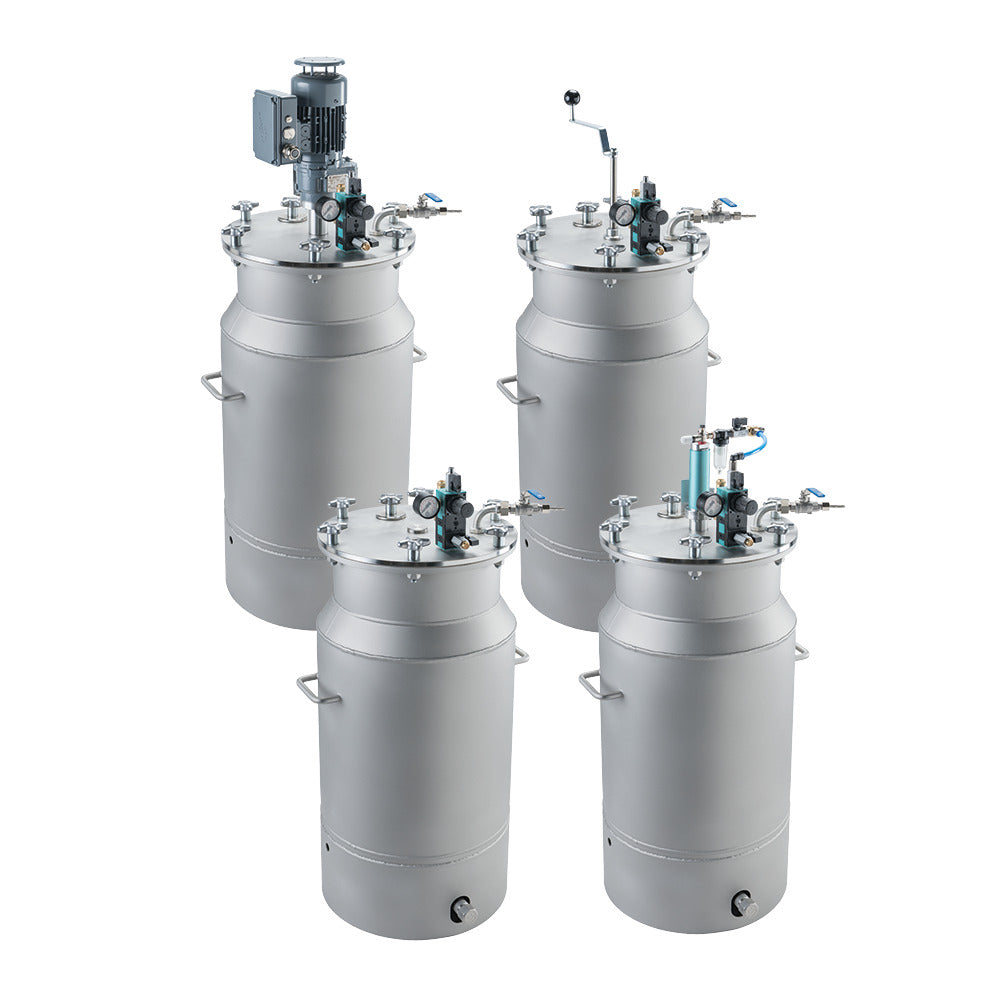

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4422009663
Manufacturer designation: MDG-90 riser pipe, vertical VA connectio
Technical data (MDG 90)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 2 bar / 6 bar |
| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| electric agitator | Outlet optional |
| 1 upper outlet | 2 upper outlets |
| 1 lower outlet | Regulator optional |
| single regulator | +2. regulator |
| +2. and 3. regulator | precision pressure regulator |
| Material outlet (top/bottom) | 3/8" / 1" |
| Capacity (filling quantity/usable capacity) | 107.0 liters / 90.0 liters |
| Diameter (inside/outside) | 442mm / 456mm |
| Total height without agitator (upper / lower outlet) | 1064mm |
| Total height with manual agitator (upper / lower outlet) | 1213mm |
| Total height with pneumatic agitator (upper / lower outlet) | 1134mm |
| Total height with electric agitator (upper / lower outlet) | 1280mm |
