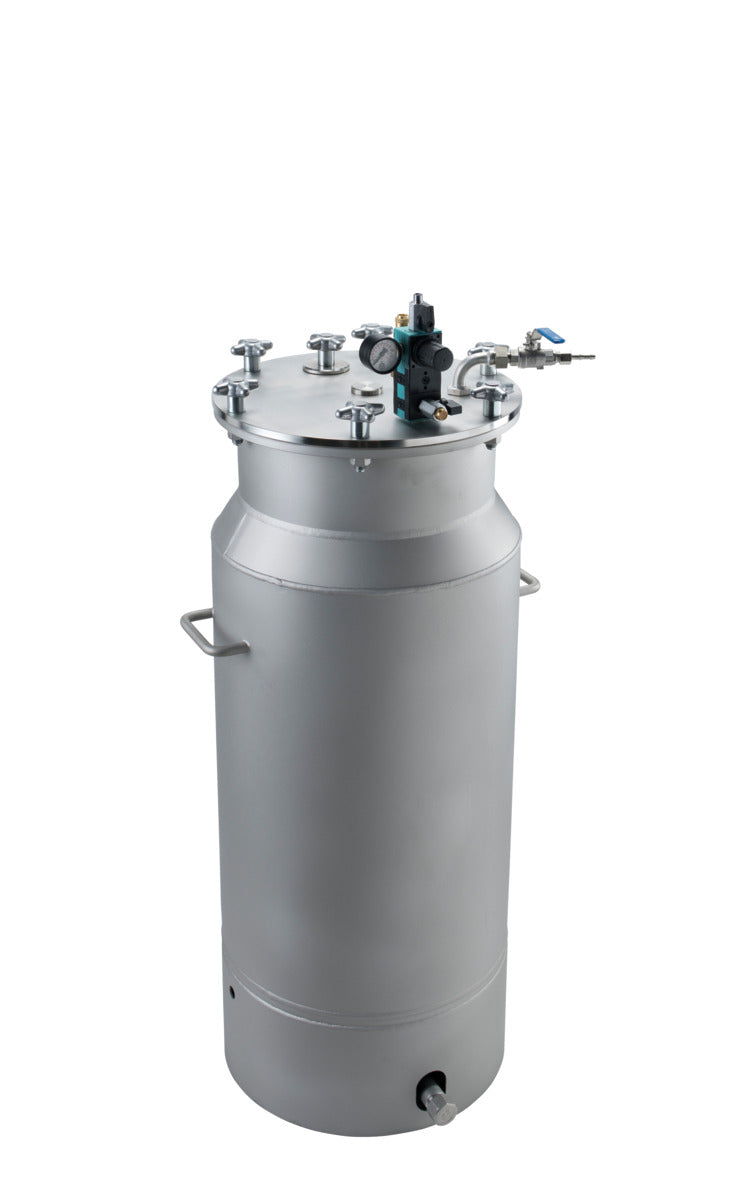

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4427260213
Manufacturer designation: MDG-120 6bar DRW 1uA SS

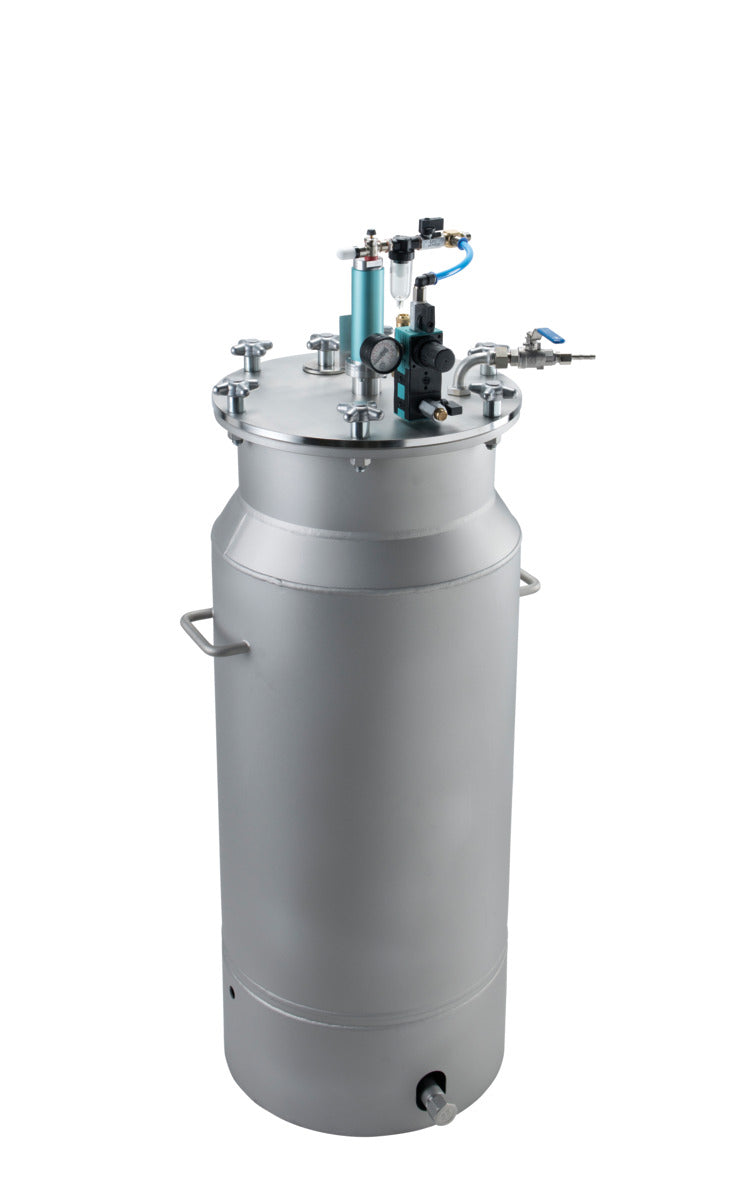

Configuration: 6 bar, Pneumatic Agitator, 1 Lower Outlet
Technical data (MDG 120)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 1.5 bar / 6 bar |

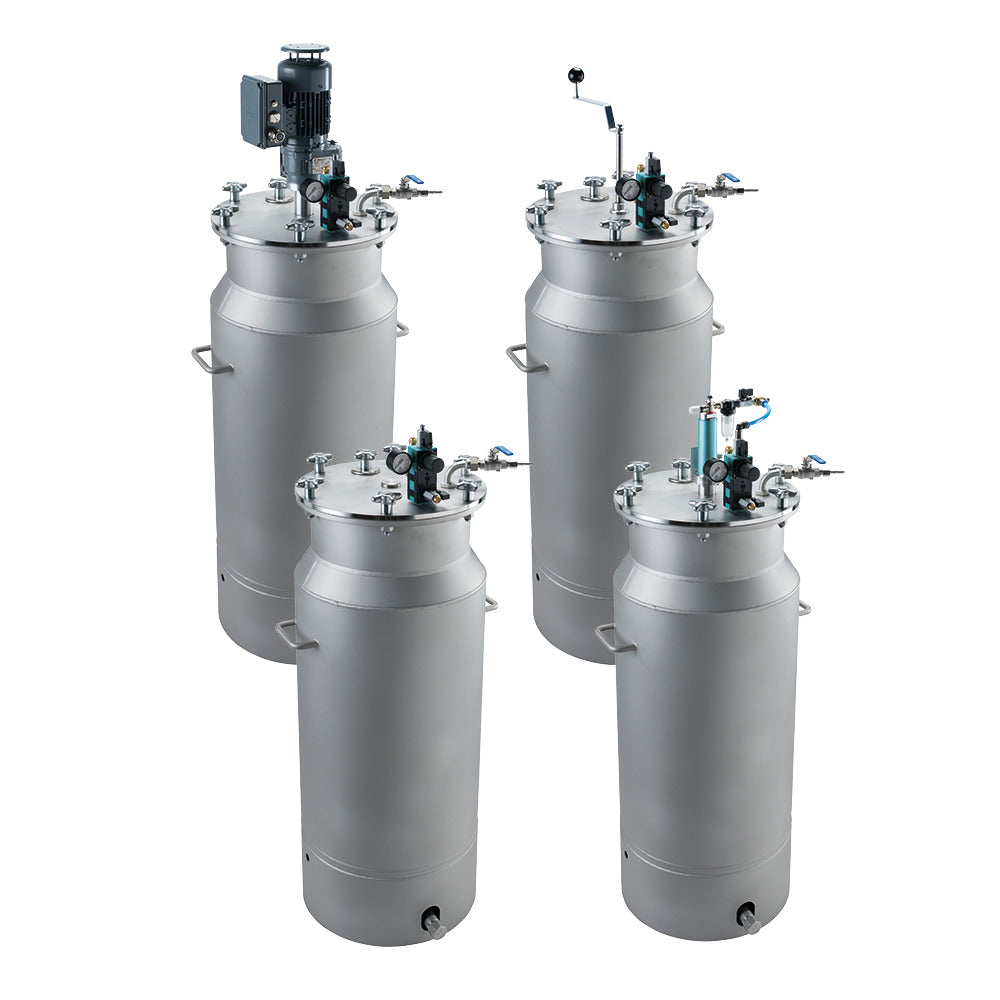

| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| electric agitator | Outlet optional |
| 1 upper outlet | 2 upper outlets |
| 1 lower outlet | Regulator optional |
| single regulator | +2. regulator |
| +2. and 3. regulator | precision pressure regulator |
| Material outlet (top/bottom) | 3/8" / 1" |
| Capacity (filling quantity/usable capacity) | 138.0 liters / 120.0 liters |
| Diameter (inside/outside) | 442mm / 456mm |
| Total height without agitator (upper / lower outlet) | 1263mm |
| Total height with manual agitator (upper / lower outlet) | 1413mm |
| Total height with pneumatic agitator (upper / lower outlet) | 1336mm |
| Total height with electric agitator (upper / lower outlet) | 1480mm |
