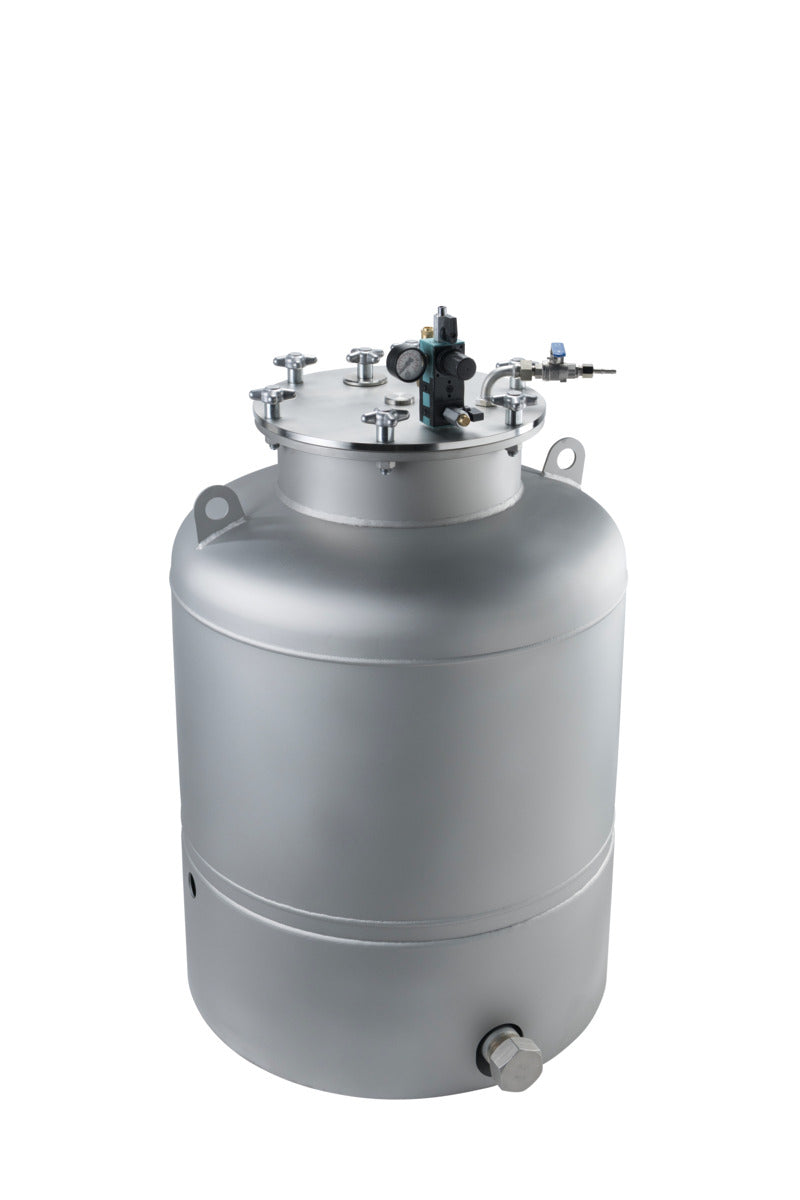

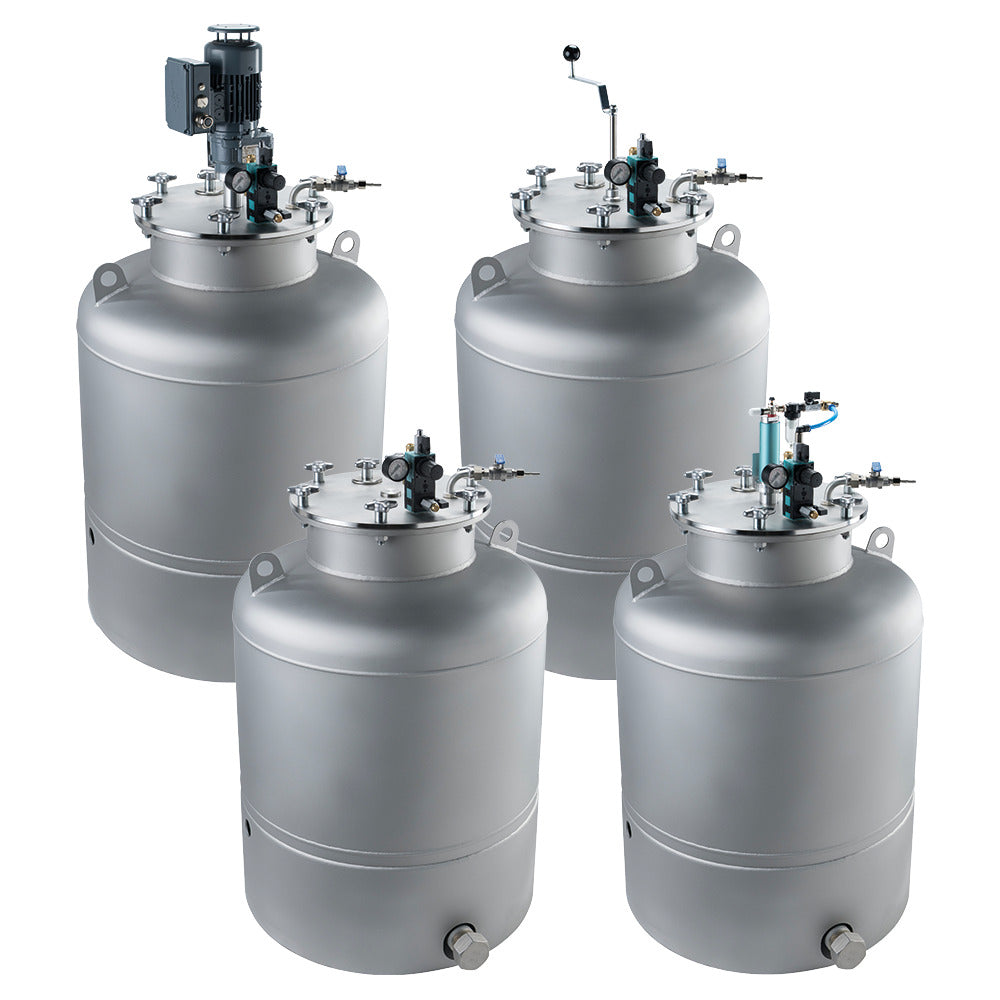

Made of high-quality stainless steel, the material pressure tanks offer pulsation-free conveying and storage of a wide range of materials with high corrosion resistance and a long service life. The solid construction ensures reliable performance in demanding production environments. Our modular containers are flexibly adaptable and enable optimal use through configurable design. Lightweight tanks with thin-walled construction are easy to handle, robust and user-friendly thanks to hinged cross-handle latches. Discover the versatility and quality of our material pressure tanks for efficient material processing in your production.
Article number: V4428160313
Manufacturer designation: MDG-250 6bar ERW 1oA

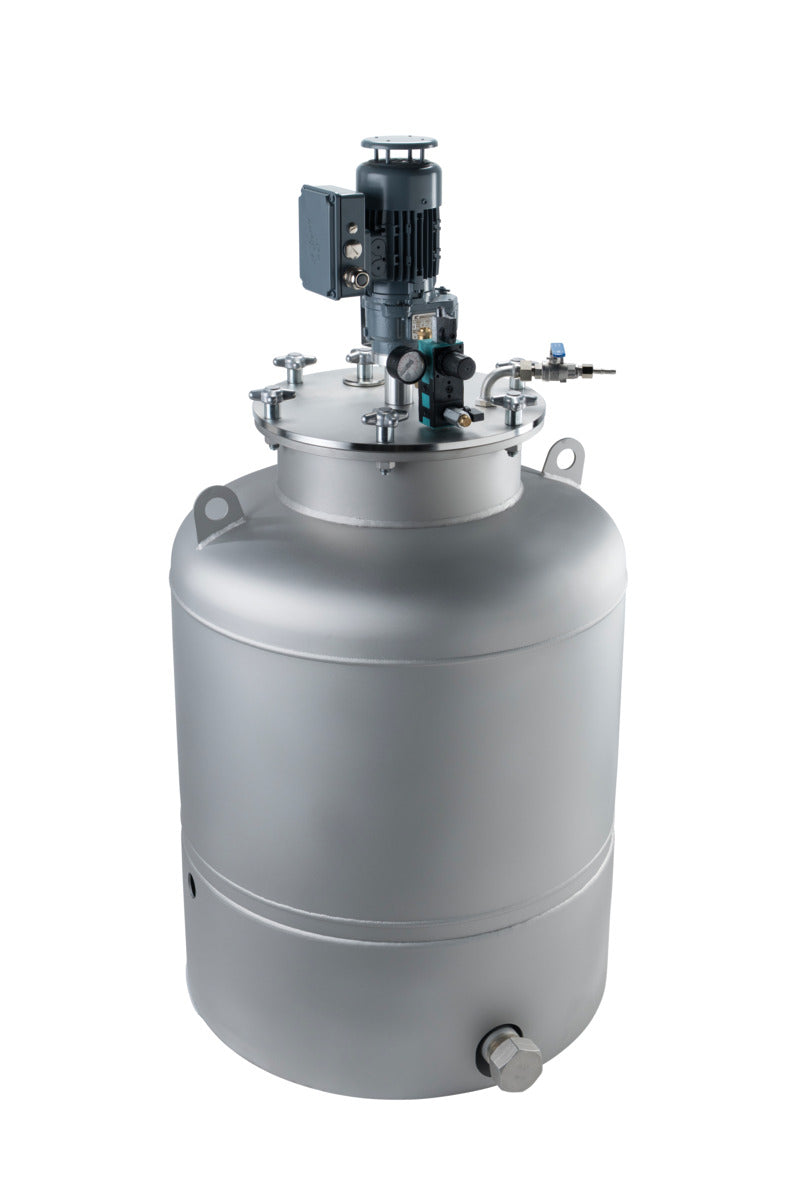

Configuration: 6 bar, Electric Agitator, 1 Upper Outlet
Technical data (MDG 250)
| Material | Stainless steel |
|---|---|
| Pressure range | vacuum / 6 bar |
| Agitator optional | without agitator |
| manual agitator | pneumatic agitator |
| Outlet optional | 1 upper outlet |
| 2 upper outlets | 1 lower outlet |
| Regulator optional | single regulator |
| +2. regulator | +2. and 3. regulator |
| precision pressure regulator | Material outlet (top/bottom) |
| 3/8" / 1" | Capacity (filling quantity/usable capacity) |
| 251.0 liters / 248.0 liters | Diameter (inside/outside) |
| 692mm / 706mm | Total height without agitator (upper / lower outlet) |
| 1152mm | Total height with manual agitator (upper / lower outlet) |
| 1304mm | Total height with pneumatic agitator (upper / lower outlet) |
| 1227mm | Total height with electric agitator (upper / lower outlet) |
