Description The WIWA series 410.09 is designed for applying epoxy and water-based thick-film materials and mortars, including cement mortar, cement-bound fire protection materials, cement slurry, and filled vinyl esters. Unlike screw pumps, WIWA thick-film pumps can be flushed and cleaned using diluting agents, making them a top choice for transferring epoxy-based materials.
Built with quick-release couplings and minimal components, the unit allows for rapid disassembly, cleaning, and reassembly—significantly reducing downtime on construction sites. The feed funnel is easily removable for swift maintenance. Designed with extra-large flow passages and a slow pumping speed, the pump experiences minimal wear even when transferring large volumes of material.
Fields of Application
-
Decks on ships and ferries
-
Concrete and building sanitation
-
Sealing of cellars (basements)
-
Fire protection
Basic Equipment Included
-

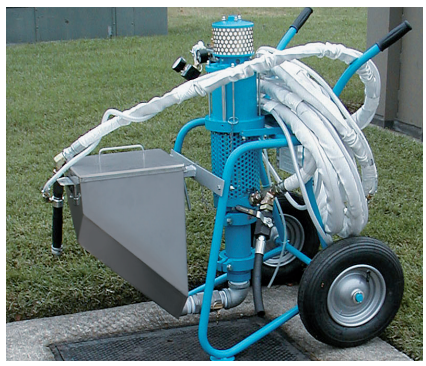

Pump with carriage
-
Quick release couplings
-
25 l (6.5 Gal) funnel with cover
Accessory Kit Included
-
10.5 m (35') hose package in a protective hose
-

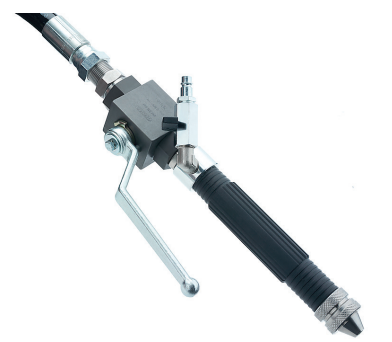

Spray pipe with air atomizer
-
8.5 mm (5/16") nozzle (other nozzle sizes available on request)
Technical Specifications
| Specification | Value |
| Order No. | 0653609 |
| Model | WIWA 410.09 |
| Pressure Ratio | 9:1 |
| Max. Fluid Pressure | 72 bar (1044 psi) |
| Output per Cycle | 410 cm³ (14 fl.oz) |
| Output at 60 Cycles | 24.6 ltr. (6.5 gal.) |
| Air Motor Plate Diameter | 140 mm (5.5 in.) |
| Stroke Length | 120 mm (4.7 in.) |
| Max. Inbound Air Pressure | 8 bar (116 psi) |
| Min. Recommended Air Compressor Rating | 3000 ltr./min (100 cfm) |
| Inbound Air Port (BSPP) | 1/2" |
| Inbound Fluid Fitting (BSPP) | 2" |
| Outbound Fluid Port (BSPP) | 1" |
| Accessory Kit Order No. | 0653594 |
