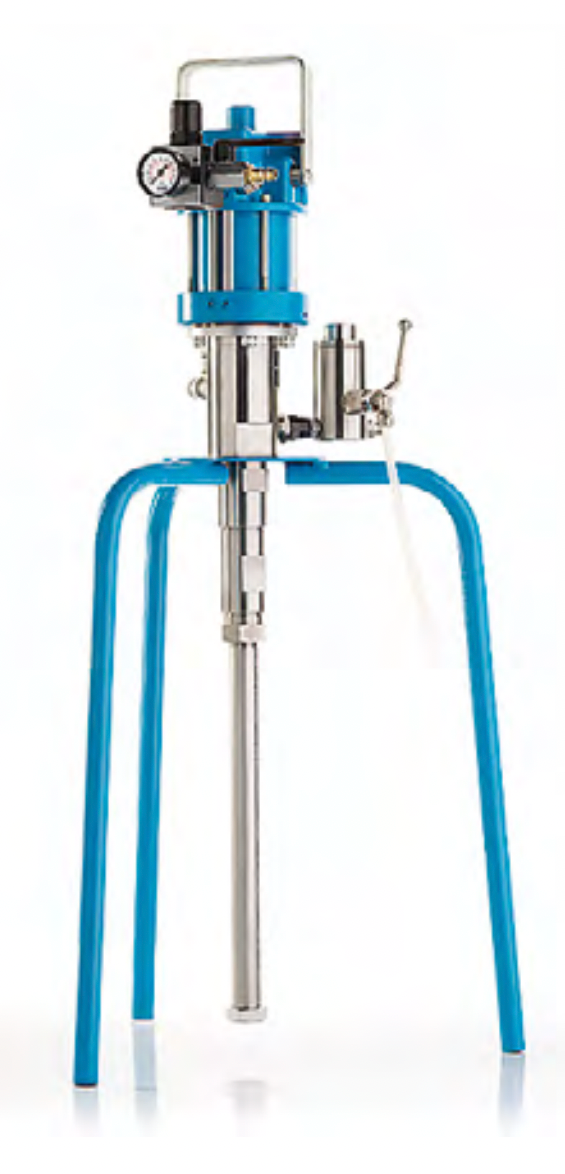

WIWA PROFIT – proven technology that meets all requirements for everyday work
The compact dimensions of the high performance units in the WIWA PROFIT series makes them ideal for flexible use by trade and industry. As all models come in both Airless and Air Combi versions, the right technology is available for nearly all areas of application. Above average durability and trouble free performance are guaranteed by the double pistons, carbide faced valve plates and stainless steel valve balls as well as a dual filter system comprising suction and high pressure filters. A closed lubrication chamber separates the air motor and the material pump. The lubricant prevents paint from drying onto the piston rod and protects the packings. The PROFIT units with paint feed funnels are ideal for repairs and touch up work, as well as other activities in which only small material quantities should be processed. All units are available in rust and acid proof versions and therefore suitable for use with water based coatings.
THE ADVANTAGES OF THE PROFIT SERIES
- Ideal for trade and industry
- Portable for flexible use anywhere
- Pulsation is barely noticeable thanks to the high stroke changeover speed
- Spring supported, self adjusting packings reduce wear and tear
- Heavy duty housing and a new seal system further improve safety
- Quicker and simpler maintenance and assembly thanks to direct threading and wrench flats
- As Airless spraying unit: robust an handy for efficient painting and coating
- As Air Combi finishing system for top quality, even finishes
DESIGN FEATURES OF THE PROFIT SERIES
Air motor
1. Pulsation is barely noticeable thanks to the high stroke changeover speed.
2. Low number of components make the motor easy to assemble and disassemble.
3. Pressure ratio can be varied by changing the air motor piston diameter.
Lubrication chamber
4. A closed lubrication chamber separates the air motor and the material pump. The closed design prevents foreign objects such as blasting material from entering the pump system from the outside. The lubricant also prevents paint from drying onto the piston rod and protects the packings.
Material pump
Less pressure loss even with highly viscous materials due to large bores and voluminous material passages in the bottom valve.
5. Precision guides ensure simple and exact alignment of components and thus less wear and tear.
6. Better flushing due to short packing retention springs and large fluid passages.
7. Sealing rings located in front of the threads prevent the threads from sticking and make disassembly easier.
8. Pump components are quick to assemble and disassemble as they are simply screwed together
THE AREAS OF APPLICATION OF THE PROFIT SERIES
• Carpentry shops
• Furniture industry
• Paint and finishing shops
• Machine and automotive construction
Model | 4233 |
Max. Fluid Pressure (psi) | 3828 |
Output per Cycle (ccm) | 27 |
Flow Rate at 60 cpm (gpm) | 0.43 |
Max. output |
4.2 l/min |
Pressure ratio |
33:1 |
Pump capacity per double stroke | 27 cm3 |
Max. air inlet pressure (psi) | 116 |
Max. operating pressure (psi) |
3828 |
Piston diameter of the air motor |
85 mm |
Piston stroke of the air motor | 75 mm |
Version | Rust and acid proof version (RS) |
Includes | Pump, Mount as Described, High-Pressure Filter, Air Regulator, Throat Seal Liquid, Manual, 1) 25 ft. Combined Air (1/4”) / Fluid (3/16”) Hose, (1) WIWA 2100 Air-Assist Spray Gun, (1) Tip and Housing |
