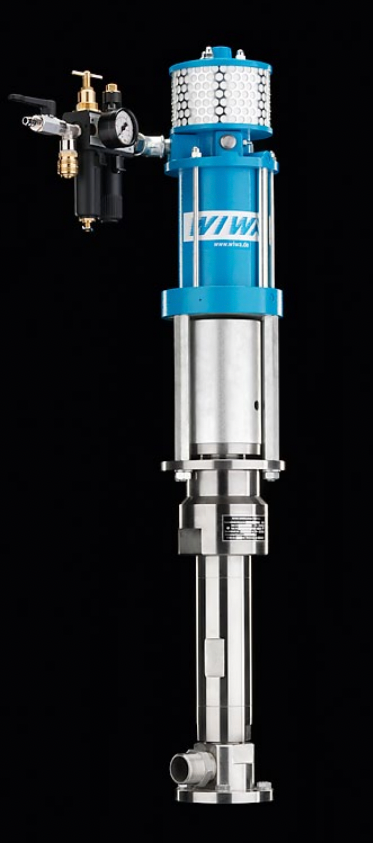

These new low pressure pumps still use the well proven WIWA compressed air motors. The transfer pumps differ from their predecessors by the following features: Revolving piston gland packing with four V-sleeves, easy assembly and disassembly, low weight, the piston is simply hooked in, as with the Airless paint spraying units.
Fields of Application
• Paint supply
• Conventional spraying systems
• Paint circulation systems and filling stations in industry and craft trade
The application possibilities for WIWA low pressure pumps are so manifold, that we will always be available for you to advice you down to the last detail.
Lacquers and paints, water varnishes, solvents, oils, greases, separating agents, scouring agents, glues, plastisols, sealing compounds, bitumen, epoxy materials, underseals, roof coating and insulating materials, noise proofing material and other highly viscous materials with a high solids content.
|Version||N-L = standard version (normal steel) - long
(for 200 l (52.83 US gal) drum and standpipe)
|Max. air inlet pressure||116 PSI|
|Max. operating pressure||1102 PSI|
|Output per cycle||12 fl.oz|
|Output @ 60 cycles||5.9 gal|
|Dimension (approx) inches||78.74 x 370.47|
