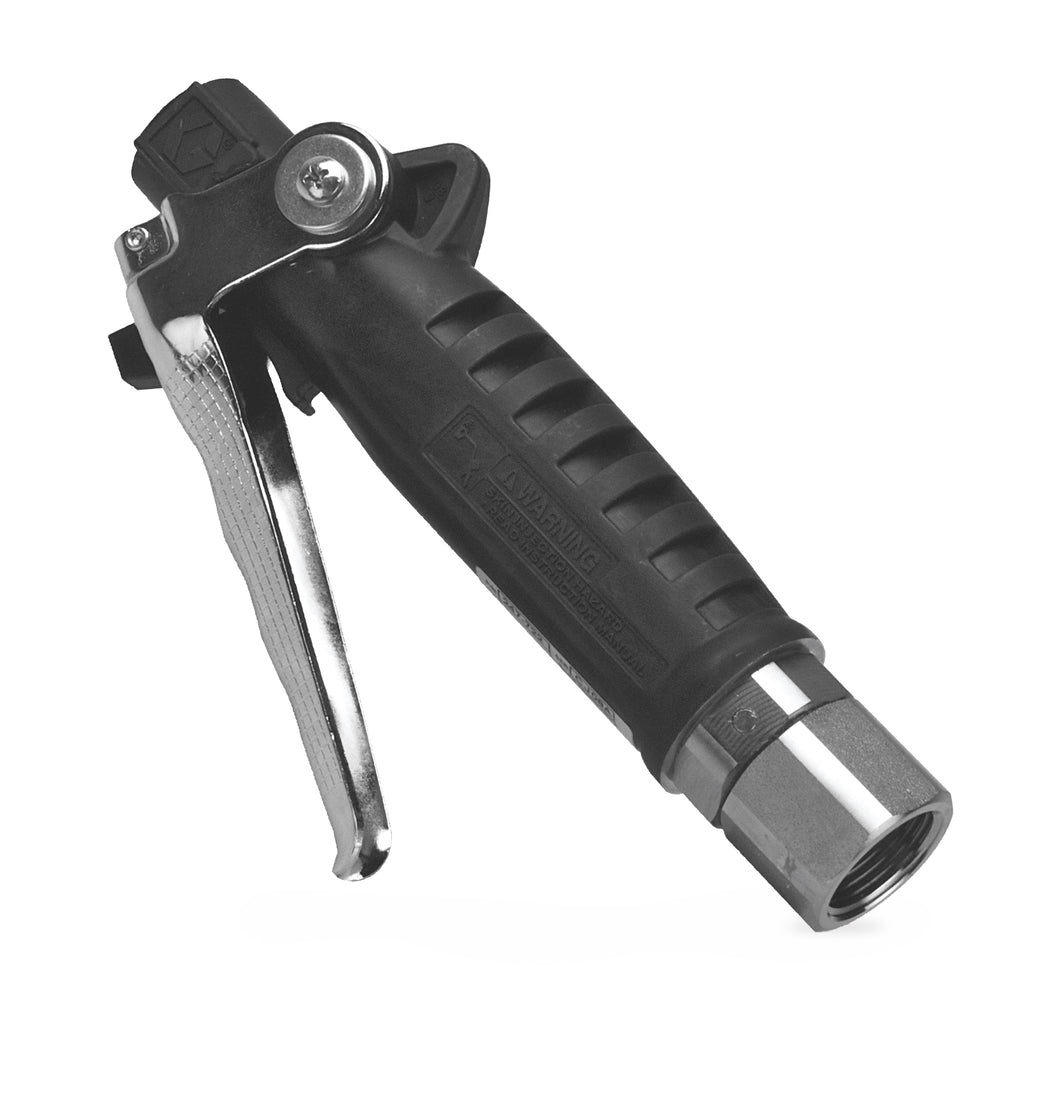

XDV20 Bare Control Valve - 3/4 in. (19 mm) Inlet - NPT

XDV20 Bare Control Valve - 3/4 in. (19 mm) Inlet - NPT

Regular price
$243.14
Sale price
$243.14
Quantity must be 1 or more


For standard and heavy-duty applications, both indoor and outdoor, the XDV20 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 20 gpm (75.7 lpm).

High-flow, non-metered oil dispense for Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.

  • Lock-on/Lock-off trigger allows hands free operation
  • Sturdy cast body designed for use in tough environments
  • Inlet 3/4 in. NPT with swivel
  • Bare valve without nozzle or extension
UPC Product: 00633955316652
Family Code: FAMVOL
Unit of Measure: EA
Height: 2.7 IN   |  6.858 CM
Length: 11.65 IN   |  29.591 CM
Width: 6.75 IN   |  17.145 CM
Volume: .123 FT3   |  .003 M3
Chargeable Weight: 1.95 LBS  | .88 KG

Technical Specifications

Compatible Material Oil, Antifreeze
Display Type N/A
Extension Type Bare
Inlet Size (cm) 1.905
Inlet Size (in) 3/4
Inlet Size (mm) 19.05
Inlet Thread Gender Female
Inlet Thread Type NPT
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Minimum Operating Temperature (°F) -40
Minimum Operating Temperature (°C) -40
Maximum Working Pressure (bar) 103.4
Maximum Working Pressure (kPa) 10340
Maximum Working Pressure (psi) 1500
Outlet Size (mm) 22.225
Outlet Size (in) 7/8
Outlet Size (cm) 2.2225
Outlet Thread Gender Female
Outlet Thread Type Straight Thread O-Ring
Trigger Lock Locking
Weight (lb) 0.4
Weight (kg) 0.18
Wetted Material Aluminum, Stainless Steel, CS, Acetal, Nitrile Rubber, TPE
Dispense Type Manual
Recommended Environment Indoor, Outdoor
Type Non-Metered Dispense Valve
Valve Type Non-Metered
Model XDV20

;
