Model 8910UVA | Explosion Proof UVA Inspection Light (Rechargeable & Battery-Powered)
The UVA BODYLight™ is probably the most durable and shockproof UVA inspection light in the world today. Built tough for any “heavy duty” environment. Tested & dropped multiple times from 20ft and it will still works! [watch the video]. In a tough environment such as non-destructive testing, you want the best NDT equipment possible to avoid disruptions.

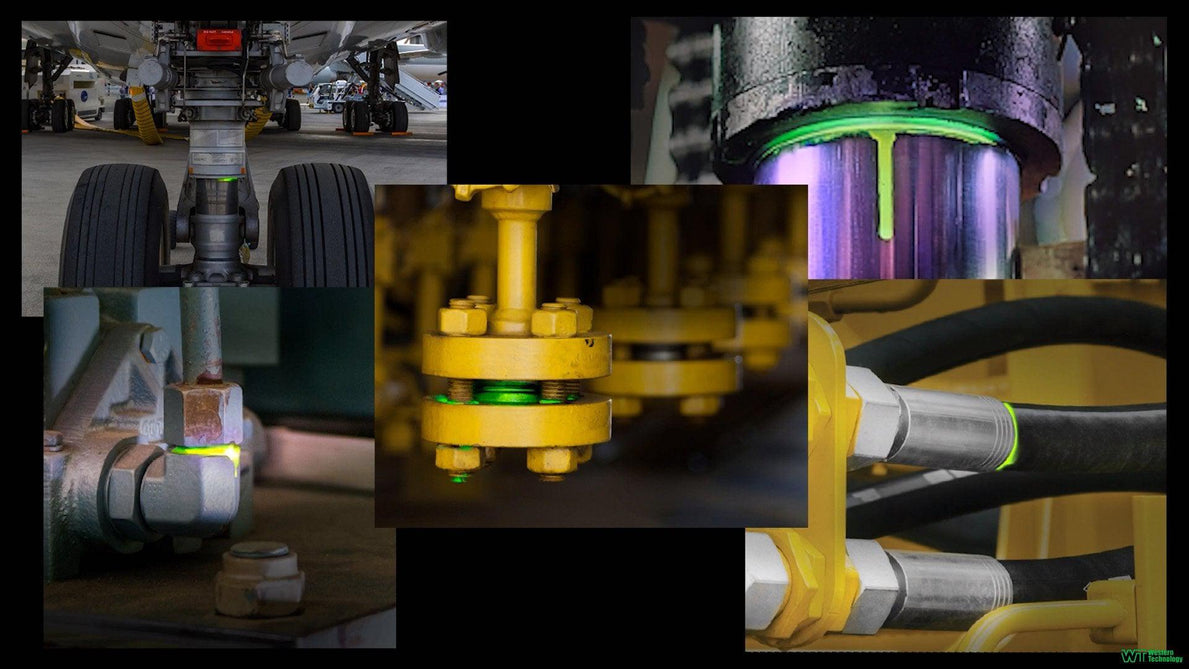

UVA BODYLight™ is certified to construction requirements under UL 844 for usage in Class I & II, Division 1 & 2 explosion proof environments. Further, the 365nm UV emission from this version of the BODYLight™ is compliant with standards ASTM E3022, ASTM E1444, ISO 3059, and Rolls-Royce RRES 90061. Great for NDI / NDT testing & inspections. Common applications include aeronautical, marine and industrial maintenance and manufacturing inspections. Detect cracks, leaks, FOD, microscopic holes & defects.

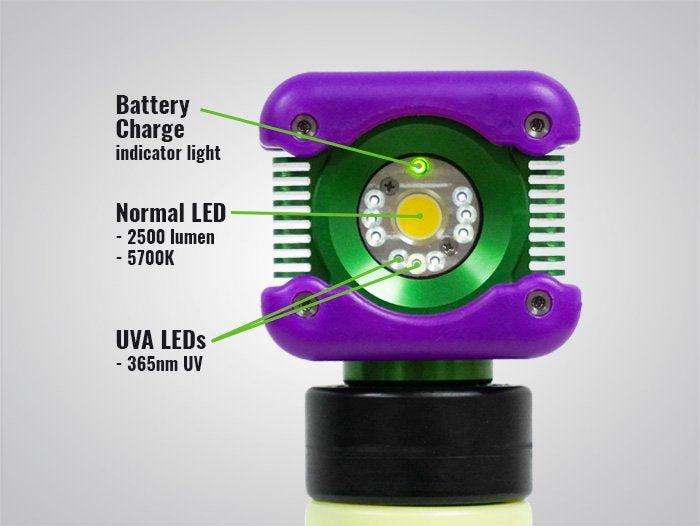

This explosion proof UVA inspection light supports normal visible light operation as well. With simple push button activation, you can easily switch from the 2500 Lumen LED mode to the UVA mode and back again.
Superior reliability and performance in both modes. Owner may order special “code” allowing only trained operator to switch into UVA mode. Code will be available in “Light Emission Report” accompanying sale of every UVA BODYLight™.
Note: UVA option requires operator wear PPE and confirmation required training has been completed. UVA 365nm can be hazardous to human health with extended unprotected exposure.
| *Certified Explosion Proof under UL844 by Intertek for use in: |
Class I, Div 1 & 2; Groups C & D; Light Head may be powered with a Power Supply Box for continuous use: |
|---|---|
| Suitable for Wet Location | |
| Battery Charger is Ordinary Location Listed: |
UL153 – Not Explosion Proof |
| Visible (White Light) Mode | Emitter Type: |
LED COB (Chip on Board) |
| Visible (White Light) Mode | Light Output (Lumens): |
Glow (On/ Battery Check) |
| Visible (White Light) Mode | Run Time: |
Glow (On/ Battery Check): N/A |
| Projection Type: |
Wide Floodlight Projection |
| UVA Mode | Emitter Type: |
UVA Wavelength: 365nm peak |
| UVA Mode | Output Modes: |
Glow (On/ Battery Check) |
| UVA Mode | Run Time: |
Glow (On/ Battery Check): N/A |
| UVA Activation Code: |
May be programmed with a code to activate/deactivate UVA function |
| Housing/Material: |
Machined out of Solid Blocks of 6061-T6 Aluminum |
| Dimensions: |
3.67"L x 2.97"W x 7.58"H x Ø2.67" |
| Weight: |
Light head: 1.90lbs |
| Battery-Powered: |
Rechargeable , Li-ion (Approved for Shipping) |
| Battery Pack Transportation Compliance: |

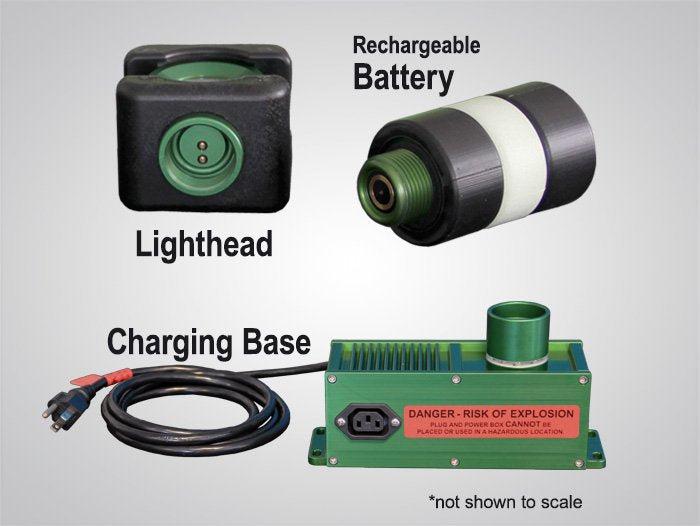

The BODYLight™ Battery Pack, consisting of lithium ion cells external to the Explosion Proof Canister, was examined for conformance to UN/DOT 38.3, Transportation Testing, by Intertek Laboratories. Conformance verification to the Standard for the Battery Pack was issued on November 16, 2017. (Report No.: 103190396CRT-002) The BODYLight™ Battery Pack passed all test procedures for Altitude Simulation, Thermal Test, Vibration, Shock, External Short Circuit, and Overcharge/Discharge, ensuring its compliance and safety for air and ground transportation. Further, with the Battery Pack encased in an Explosion Proof Canister, compliant to UL 62133, 153, and 844, provides even greater assurance of safety during transportation. Dr. Michael S. Kralik |
| Battery Pack: |
41NR19/66 |
| Charger Base Input: |
Frequency of Input: 120/240 VAC, 50/60 Hz, 1A |
| Charger Base Compliance: |
– UL 1310 |
| Country of origin: |
Designed & Manufactured in the USA |
