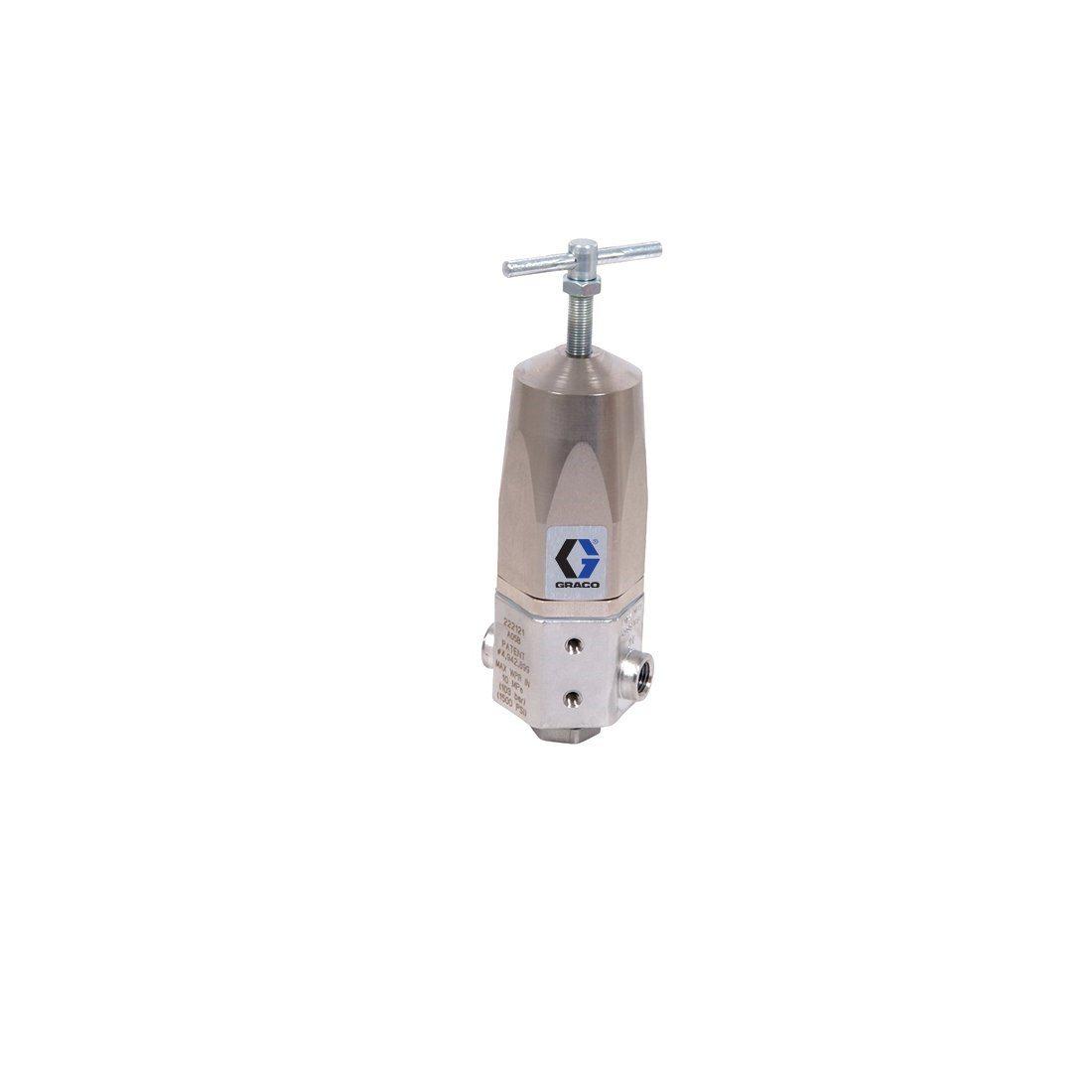

Mini High Pressure Corrosion Resistant Fluid Regulator, 1500 Max psi, 150-1200 psi Range, 1.0 GPM, SST, Spring Type, 1/4(f) x 1/4(m)
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Compact and lightweight design saves space and reduces payload for spray packages
- Pressure adjustment key with locking mechanism protects production settings
| Actuation Type | Spring |
|---|---|
| Includes | Regulator Only |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 1 |
| Maximum Regulated Pressure (psi) | 1200 |
| Maximum Viscosity (cP) | 500 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Minimum Regulated Pressure (psi) | 150 |
| Outlet Size (in) | 1/4 |
| Type | Fluid Regulator |
| Wetted Material | Stainless Steel |
