4" (2) Lamp Inside Access Paint Booth Light Fixture

4" (2) Lamp Inside Access Paint Booth Light Fixture

Regular price
$440.00
Sale price
$440.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

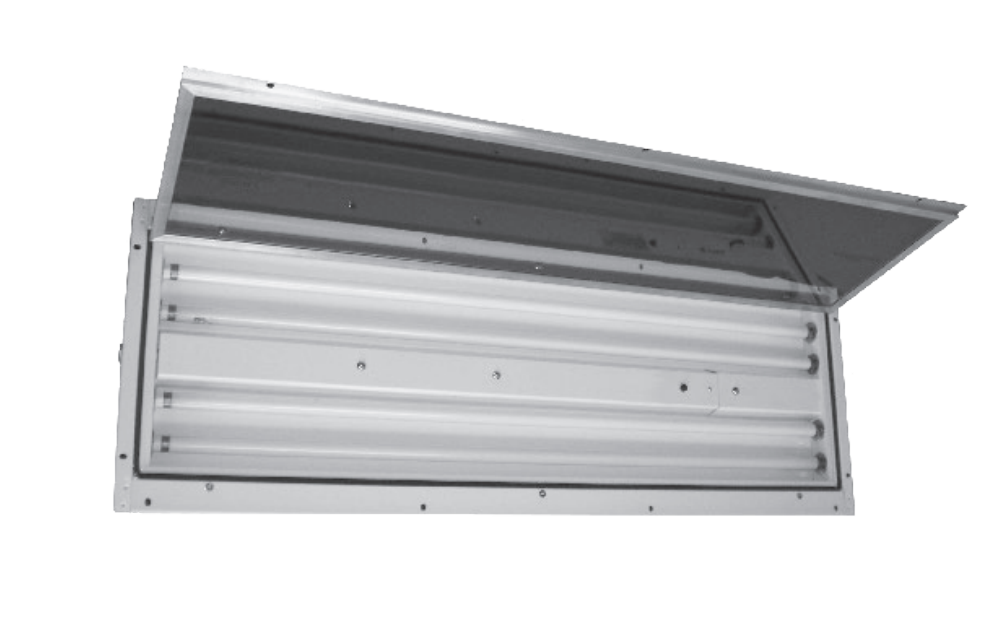

Four foot two lamp front access lamp fixture
  • Available in 32 watt T8
  • Available in 120, 277, & 347 volts - Multiple voltages available, consult factory
  • Available in high light output
  • Front / inside access for easy relamping
  • Listed for locations having deposits of readily combustible paint residues
  • Compact design (2 1/4" fixture depth) allows for mounting in an insulated panel
  • 20 gauge steel construction, coupled with a white baked enamel finish, creates a durable, highly reflective fixture
  • Clear tempered safety glass hinged door panel ensures a durable, long lasting seal against vapor & dust
  • For spray booth applications
  • Spring loaded lamp holders to reduce shock and vibration
  • Features a T8 Electronic Ballast for greater energy savings
  • Panel mount design provides a simple but efficient means of installation
  • Features an interlock switch to be wired in such a way as to disable paint spray equipment when front access door panel is opened
  • Application:Class I Division 2; Class II Division 2; Paint Spray Booth
  • ETL listed and Canada listed ETL-C
  • Class I, Division 2, Groups A, B, C & D
  • Class II, Division 2, Groups F & G
  • Meets NFPA-33 requirements for inside access
  • Bulbs sold separately

OPTIONS:
All Options Ordered Separately
EM: Emergency Battery Backup Ballast
5902: 8 Ft. 5-wire whip
Corner/Hip Mount #4714 (Available for the 390440J-3546 fixture ONLY)

SERIES  MODEL # DESCRIPTION OPTIONS
Slim Light
4 Ft.
390420-3613

T8 32W, 2 Lamp

EM: Battery/Driver Backup (90 Min.)
T8/T8HLO only
HSR: High Performance Specular Reflector
(440 T8 and T8HLO only)
HWR: High Performance White Reflector
(440 T8 and T8HLO only)
