Powermatic - 511 Panel Saw, 3HP 1PH 115V

Powermatic - 511 Panel Saw, 3HP 1PH 115V

Regular price
$9,029.00

See Lower Price in Cart

Quantity must be 1 or more
Request a Quote / More Information

Our sales team typically responds within 1 business day.



Feel free to call or chat with us for recommendations.

📦 Ships in 4-6 weeks, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Details

    Powermatic 1510007 Description

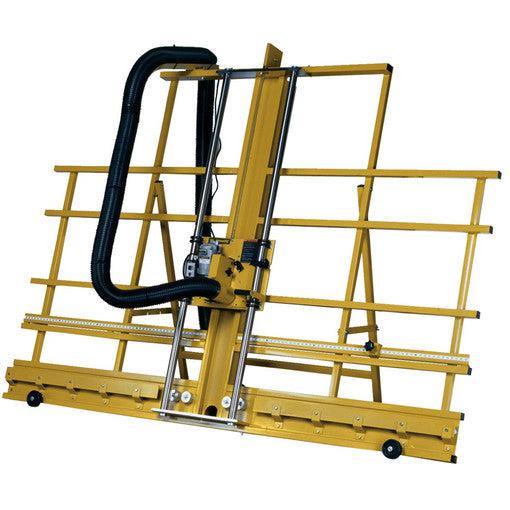

    If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the stainless steel rails. This Vertical Panel Saw features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5 feet tall. It also includes horizontal and vertical scales and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.

    Powermatic 1510007 Features

    • Stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide
    • Dual 4" dust ports with nylon brush surrounding blade for front and rear dust exhaust
    • True counterweight system keeps the carriage where you position it while loading stock
    • Solid aluminum rollers with outside support brackets for square cuts
    • Casters for easy mobility
    • 3HP Worm drive saw motor rotates in carriage to perform rip cuts
    • Heavy-duty welded one-piece steel frame prevents vibration, ensures solid support

    Powermatic 1510007 Specifications

    Maximum Cross Cut Length (In.) 62
    Motor Current (Amps) 13
    Dust Port Outside Diameter (In.) 4
    Style (Type) Vertical
    Motor Voltage (V.) 120 only
    Maximum Cut Thickness (In.) 1-1/2
    Maximum Rip Length (In.) Unlimited
    Blade Diameter (In.) 8
    Motor Power (HP) 3
    Motor Phase 1
    Arbor Diameter (In.) 5/8
