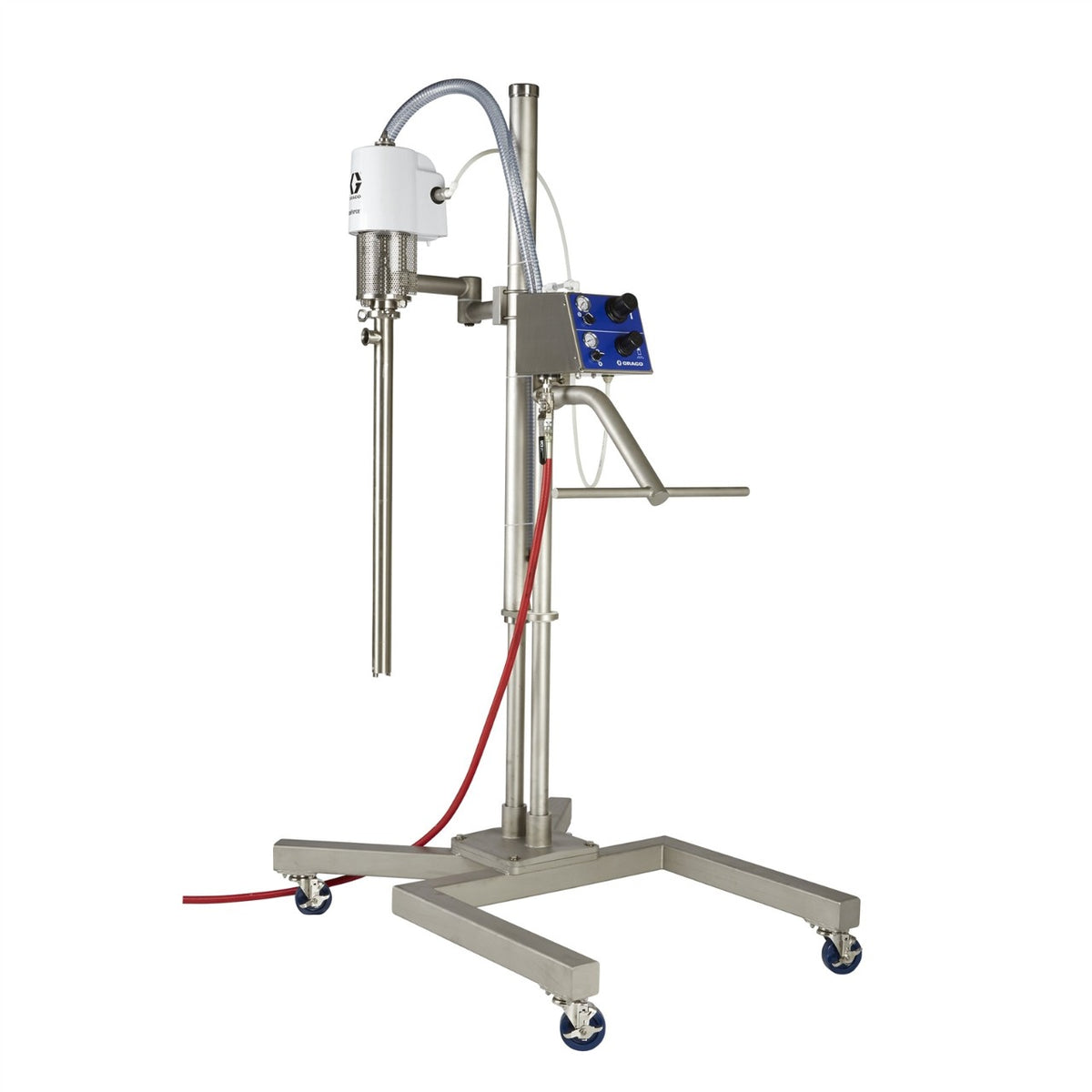

SaniForce 6:1 Ratio Piston Pump with Buna-N Packings for Sanitary Applications to Transfer Low to Medium Viscosity Fluids
Specifications
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Compatible Material | Food, Personal Care |
| Fluid Outlet Size (in) | 1-1/2 |
| For Use With | Food, Personal Care, Pharmaceutical |
| Includes | Cart and Handle, Buna-N Packings |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 4 |
| Maximum Intermittent Cycle Rate (CPM) | 60 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (psi) | 600 |
| Model | SaniForce |
| Portable | Portable |
| Pump Ratio | 6:1 |
| Seal Material | PTFE, FKM, UHMWPE |
| Standards Met | FDA Compliant Materials, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel, Buna-N, Polychloroprene, Nitrile Rubber, Nylon, UHMWPE |
| Air Inlet Size (mm) | 12.7 |
| Fluid Outlet Size (mm) | 38.1 |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Flow Rate (L/min) | 15.14 |
| Maximum Working Pressure (bar) | 41 |
| Maximum Working Pressure (kPa) | 4100 |
