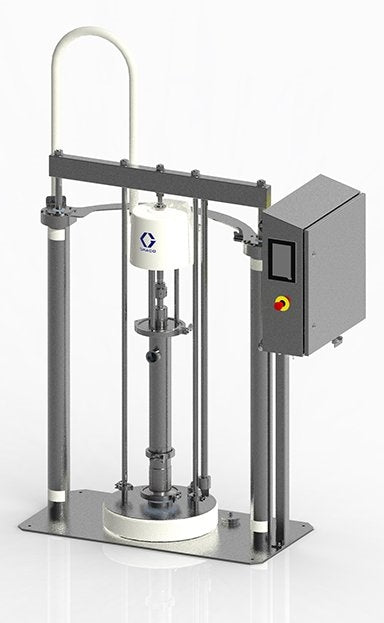

SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system is flexible enough to accommodate multiple drum shapes and sizes.
Features
- Reduce material waste with up to 99% material evacuation
- Improve worker ergonomics by eliminating hazards associated with scooping and dumping options
- Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates
- Self-priming and run dry pump capabilities ideal for container unloading applications
- Electronic controls for system automation of container evacuation and precise batch control with use of scale or flow meter
- Configurable systems to meet requirements of almost any ingredient unloading application
Specifications
| UPC Product | 755652792123 |
| Country of Origin | US |
| Height | 78 IN | 198.120 CM |
| Length | 35 IN | 88.900 CM |
| Width | 61.875 IN | 157.163 CM |
| Shipping Weight | 725 LBS | 328.854 KG |
| Plate | Inflatable Seal Concave Plate, Drum (20 in. seal for use with 21.5 in. to 23.25 in. drums) |
| Ram Material | Stainless Steel |
| Maximum Flow Rate (L/min) | 49.2 |
| Maximum Fluid Pressure (psi) | 410 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 90 |
| Maximum Working Pressure (psi) | 410 |
| Model | SaniForce 2.0 |
| Overall Depth (in) | 27.5 |
| Overall Width (in) | 57.5 |
| Series | Drum Unloader |
| Control Panel Type | Enclosed |
| Container Type | Drum |
| Compatible Drum Inside Diameter (in) | 21.5-23.25 |
