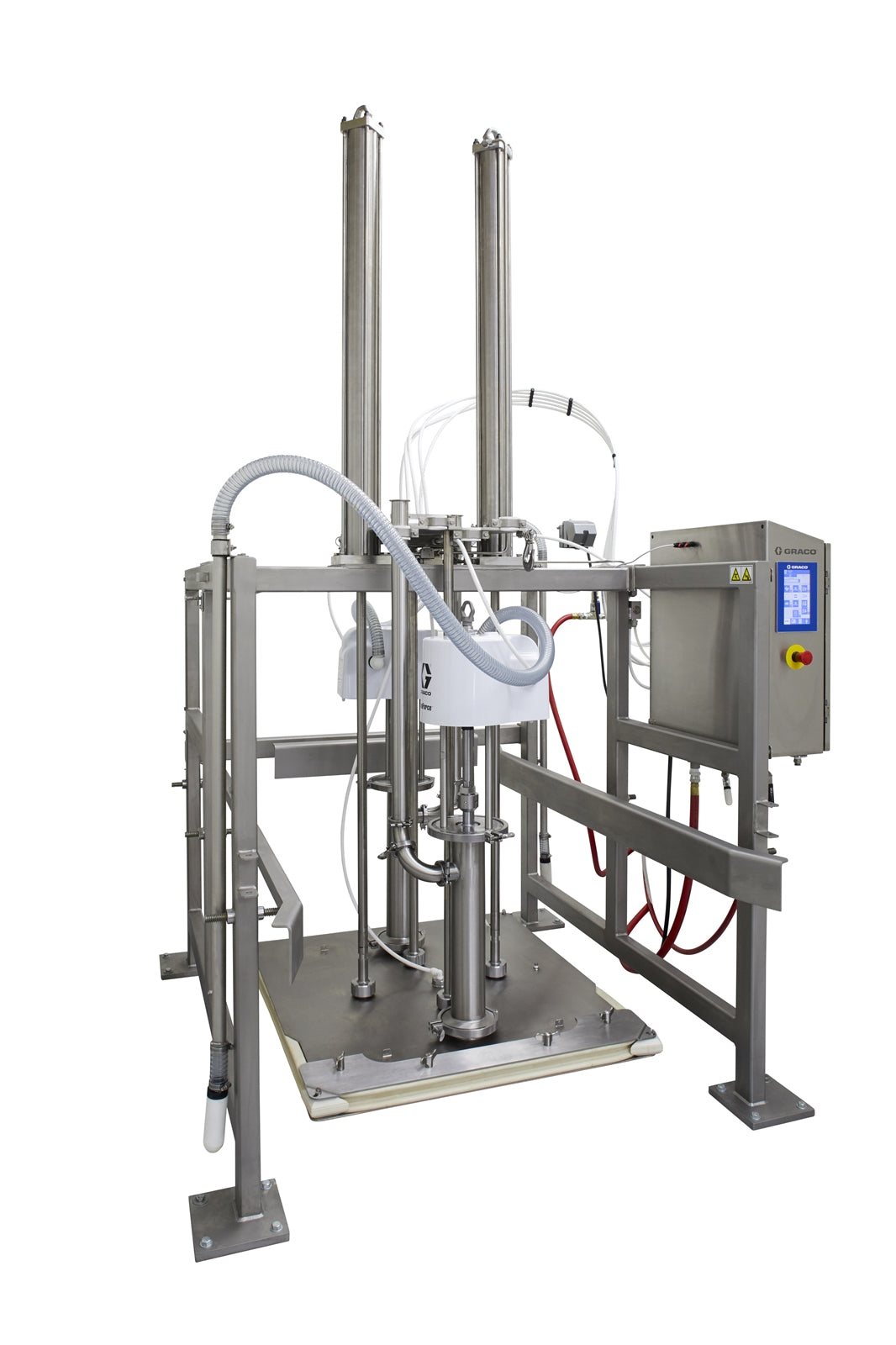

SaniForce BES System, 2-pump, 5:1 PP, Buckhorn Plate, Electronic Control
Specifications
| Frame Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 13 |
| Maximum Fluid Pressure (MPa) | 2.9 |
| Maximum Fluid Pressure (psi) | 410 |
| Model | SaniForce 2.0 |
| Number of Controllers | 1 |
| Number of Pumps | 2 |
| Overall Depth (in) | 76.5 |
| Overall Height (in) | 117.3 |
| Overall Width (in) | 70 |
| Plate | Inflatable Seal, Buckhorn Bin (43.9 x 39.9 inches) |
| Pump Ratio | 5:1 |
| Pump Type | Piston - Priming Piston (2 Pump) |
| Seal Material | White Neoprene Inflatable Seal, Bin |
| Series | Bin Evacuation System |
| Standards Met | CE, EC 1935/2004, FDA Compliant Materials, UL 508A |
| System Controller Type | Electronic Touchscreen Control |
| Type | Bin Evacuation System |
| Wetted Material | 316 Stainless Steel, Nitrile, Nylon, Polychloroprene, PTFE, UHMWPE |
| Maximum Air Inlet Pressure (bar) | 6.89 |
| Maximum Air Inlet Pressure (kPa) | 689 |
| Maximum Flow Rate (L/min) | 49.2 |
| Maximum Fluid Pressure (bar) | 28.7 |
| Maximum Fluid Pressure (kPa) | 2870 |
| Maximum Fluid Pressure (kg/cm²) | 29.6 |
| Overall Depth (cm) | 194 |
| Overall Depth (mm) | 1943 |
| Overall Height (cm) | 298 |
| Overall Height (mm) | 2979 |
| Overall Width (cm) | 178 |
| Overall Width (mm) | 1778 |
