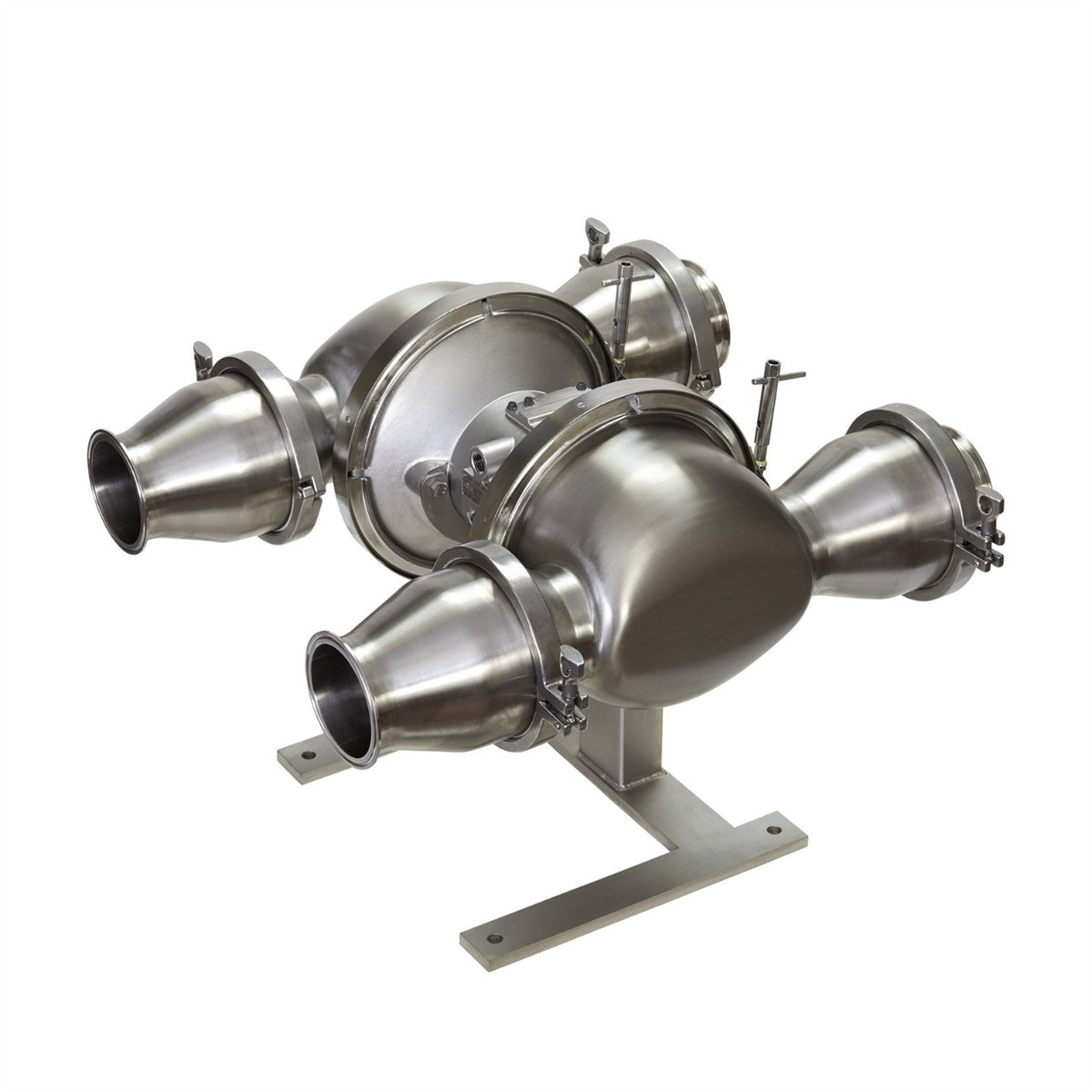

Graco's SaniForce 4150, 4-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 90 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
Specifications
| UPC Product | 769946021011 |
| Country of Origin | US |
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | 316 Stainless Steel Flapper |
| Center Section Material | Stainless Steel |
| Compatible Material | Edible Oil, Food, Personal Care |
| Compressor Required | Yes |
| Configuration Code | 4150HS.PS01ASSAFL-BNBN21 |
| Connection Type | Tri-Clamp |
| Diaphragm Material | Buna-N |
| Fluid Passage Size (cm) | 10 |
| Fluid Passage Size (in) | 4 |
| Fluid Passage Size (mm) | 100 |
| Fluid Section Material | 316L Stainless Steel |
| For Use With | Food and Personal Care |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | Buna |
| Material | Stainless Steel |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Air Consumption (SCFM) | 235 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 225 |
| Maximum Flow Rate (GPM) | 90 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 3.8 |
| Minimum Fluid Operating Temperature (°C) | -12 |
| Minimum Fluid Operating Temperature (°F) | 10 |
| Model | SaniForce |
| Overall Height (in) | 45.9 |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | High Sanitation |
| Seat Material | 316 Stainless Steel |
| Series | 4150 HS |
| Standards Met | FDA Compliant Materials, EC 1935/2004 |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 4-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 168 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Flow Rate (L/min) | 340 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Solid Size (cm) | 9.65 |
| Maximum Solid Size (mm) | 96.5 |
