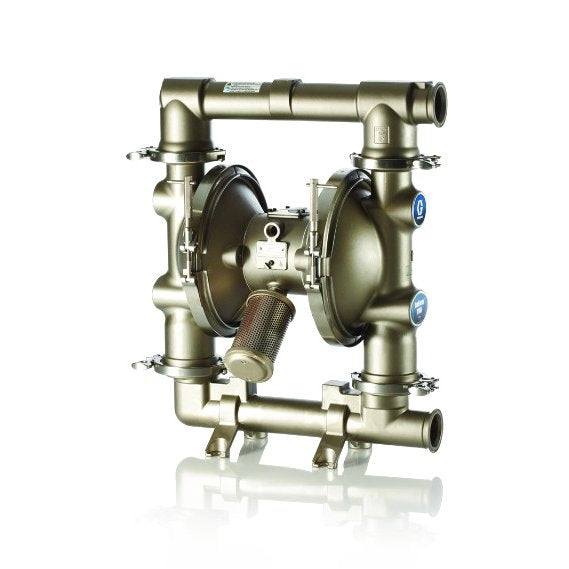

This Graco SaniForce 2150 2" FG stainless steel pneumatic diaphragm pump features an SS center, SS seats, CW balls, and PO diaphragms for sanitary, food-grade fluid transfer.
Specifications
| Model | SaniForce |
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | Polychloroprene Weighted |
| Center Section Material | Stainless Steel |
| Compressor Required | Yes |
| Configuration Code | 2150FG-PS01AS13SSCWPOPT21 |
| Diaphragm Material | PTFE/EPDM Overmold |
| Fluid Passage Size (cm) | 5 |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 50 |
| Fluid Section Material | 316 Stainless Steel |
| For Use With | Food and Personal Care |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 165 |
| Maximum Flow Rate (GPM) | 160 |
| Maximum Fluid Operating Temperature (°C) | 80 |
| Maximum Fluid Operating Temperature (°F) | 176 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Fluid Operating Temperature (°C) | -10 |
| Minimum Fluid Operating Temperature (°F) | 14 |
| Model | SaniForce |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials, EC 1935/2004 |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2.5-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 147 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Flow Rate (L/min) | 568 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Solid Size (cm) | 0.63 |
| Maximum Solid Size (mm) | 6.3 |
