The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component urethanes. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.
Features

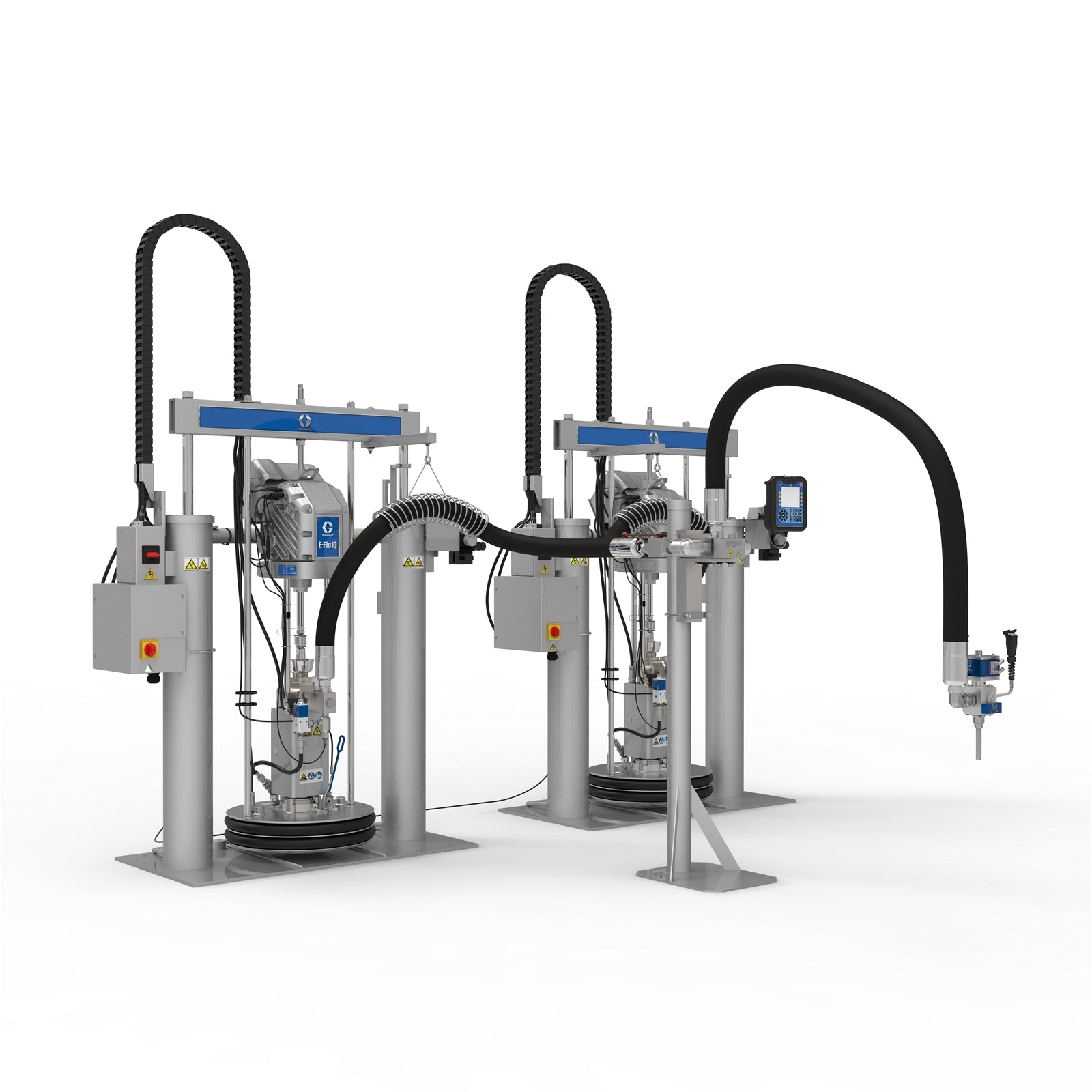

- Tandem Heated E-Flo iQ Urethane Supply Sytem Delivers consistent control and accurate performanceQuiet electric servo-driven motor for lower sound levelsProvides continuous dispensing without the need to reloadCheck-Mate Severe Duty lower for long life and reliable material movement
- Delivers consistent control and accurate performance
- Quiet electric servo-driven motor for lower sound levels
- Provides continuous dispensing without the need to reload
- Check-Mate Severe Duty lower for long life and reliable material movement
- High-Quality Hoses Graco heated hoses are insulated for an accurate and uniform material temperature.Equipped with a total of 35 ft of hose (two 10 ft hoses for pumps to manifold and one 15 ft hose from manifold to valve)
- Graco heated hoses are insulated for an accurate and uniform material temperature.
- Equipped with a total of 35 ft of hose (two 10 ft hoses for pumps to manifold and one 15 ft hose from manifold to valve)
- Axial Rotating Dispense Valves Suited for Urethane Dispense Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing Delivers reliable and consistent beads in high flow applications Compact and lightweight design allows for lower payloadRotating valve prevents twining and reduces wear Remote mounted solenoid
- Triangular head ideal for urethane and sealant dispense for automotive window and windshield glazing
- Delivers reliable and consistent beads in high flow applications
- Compact and lightweight design allows for lower payload
- Rotating valve prevents twining and reduces wear
- Remote mounted solenoid
- Easy and Simple Integration The communication gateway module (CGM) has integrated mapping of all of the programming data.Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.
- The communication gateway module (CGM) has integrated mapping of all of the programming data.
- Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS.
Specifications
| Air Inlet Size (in) | 1 |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Applicator Type | Rotating Ball/Seat |
| Fluid Outlet Size (in) | 1.0 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Gateway | EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Maximum Air Inlet Pressure (psi) | 125 |
| Maximum Flow Rate (cc/min) | 5000 |
| Maximum Fluid Temperature (°F) | 158 |
| Maximum Fluid Viscosity (cP) | 3000000 |
| Maximum Hose Length (ft) | 25 |
| Maximum Working Pressure (MPa) | 28 |
| Maximum Working Pressure (psi) | 4000 |
| Minimum Fluid Viscosity (cP) | 100000 |
| Phase | 1, 3 |
| Power Rating (HP) | 2.5 hp |
| Sound Pressure Level (dB(A)) | < 70 |
| Type | Metering System |
| Wetted Material | 319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
| Air Inlet Size (mm) | 25 |
| Fluid Outlet Size (cm) | 2.54 |
| Maximum Air Inlet Pressure (bar) | 9 |
| Maximum Air Inlet Pressure (kPa) | 900 |
| Maximum Flow Rate (L/min) | 5.0 |
| Maximum Fluid Temperature (°C) | 70 |
| Maximum Working Pressure (kPa) | 28000 |
| Minimum Flow Rate (L/min) | 0.01 |
| Minimum Flow Rate (cc/min) | 10 |
