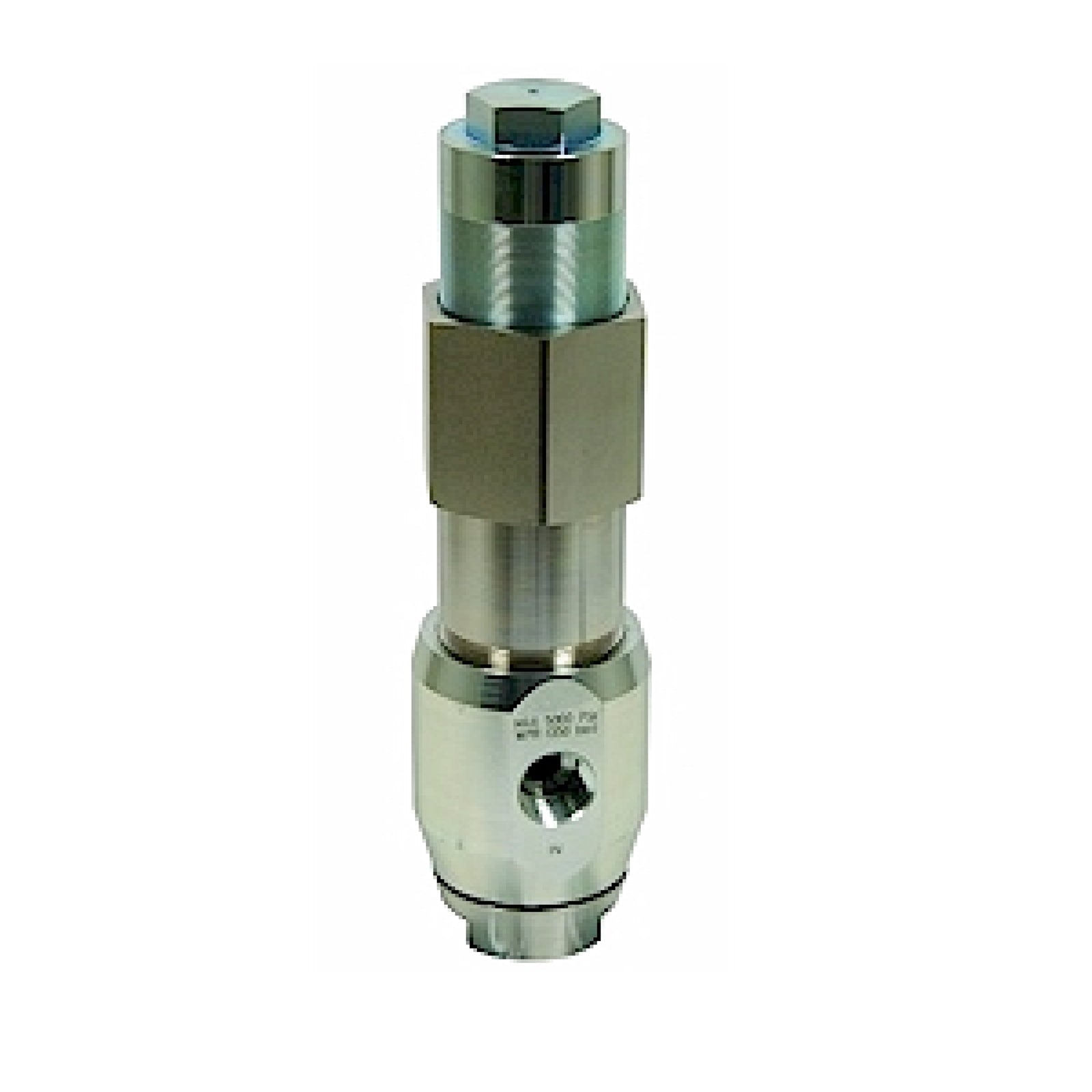

The mastic regulator is ideal for low to high viscosity sealants or adhesives
These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
Specifications
| Actuation Type | Spring |
| Flow Control Type | Regulation |
| Gauge Port Size (in) | 3/4 |
| Gauge Port Type | NPT |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Regulated Pressure (MPa) | 31.0 |
| Maximum Regulated Pressure (psi) | 4500 |
| Maximum Viscosity (cP) | 80000 |
| Maximum Working Pressure (MPa) | 34.4 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Regulated Pressure (MPa) | 7.0 |
| Minimum Regulated Pressure (psi) | 1000 |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | NPT |
| Type | Fluid Regulator |
| Wetted Material | Zinc-Plated Carbon Steel, Brass, Stainless Steel, Buna-N, Urethane, Tungsten Carbide |
| Gauge Port Size (cm) | 1.905 |
| Gauge Port Size (mm) | 19.05 |
| Inlet Size (cm) | 1.905 |
| Inlet Size (mm) | 19.05 |
| Maximum Regulated Pressure (bar) | 310 |
| Maximum Regulated Pressure (kPa) | 31000 |
| Maximum Working Pressure (bar) | 344 |
| Maximum Working Pressure (kPa) | 34400 |
| Minimum Regulated Pressure (bar) | 70 |
| Minimum Regulated Pressure (kPa) | 7000 |
| Outlet Size (cm) | 1.905 |
| Outlet Size (mm) | 19.05 |
