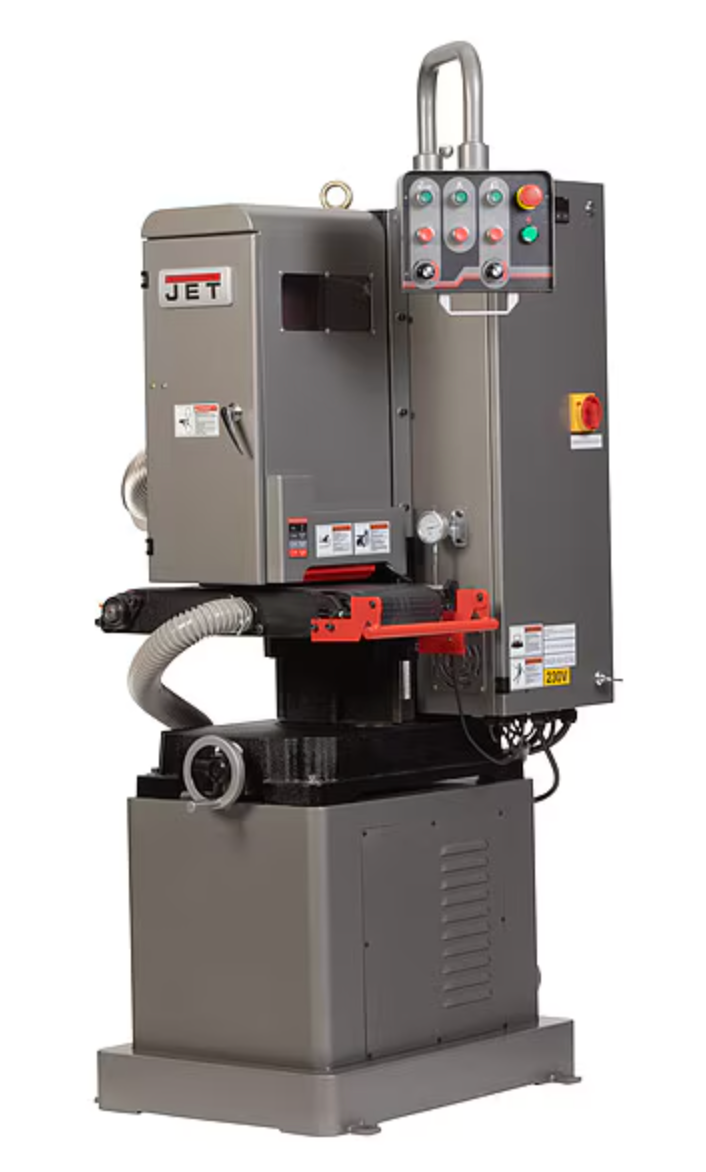

Wide Belt Sander, Product Type Wide Belt Sander, Voltage 230V AC, Phase Single-Phase, Current 15 A, Horsepower 5 hp, Belt Width 9 in, Belt Length 48 in, Belt Speed Settings Variable, Belt Speed 1,465 SFPM, Feed Speed Settings Variable, Maximum Board Thickness 4 in, Maximum Board Width 9 in, Minimum Feed Speed 6 fpm, Maximum Feed Speed 16 fpm, Minimum Board Thickness 1/16 in, Dust Collection Port Size 4 in, Tool Width 29 in, Tool Length 37 1/2 in, Tool Series JT1-550
Dimensions
| Tool Length | 37 1/2 in |
| Tool Width | 29 in |
| Dust Collection Port Size | 4 in |
| Belt Length | 48 in |
| Minimum Board Thickness | 1/16 in |
| Idler Drum length | 9 3/4 in |
| Idler Drum Diameter | 3 13/16 in |
| Maximum Board Width | 9 in |
| Belt Width | 9 in |
| Tool Height | 76 3/4 in |
| Maximum Board Thickness | 4 in |
Details
| Item | Wide Belt Sander |
| Tool Weight | 704 lb |
| Maximum Motor Speed | 3,500 RPM |
| Belt Speed | 1,465 SFPM |
| Tool Series | JT1-550 |
| Power Source | Corded |
| Belt Speed Settings | Variable |
| Minimum Feed Speed | 6 fpm |
| Horsepower | 5 hp |
| Maximum Feed Speed | 16 fpm |
| Feed Speed Settings | Variable |
