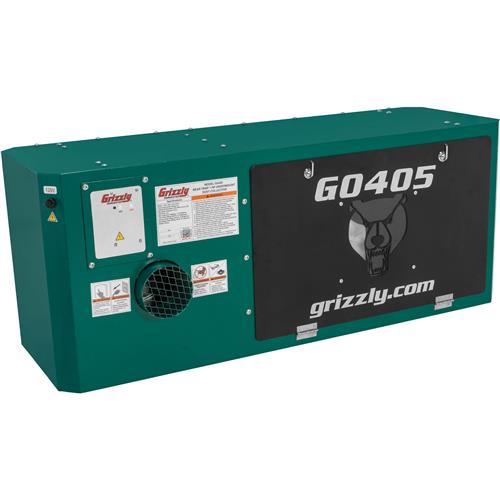

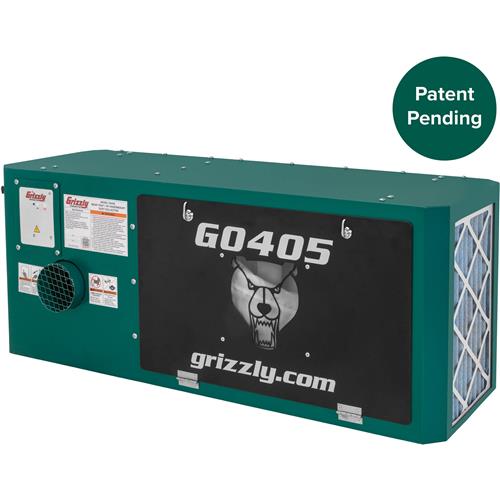

Compact and efficient small-shop dust collector offering three practical installation options.

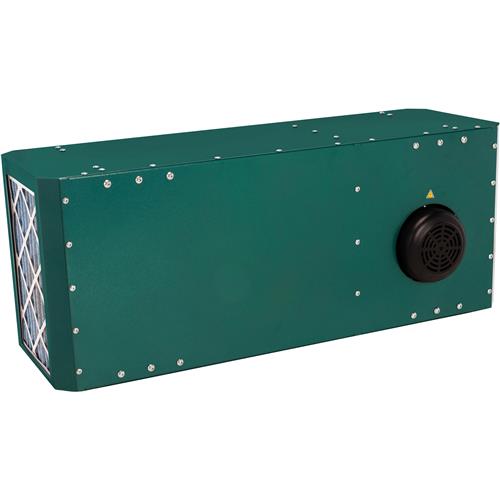

Every shop needs powerful dust collection for a safe and healthy working environment, and this 1 HP horizontal dust collector provides versatility for the space challenges of smaller workspaces. With a horizontal layout and three ways to use the machine, you can maximize efficiency regardless of your setup.

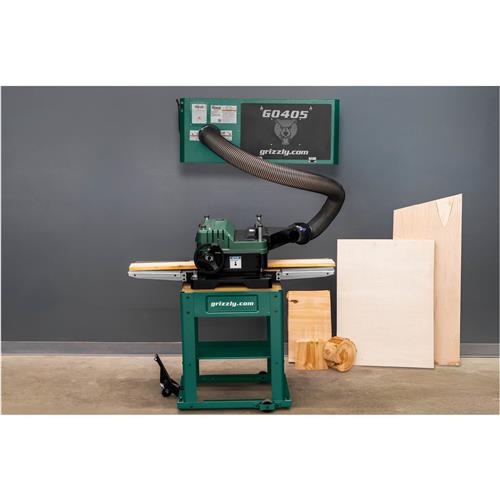

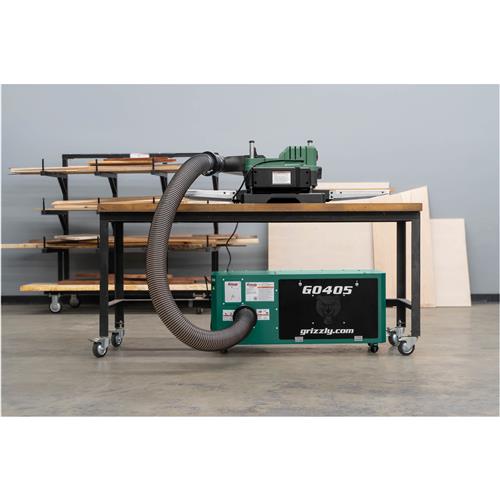

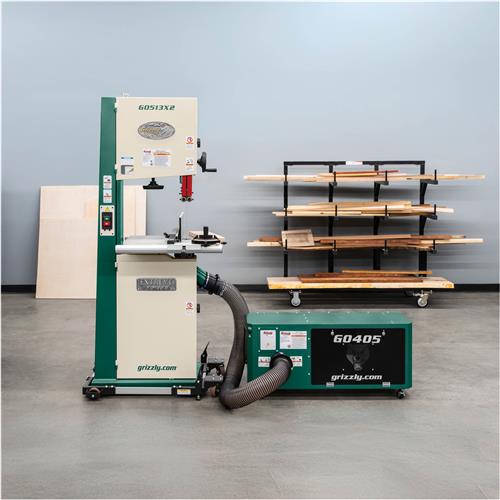

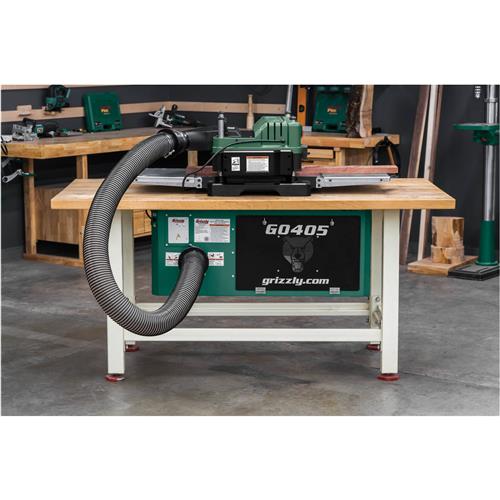

This adaptable horizontal dust collector is designed to fit underneath your workbench to collect wood dust from benchtop machines, or it can be mounted to your shop wall to keep it out of the way during operation. You can also attach the four included casters and create a portable machine that offers the flexibility of quick relocation.

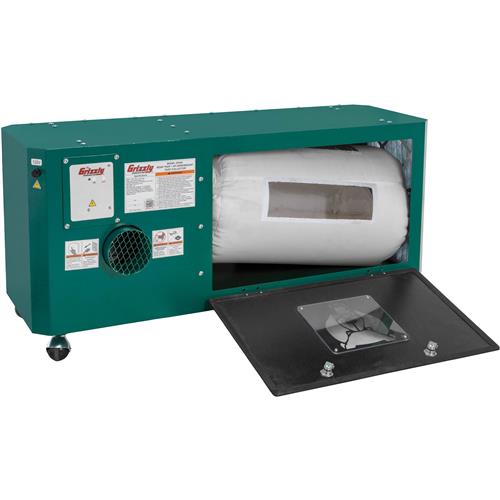

The 10" aluminum impeller produces 442 CFM of suction that pulls debris into the collection bag, and the two-filter system ensures effective dust removal with 5-micron filtration from the secondary filter. The standard 4" inlet and user-friendly remote control boost the dust collector's impact in smaller shop settings.
FEATURES & BENEFITS:
Horizontal Design: Slides easily below a workbench instead of taking up valuable floor space.
3 Mounting Options: Adaptable for undermount, wall, or mobile use; all required hardware and instructions provided for each installation type.
Rotating Impeller: Creates suction through rotation to efficiently move wood dust into the collection bag.

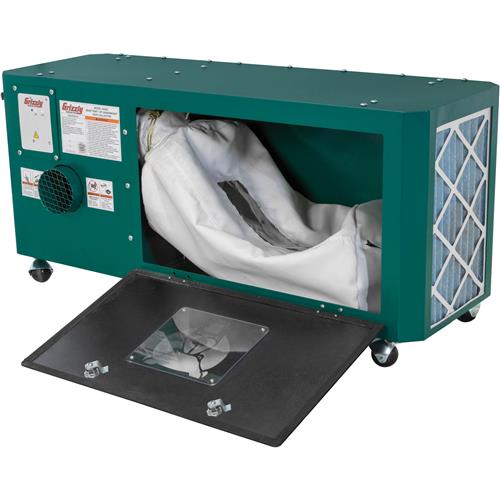

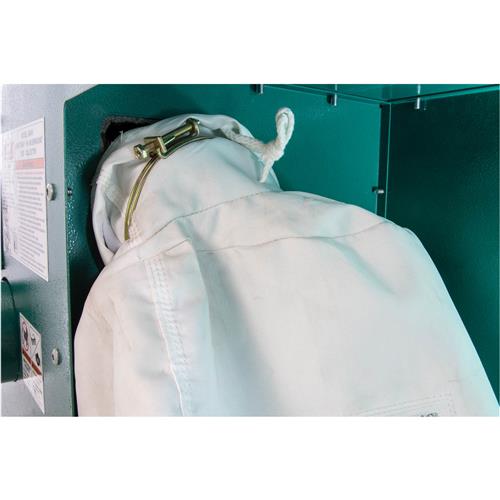

Dual-Stage Filtration: A bag filter offers 30-micron filtration, and a secondary pleated filter offers a 5-micron rating.
4" Inlet: Conveniently fits most common fittings and hose sizes to simplify use.

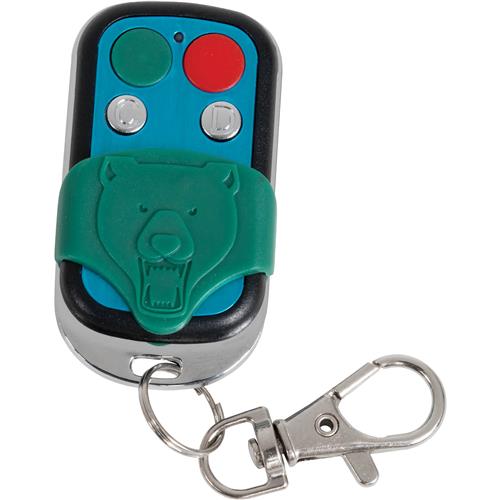

Remote Control: Manage dust collector operation from up to 75 feet away.
SPECIFICATIONS

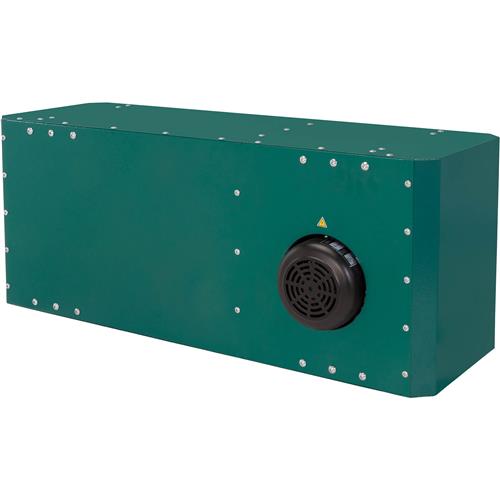

Motor: 1 HP, 120V, single-phase, 7A
Main inlet size: 4"
Impeller: 10", Radial fin
Airflow capacity: 442 CFM @ 2.5 in. SP
Max. static pressure: 6.6"
Primary filter rating: 96.67% @ 30 Microns
Primary filter type: Bag
Primary filter dimensions: 24" L x 13-1/2" W
Secondary filter rating: 65.8% @ 5 Microns
Secondary filter type: Pleated panel
Secondary filter dimensions: 382mm L x 225mm W
Max collection capacity: 11-1/4 Gallons
Footprint: 40-1/2" x 13-1/2"
Overall size: 40-1/2" W x 18-1/2" D x 19" H
Approximate shipping weight: 93 lbs.
Keep wood dust from taking over your shop by adding a versatile undermount dust collector to your shop today.
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.
Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0405 comes with a 1-year warranty.
