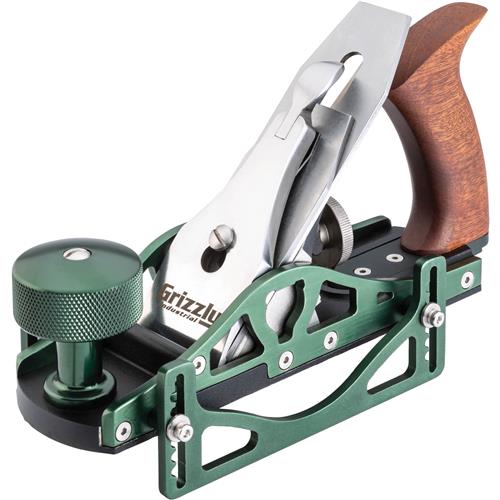

T34066 10" Legacy No. 4 Smoothing Plane

Discover Hand Planing Versatility with a Modern Take on a Classic Design

Winner of Popular Mechanics Best New Hand Tools of 2025 award, the T34066 balances traditional functionality with innovative design and modern elegance. It features adjustable handholds for the perfect fit, and removable depth stop guides for precision planing of thin workpieces that regular planes can’t handle. With its exquisite design and superior performance, this smoothing plane will quickly become one of your favorite tools.

Precision Engineering Meets Customizable Comfort

Designed for maximum comfort and control, the T34066 features an adjustable knob and tote that can be tailored to fit your hand size, reducing fatigue and enhancing precision. Its removable depth stop guides provide perfect control when planing delicate pieces, ensuring accurate planing every time. The lateral adjustment screws allow for fine-tuning hard and soft wood finishes. And the precision-machined adjustable frog allows for a virtually “zero” mouth opening to produce the finest shavings, even on challenging grain patterns. Crafted with a 9½" ductile cast-iron sole, stainless steel fixtures, anodized aluminum cheeks, and a solid wood handle, this plane combines durability with aesthetic appeal.

“We wanted to keep the guts of how a traditional plane works but add functionality with the adjustable hand positions and depth guides. We made this a very usable tool but also gave it some beauty. Not only do you want something that functions well; you want something that when you put it on your shelf it looks good.”

—Shabir Balolia, Chief Operating Officer, Grizzly Industrial

Features and Benefits

Adjustable Handholds: Offers personalized comfort and control, reducing hand fatigue during prolonged use.

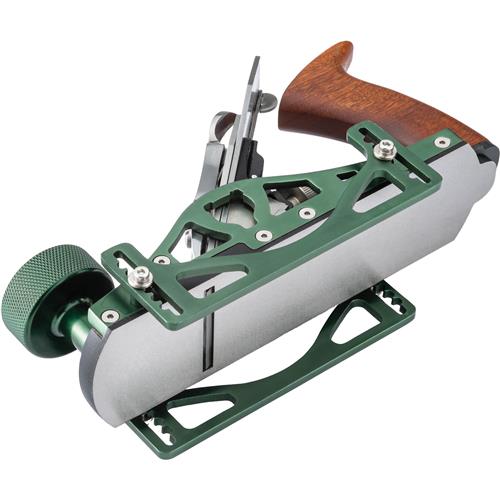

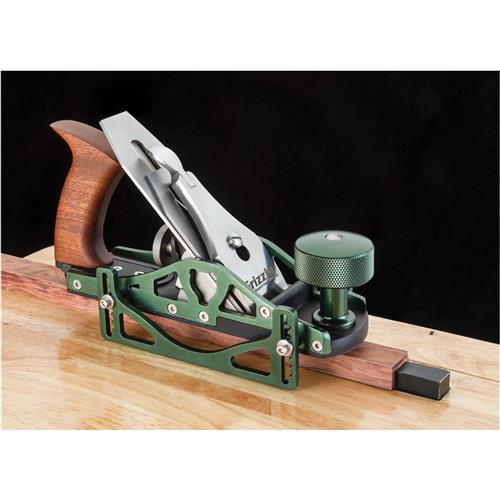

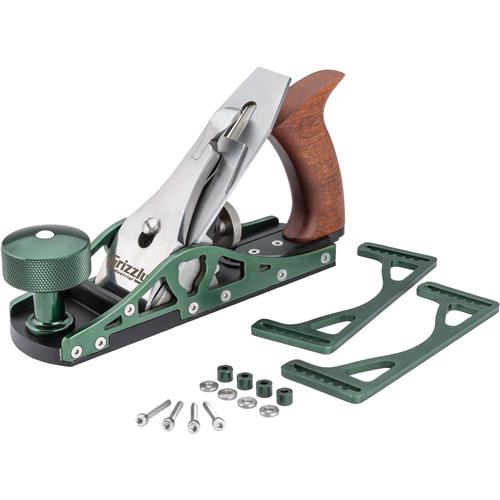

Removable Depth Stop Attachments: Ensures precise planing of thin and narrow workpieces, perfect for detailed work.

Precision-Machined Adjustable Frog: Provides absolute stability of the planing iron and allows fine adjustments down to virtually “zero” mouth opening for precision planing.

9½" Ductile Cast-Iron Sole: Ensures flatness, durability, and long-lasting performance.

Anodized Aluminum Cheeks and Knob: Adds aesthetic appeal and rust resistance and keeps the weight to a minimum.

Solid Sapele Handle: Offers a comfortable grip and enhances the plane’s overall beauty.

1/8"-Thick, 2"-wide O1 steel blade sharpened to a 45° bevel: Provides sharp, precise cuts, tempered to 60-62 Rockwell C for durability.

Embrace the next level of woodworking with the Legacy No. 4 Smoothing Plane, where exceptional craftsmanship meets innovative design.

To ensure your satisfaction, the T34066 comes with a 1-year warranty.
