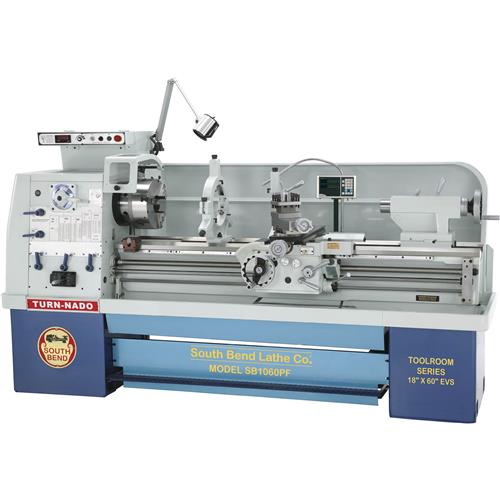

The EVS (electronic variable speed) spindle speed of the SB1060PF 18" x 60" Lathe allows for dialing in the perfect cutting speed.
The spindle speed dial fine tunes the exact speed within the selected range between 18–1800 RPM.

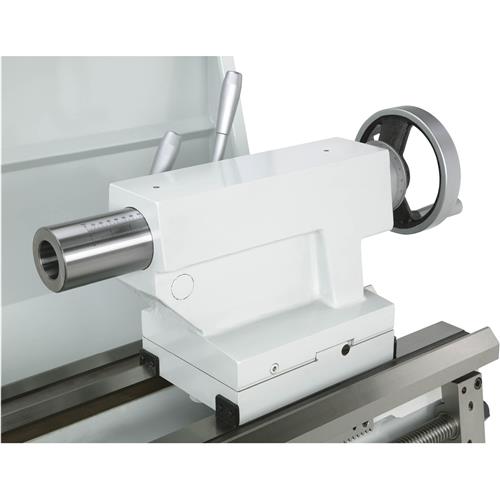

The spindle has a D1-8 camlock with an MT#7 taper and 3.15" bore. The tailstock has an MT#5 taper with 6-1/2" of quill travel.
Spindle speed is displayed on the digital readout conveniently located on the control panel.

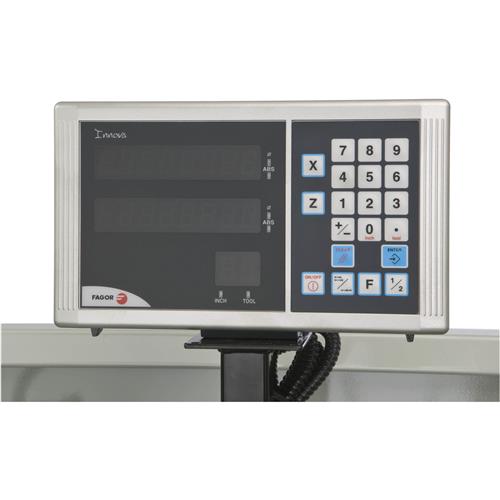

A factory-installed Fagor digital readout displays the positioning of the carriage and cross slide.

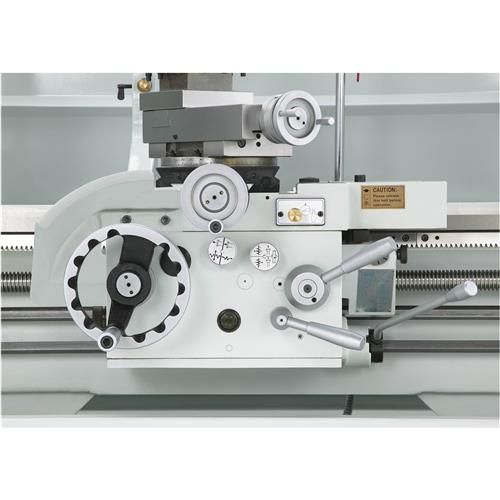

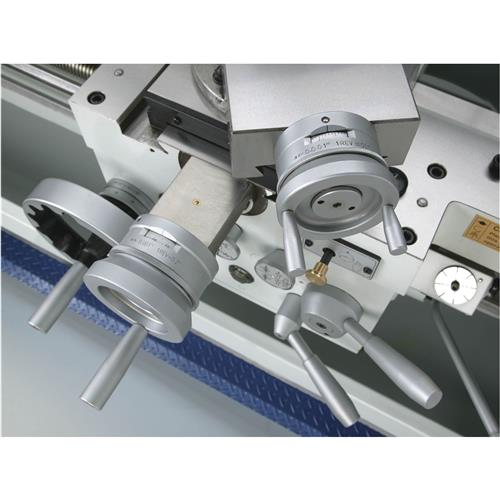

Both the carriage and cross slide have power feed capability when the carriage is engaged with the feed rod.

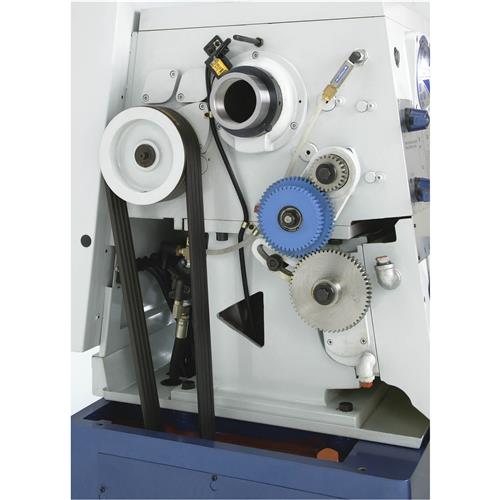

The headstock is equipped with a pressurized oiling system that lubricates the bearings and gears before the spindle starts.
The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.

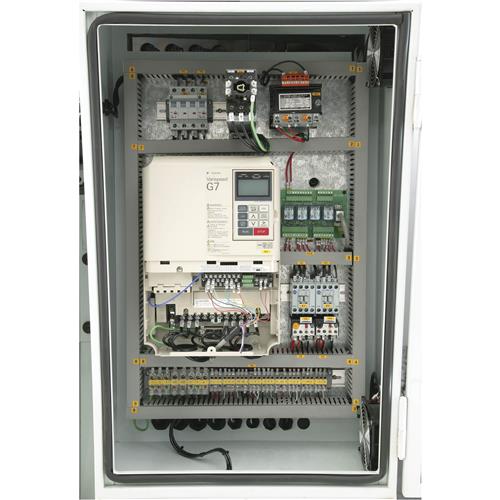

Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.
And finally, this lathe comes with a circulating coolant system.
The SB1060PF manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to maintain your lathe.
The SB1060PF comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.
Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
SPECIFICATIONS

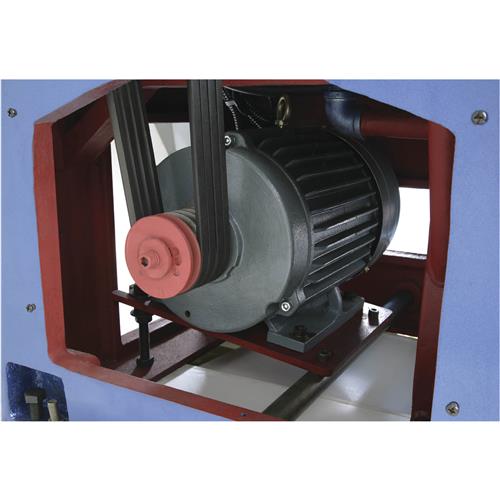

Spindle motor: 12-1/2 HP, 440V, 3-phase, 18A
Coolant pump motor: 1/8 HP, 440V
Oil pump motor: 1/4 HP, 440V
Distance between centers: 60"
Swing over bed: 18"
Swing over cross slide: 11.02"
Width of bed: 13.58"
Cross slide travel: 11"
Compound slide travel: 5.39"
Spindle nose: D1-8 camlock
Spindle taper: MT #7
Spindle speeds: Variable, 18–1800 RPM
Tailstock taper: MT #5
Tailstock travel: 6-1/2"

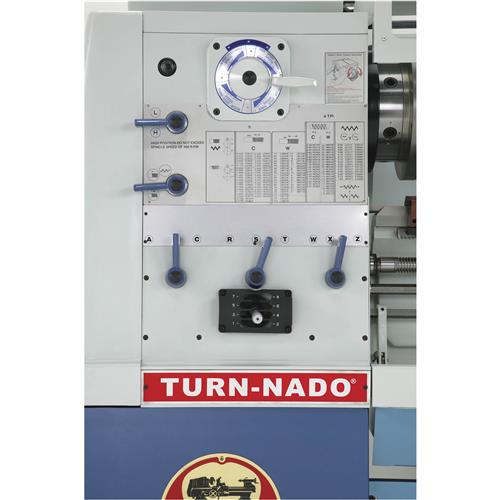

Inch thread range: 2–72 TPI (38 pitches)
Metric thread range: 0.4–14 mm (40 pitches)
Modular threads: 0.3–3.5 (18 pitches)
Diametral threads: 8–44 (21 pitches)
Longitudinal feeds: 0.0015–0.0400 IPR (15)
Cross feeds: 0.001–0.034 IPR (15)
Overall dimensions: 110-1/2" W x 27" D x 62-1/4" H
Approximate shipping weight: 5408 lbs.

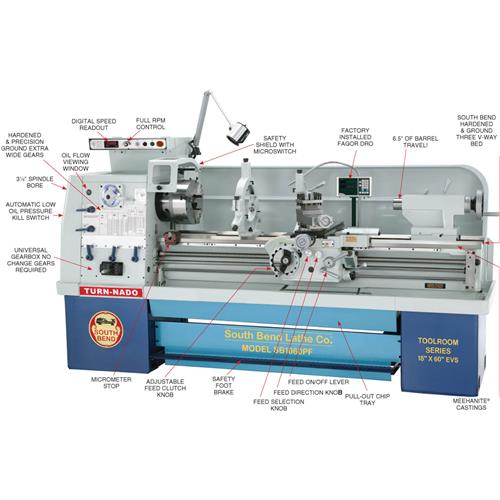

FEATURES
Fagor 2-axis DRO
Meehanite® castings
Allen-Bradley® controls
SKF spindle bearings
Halogen work light

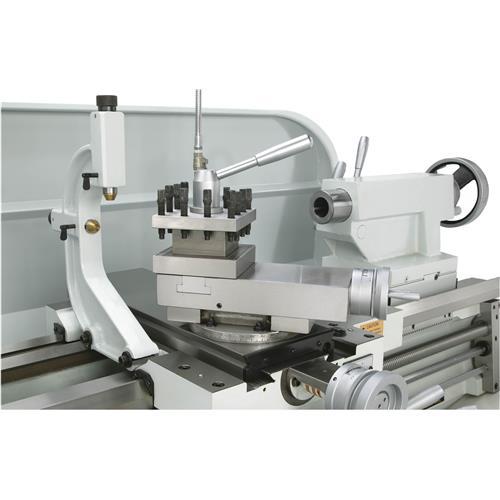

4-Way tool post
Complete coolant system

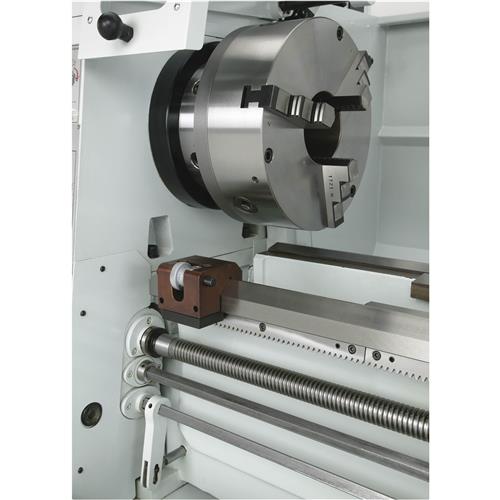

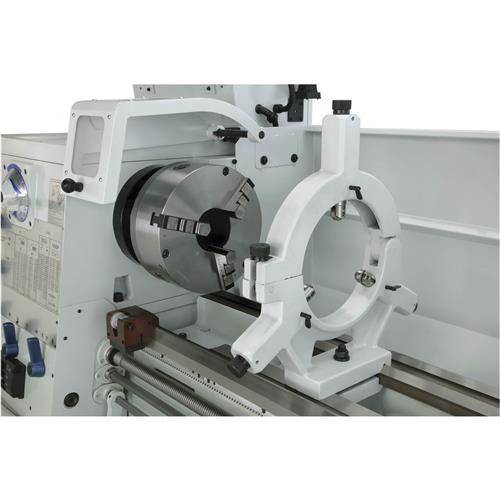

12" 3-Jaw scroll chuck
14" 4-Jaw independent chuck D1-8
U.S.-based customer service and technical support
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
