Performance and convenience in a compact design that's ready to meet the needs of your demanding shop.

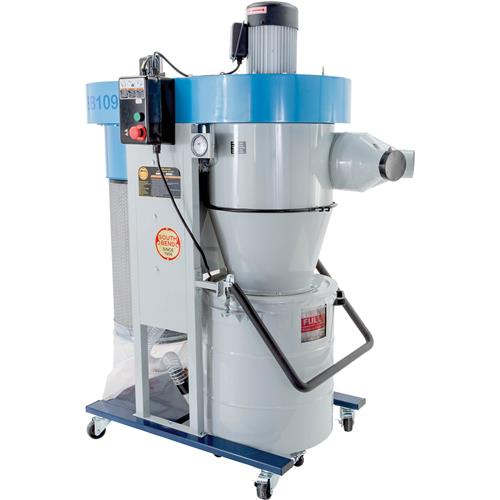

The South Bend SB1092 2 HP Cyclone Dust Collector is not just top of its class in performance and dependability, it comes packed with features to help you improve workflow and efficiency.
The two-stage collector separates the large chips and debris into an easy-to-empty 28-gallon drum, then the fine particles travel through a self-cleaning 1-micron pleated filter and collect into the lower plastic bag.

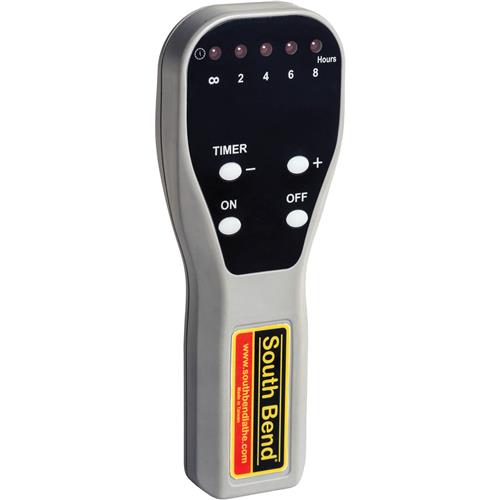

The wireless remote with timer settings for automatic shutoff allows you to control the SB1092 from anywhere in your shop.
Connect up to two machines for simultaneous dust collection with the included 8" X 4" two-inlet adapter, or devote to a single machine.
The swivel casters on the base allow you to easily move the SB1092 to where you need it.

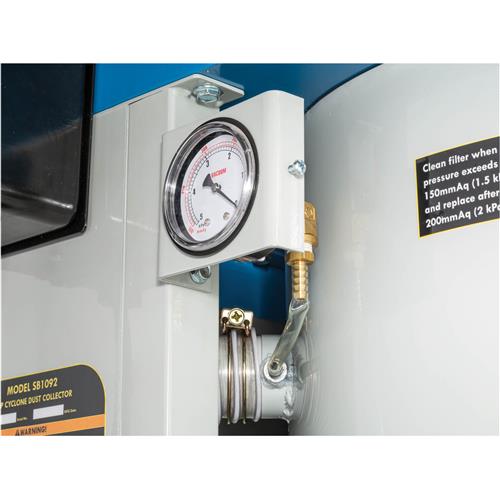

Also, this comes with a unique built-in vacuum pressure gauge that indicates normal operation, when it’s time to clean the filter, and when to replace it.
Additional high-end features such as automatic, power-driven filter cleaning brushes, a quick-release collection drum lid for easy dust disposal, and many more listed below make this South Bend dust collector the perfect choice for uncompromising woodworkers.
Like all South Bend woodworking machines, the SB1092 comes with a 2-year warranty and is built to South Bend high-precision industrial standards.
The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
The South Bend Customer Service and Technical Support Teams are U.S. based. Parts may be available online and shipped from the South Bend parts warehouse in Springfield, MO.
SPECIFICATIONS
Motor: 2 HP, 220V, single-phase, 9A
Main inlet size: 8", with two 4" adapter inlets
Airflow capacity: 1132 CFM @ 1.1" SP
Maximum static pressure: 11.5" @ 0 CFM
Filtration rating: 1-Micron
Filter surface area: 29 sq. ft.
Impeller: 14-1/2" Radial fin
Collection drum size: 28 Gallons
Sound rating: 77–79 dB

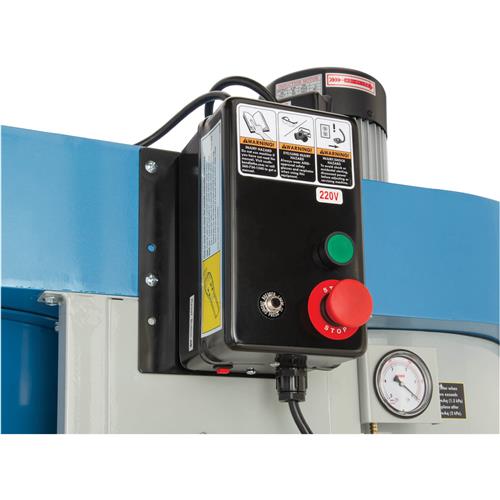

Switch: Remote-controlled magnetic with thermal overload protection
Overall dimensions: 51" W x 31" D x 64" H
Approximate shipping weight: 330 lbs.
FEATURES
Steel stand with built-in casters

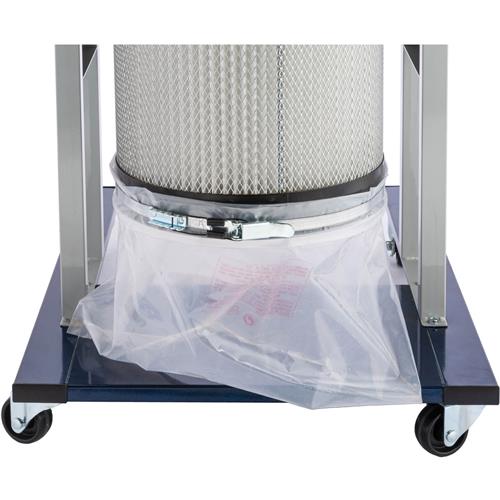

Clear disposable plastic collection bags
Automatic filter paddle brush for easy cleaning
Compact with a low overall height of 64"
Remote controlled magnetic switch
Reinforced motor mount
Timed shutoff settings

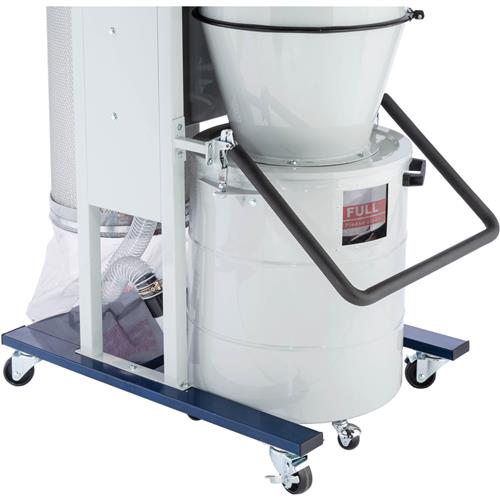

Rolling collection drum with quick-release lift handle
Vacuum equalizer built into collection drum for use with collection bags
