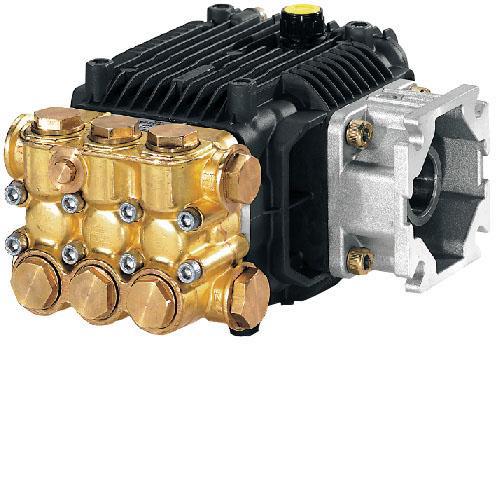

Annovi Reverberi AR XMV25G26D-F25 horizontal gas engine triplex plunger pump is rated up to 2.5 GPM at max 2600 PSI at 3400 RPM using a 1/2 ”F inlet and 3/8"F discharge thread. D version 3/4” with a gas engine flange.
| Max GPM | 2.5 |
| Max L/Min | 9.5 |
| Max PSI | 2600 |
| MaxBar | 179 |
| Power EBHP | 4.7 |
| Bore Dia mm | 15 |
| Stroke mm | 6.2 |
| Crankshaft ID Stamp | 10 |
| Inlet | 1/2" F |
| Outlet | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 14.5 |
| Weight | 15 |
| RPM | 3400 |
| Shaft Size | 3/4" |
| Shaft Version | D |
| Shaft Type | Hollow |
