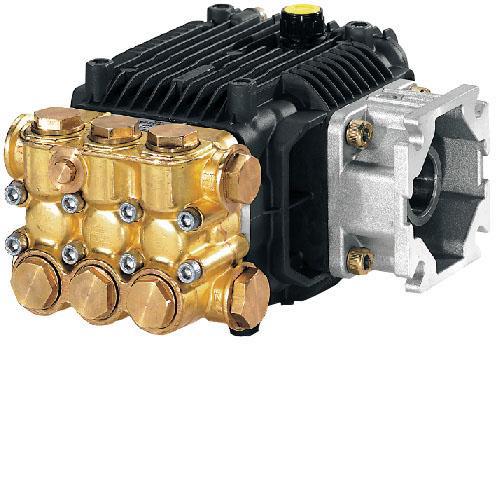

Annovi Reverberi AR XMV3G27D-F25 horizontal gas engine triplex plunger pump is rated up to 3 GPM at max 2700 PSI at 3400 RPM using a 1/2 ”F inlet and 3/8"F discharge thread. D version 3/4” with a gas engine flange.
| Max GPM | 3 |
| Max L/Min | 11.4 |
| Max PSI | 2700 |
| MaxBar | 186 |
| Power EBHP | 5.6 |
| Bore Dia mm | 15 |
| Stroke mm | 7.6 |
| Crankshaft ID Stamp | 9 |
| Inlet | 1/2" F |
| Outlet | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 14.5 |
| Weight | 15 |
| RPM | 3400 |
| Shaft Size | 3/4" |
| Shaft Version | D |
| Shaft Type | Hollow |
