Gain the advantage with industrial capacity in a high-end shaper.

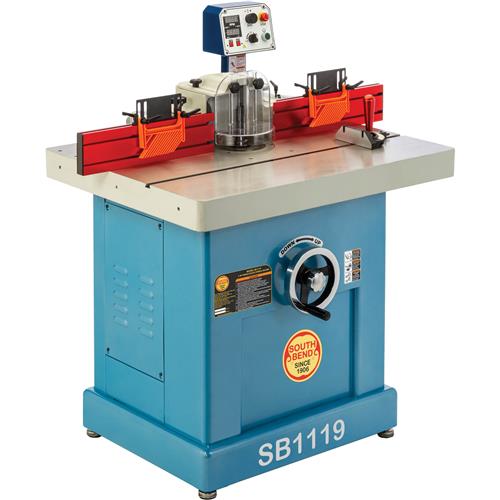

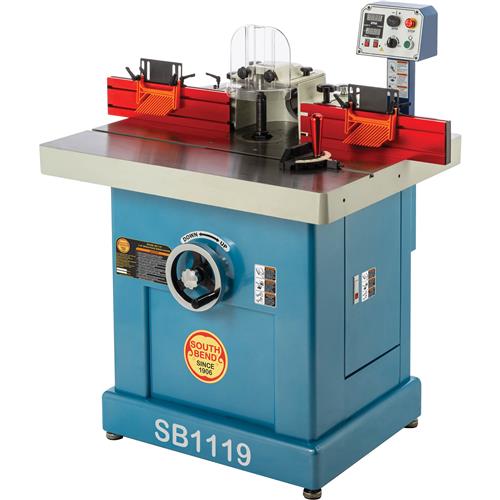

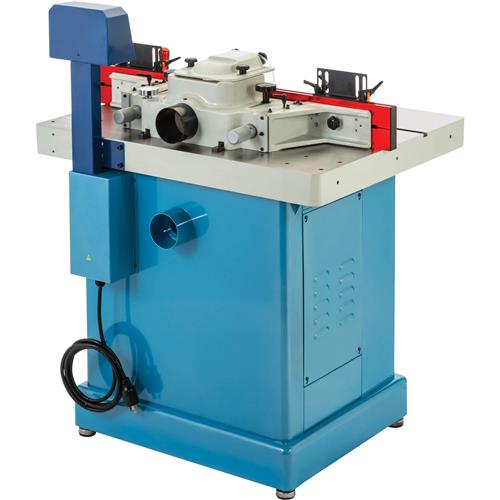

The 3 HP spindle shaper will give you superb finishes with high-end features and precision-built quality only available from South Bend.
Each model has a digital readout for precise spindle speed and height adjustments, and a micro-adjustable fence with featherboards.

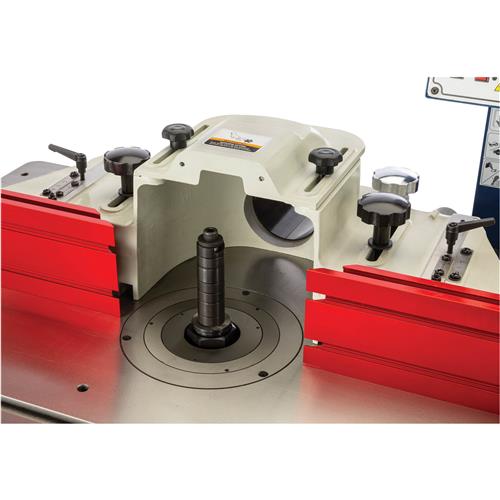

You’ll get maximum support for large workpieces plus versatility with a solid 3-3/8" thick, 31-1/2" x 39-1/4" precision-ground cast-iron table that accepts cutters up to 7" in diameter.

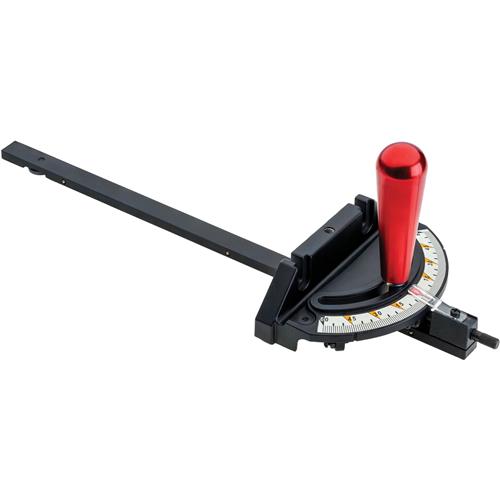

Additional features include dual dust ports, an included miter gauge, and a fully adjustable clear guard.
Where quality and high output matter, choose South Bend for dependability, accuracy, and versatility and then watch your production soar!
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS
Required power source: 230V, single-phase, minimum 20A circuit
Motor: 3 HP, 230V
Maximum cutter height: 5"
Maximum cutter diameter: 7"
Spindle diameters: 3/4", 1-1/4"
Spindle lengths: 3-7/8" and 5-7/8"
Spindle capacities under nut: 3-1/2" and 5-1/8"
Spindle speed: Variable, 5000–10,000 RPM
Spindle travel: 4"
Spindle openings: 2-1/2", 4-1/8", 5-3/4", 7"
Table counterbore: 8-1/4"dia., 3/16" depth
Table size: 31-1/2" x 39-1/4"
Floor-to-table height: 36-5/8"
Footprint: 25-1/2" x 31"
Dimensions: 39-1/2" W x 34" D x 51-1/2" H
Approximate shipping weight: 780 lbs.
FEATURES
2-year limited warranty

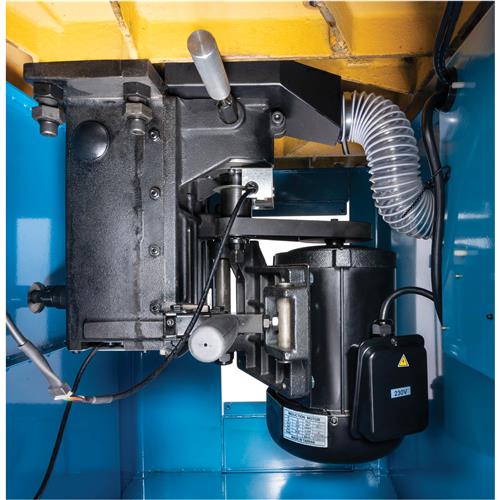

Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power

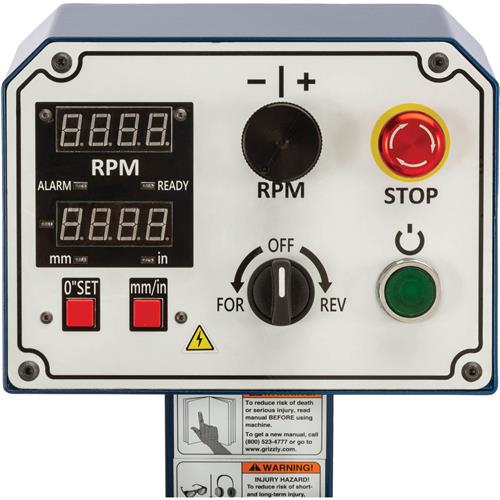

DRO for spindle RPM and height positioning

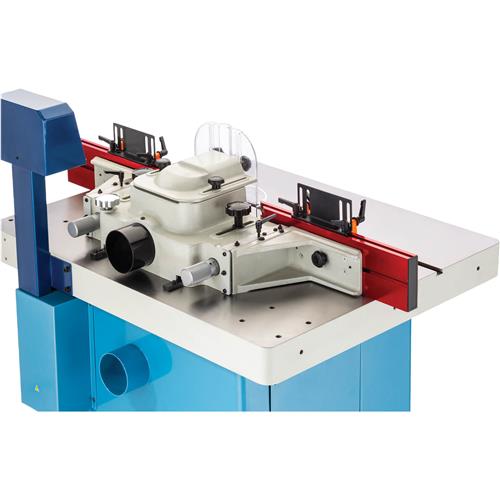

4-3/4" tall anodized aluminum fence with featherboard attachments
Rack-and-pinion fence adjustment with 4" of travel
Micro-adjustment knobs for fence alignment
Power feeder attachment locations (power feeder not included)
Variable speed, from 5000–10,000 RPM
Fully adjustable clear guard

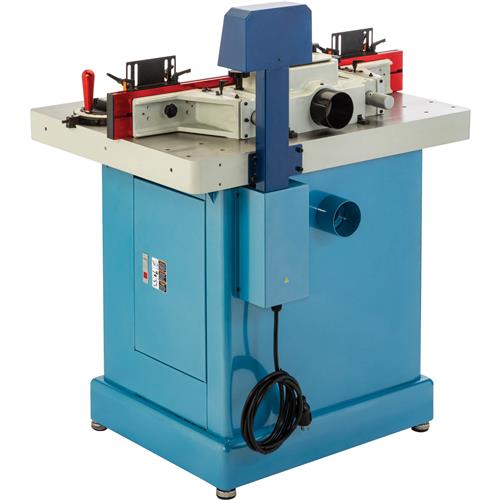

Dual 4" dust ports
Quick-release belt tensioner
