A truly versatile floor drill press thanks to the angled drilling capacity.

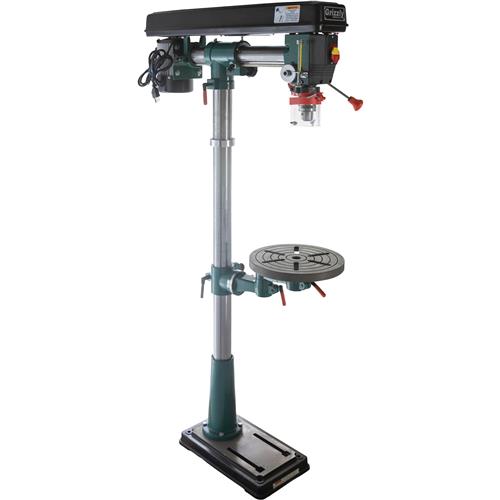

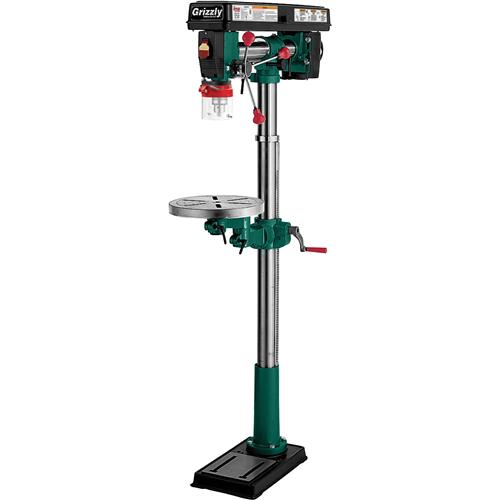

The G7946 34" Floor Radial Drill Press boasts a 1/2 HP motor that smoothly powers the five spindle speeds ranging from 550 to 3000 RPM.

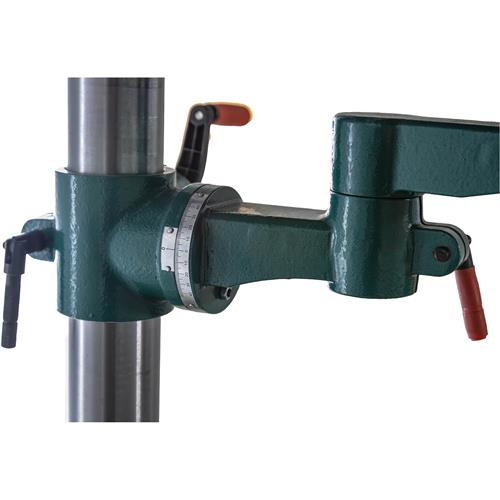

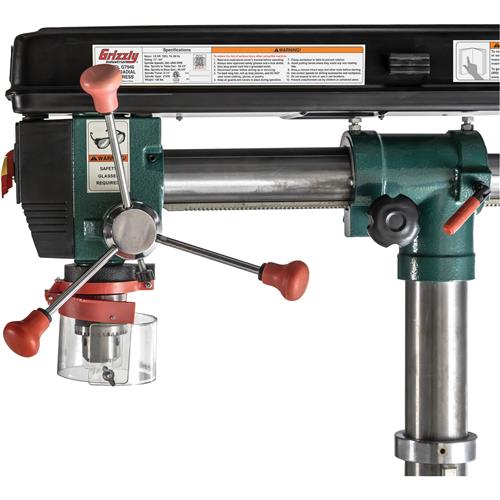

The headstock can be tilted 45° left, 90° right, and slid forward or backward over the column allowing you full adjustability.

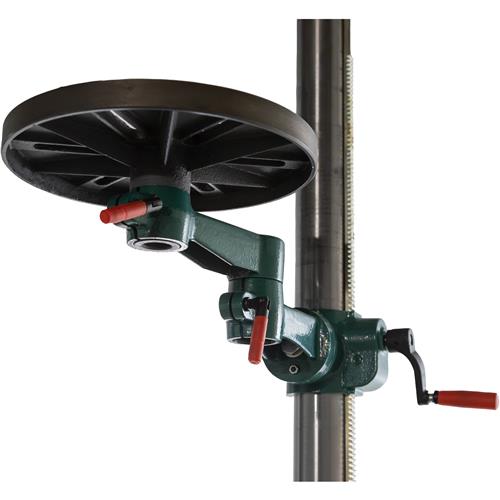

To make sure that you get the best use of the table, the drill press features rack-and-pinion elevation controls—adjustable 24-1/2" vertically, 90° tilt (left and right) and is capable of 360° rotation around the column.
The G7946 can easily drill holes through plastic, fiberglass, and composites and has a maximum capacity to drill through a half inch of steel without bogging down.

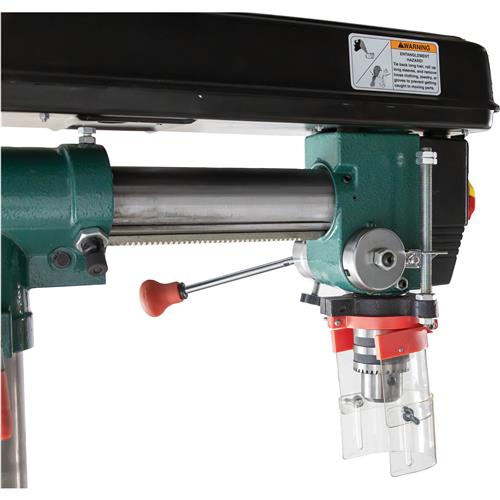

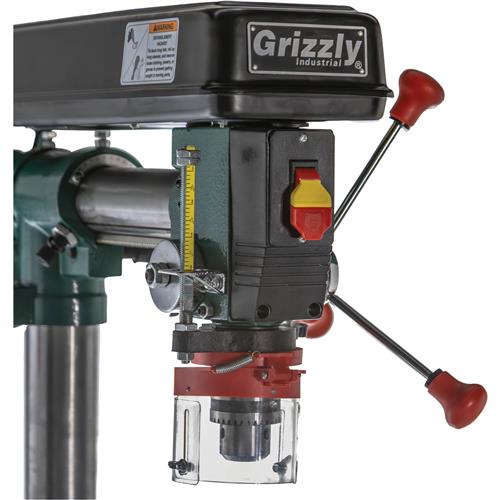

The JT33 keyed drill chuck is fitted to the JT33 spindle taper and offers up to 3-1/4" of travel. The chuck accepts drill bits from 1/16"–5/8". You can set the adjustable threaded depth stop for predetermined and repeatable drilling.
The G7946 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.
Made in an ISO 9001 Factory
ETL certified
SPECIFICATIONS
Motor: 1/2 HP, single-phase, 120V, 4.7A
Swing: 34"
Drill chuck: 1/16"–5/8", JT33
Drilling capacity: 1/2" mild steel
Spindle travel: 3-1/4"

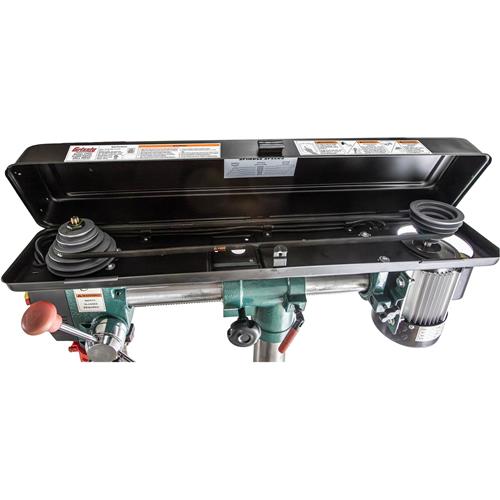

Spindle speeds: 5, 550–3000 RPM
Column diameter: 2.79"
Table size: 12-3/16" diameter
Table T-slots: 6 @5/8"
Table swing: 360°
Table tilts: 90° L/R
Head tilt: 90° L, 45° R
Footprint: 11" W x 18" L
Overall size: 14" W x 32" D x 64-1/2" H
Approximate shipping weight: 170 lbs.
FEATURES
Precision-ground cast-iron table
Threaded depth stop
Crank handle operated rack-and-pinion vertical table movement
Table has lock levers
Radial design allows angle drilling
Cushioned grip quill handles
1-year limited warranty
Need help?We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
