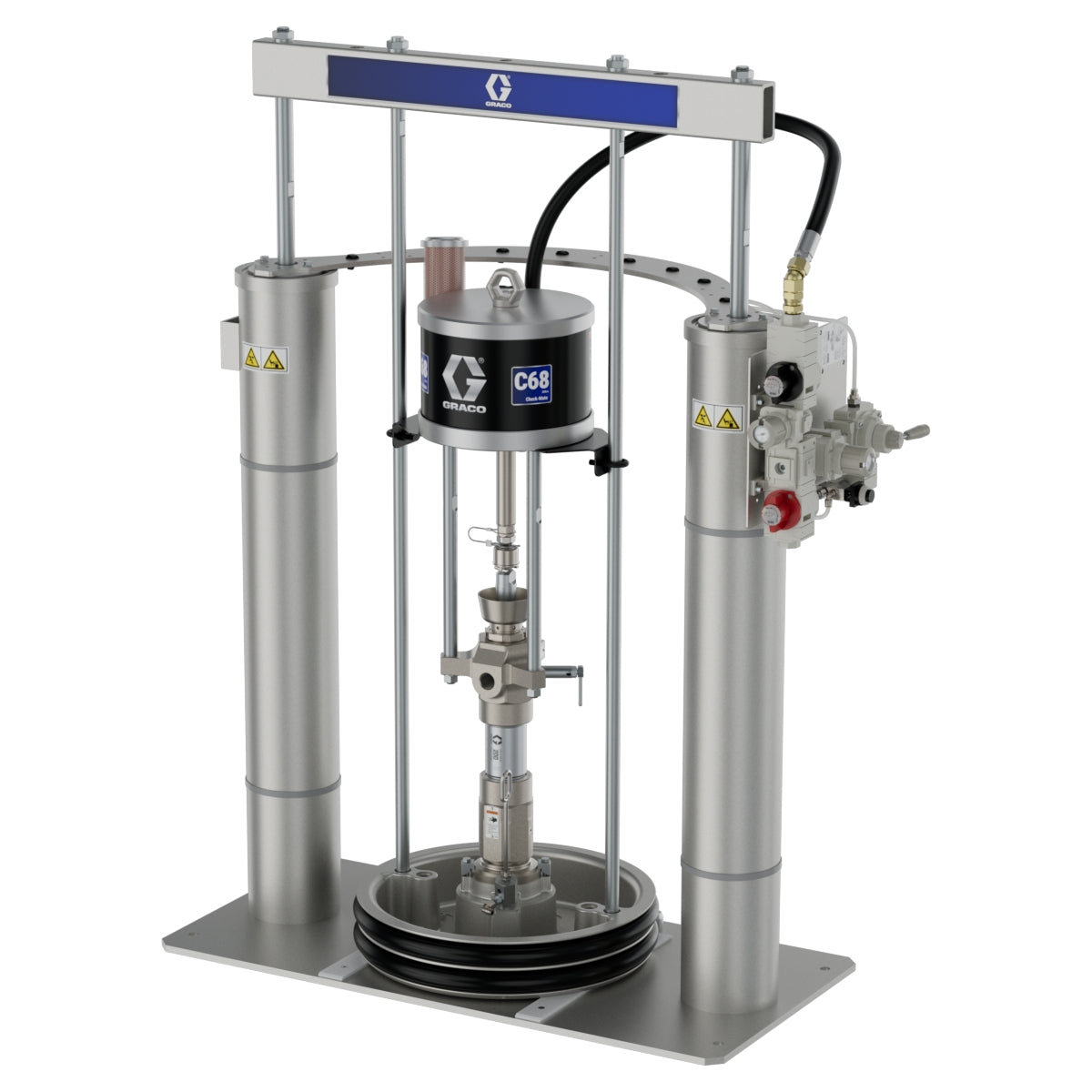

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.
Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.
Features
- For large drums up to 200 liter (55 gal)
- Graco D200s - Provides higher down-force for high-volume in-plant applications
- Quick placement of drum
- Platen wipers can be replaced in seconds
- Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
- High-quality, durable parts reduce maintenance time, maximize uptime
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°F) | 180 |
| Model | Check-Mate |
| Overall Depth (in) | 42 |
| Overall Width (in) | 25 |
| Platen Material | Aluminum |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Pump Ratio | 42:1 |
| Ram Post Diameter (in) | 6.5 |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Zinc & Electroless Nickle Plated, Electroless Nickel Plated Ductile Iron, Nitrile Rubber, PTFE, Polyurethane, Carbon Filled PTFE, Electroless Nickel Plating, Chrome Plating, UHMWPE, Ceramic, Tungsten Carbide |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Adhesive, Sealant |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 80 |
| Model | Check-Mate |
| Overall Depth (mm) | 1067 |
| Overall Width (mm) | 635 |
| Platen Material | Aluminum |
| Platen Size (L) | 200 |
| Platen Style | Dual O-Ring |
| Pump Ratio | 42:1 |
| Seal Material | EPDM |
| Series | D200s |
| Type | Supply Unit |
| Wetted Material | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel, 440C Stainless Steel, Zinc & Electroless Nickle Plated, Electroless Nickel Plated Ductile Iron, Nitrile Rubber, PTFE, Polyurethane, Carbon Filled PTFE, Electroless Nickel Plating, Chrome Plating, UHMWPE, Ceramic, Tungsten Carbide |
