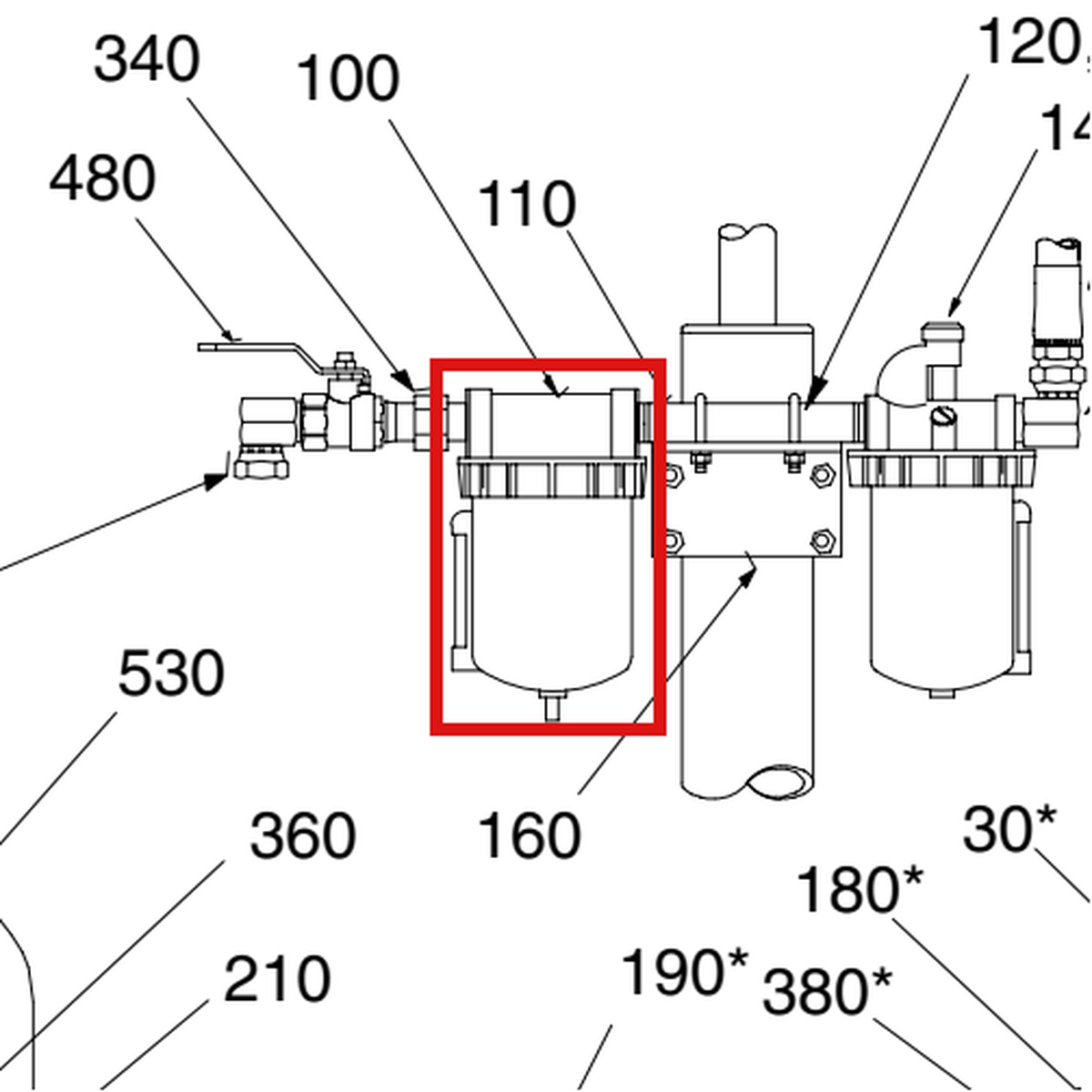

Air Filter, 3/4 in Inlet (F), 3/4 in Outlet (F), zinc-plated

Air Filter, 3/4 in Inlet (F), 3/4 in Outlet (F), zinc-plated

Regular price
$296.50
Sale price
$296.50
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Ships in 6-10 days, shipping times may vary
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

  • Air Filter

    • Centrifugal filter element removes contaminants and water
    • Visual indicator for viewing filter contents
UPC Product: 00633955246515
Family Code: FAMQFP
Unit of Measure: EA
Height: 5.6 IN   |  14.224 CM
Length: 5.95 IN   |  15.113 CM
Width: 11.9 IN   |  30.226 CM
Volume: .229 FT3   |  .006 M3
Chargeable Weight: 5.79 LBS  | 2.62 KG

Technical Specifications

Contaminant Size (µm) 40
Maximum Working Pressure (bar) 17.5
Maximum Working Pressure (kPa) 1750
Maximum Working Pressure (MPa) 1.8
Maximum Working Pressure (psi) 250
Type Air Filter
Air Inlet Size (cm) 1.905
Air Inlet Size (in) 3/4
Air Inlet Size (mm) 19.05
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Outlet Size (cm) 1.905
Air Outlet Gender Female
Air Outlet Size (in) 3/4
Air Outlet Size (mm) 19.05
Air Outlet Thread Type NPT
Material Removed Contaminants, Oil, Particles, Water
Maximum Air Flow Rate (SCFM) 250
Maximum Operating Temperature (°F) 150
Maximum Operating Temperature (°C) 65
