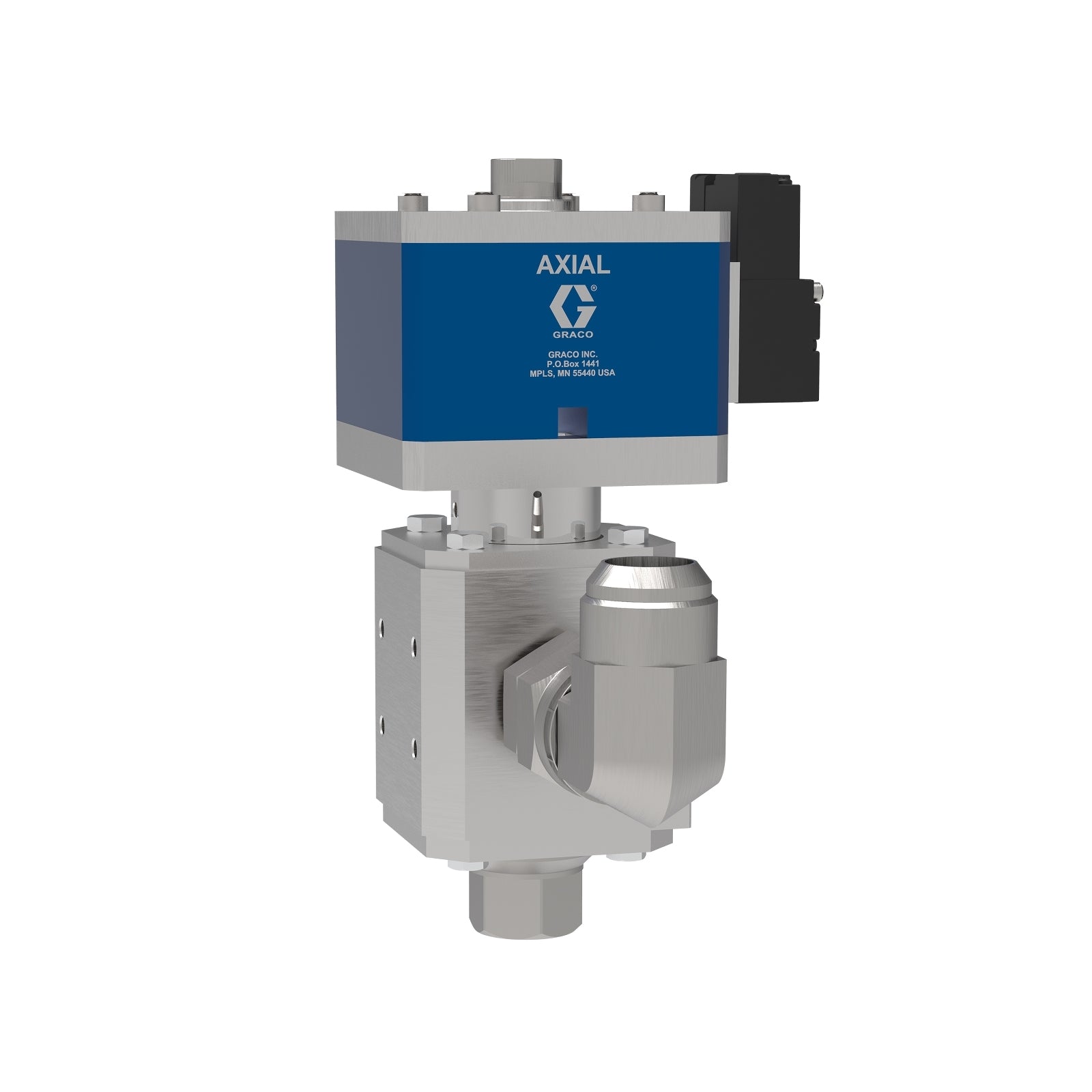

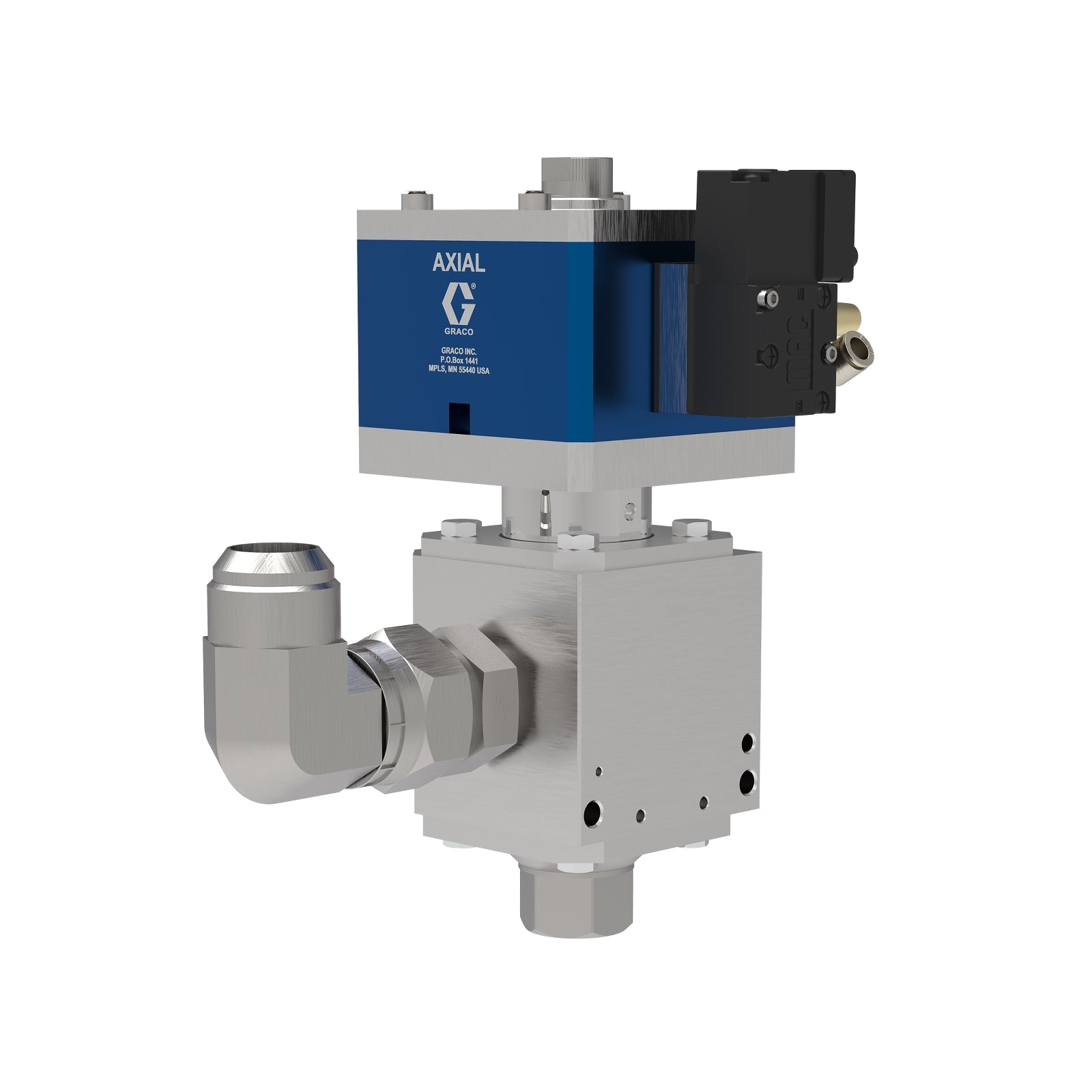

The Axial Rotating Dispense Valve offers high reliability for robotic glass bonding applications.
Features
- Unique swivel design prevents from twining of hoses, airlines, and electrical
- Easily dispense around corners with the correct position of the bead
- High degree of accuracy and repeatability
- Capable of handling high production speeds
- Wear-resistant seals and hardened components for long life
- Easy repeatable mounting for robotic and automated applications
- Ideal for one component urethane applications
Specifications
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Sealing, Glazing |
| Applicator Type | Rotating Ball/Seat |
| Component Type | Single Component |
| Connection Type | JIC |
| For Use With | E-Flo iQ Metering System, PCF Metering System |
| Gun Activation | Automatic |
| Gun Mount | Robot |
| Gun Type | Rotating Dispense |
| Inlet Thread Type | SAE, JIC |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Current Draw (µA) | 0.5 |
| Maximum Flow Rate (cc/min) | 2000 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 3000000 |
| Maximum Viscosity (mPa·s) | 3000000 |
| Maximum Working Pressure (MPa) | 24 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Air Inlet Pressure (MPa) | 0.55 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Minimum Viscosity (cP) | 100000 |
| Minimum Viscosity (mPa·s) | 100000 |
| Mount Location | Robot |
| Power Type | Pneumatic |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Type | Adhesive and Sealant Applicator |
| Weight (lb) | 10.3 |
| Wetted Parts | UHMWPE, Carbide |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Sealing, Glazing |
| Applicator Type | Rotating Ball/Seat |
| Component Type | Single Component |
| Connection Type | JIC |
| For Use With | E-Flo iQ Metering System, PCF Metering System |
| Gun Activation | Automatic |
| Gun Mount | Robot |
| Gun Type | Rotating Dispense |
| Inlet Thread Type | SAE, JIC |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Current Draw (µA) | 0.5 |
| Maximum Flow Rate (cc/min) | 2000 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (bar) | 276 |
| Maximum Fluid Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 3000000 |
| Maximum Viscosity (mPa·s) | 3000000 |
| Maximum Working Pressure (MPa) | 24 |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 241 |
| Minimum Air Inlet Pressure (MPa) | 0.55 |
| Minimum Air Inlet Pressure (bar) | 5.5 |
| Minimum Air Inlet Pressure (kPa) | 550 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Minimum Viscosity (cP) | 100000 |
| Minimum Viscosity (mPa·s) | 100000 |
| Mount Location | Robot |
| Power Type | Pneumatic |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Type | Adhesive and Sealant Applicator |
| Weight (kg) | 4.6 |
| Wetted Parts | UHMWPE, Carbide |
