Digital Bend Control for Repeatable Exhaust Work

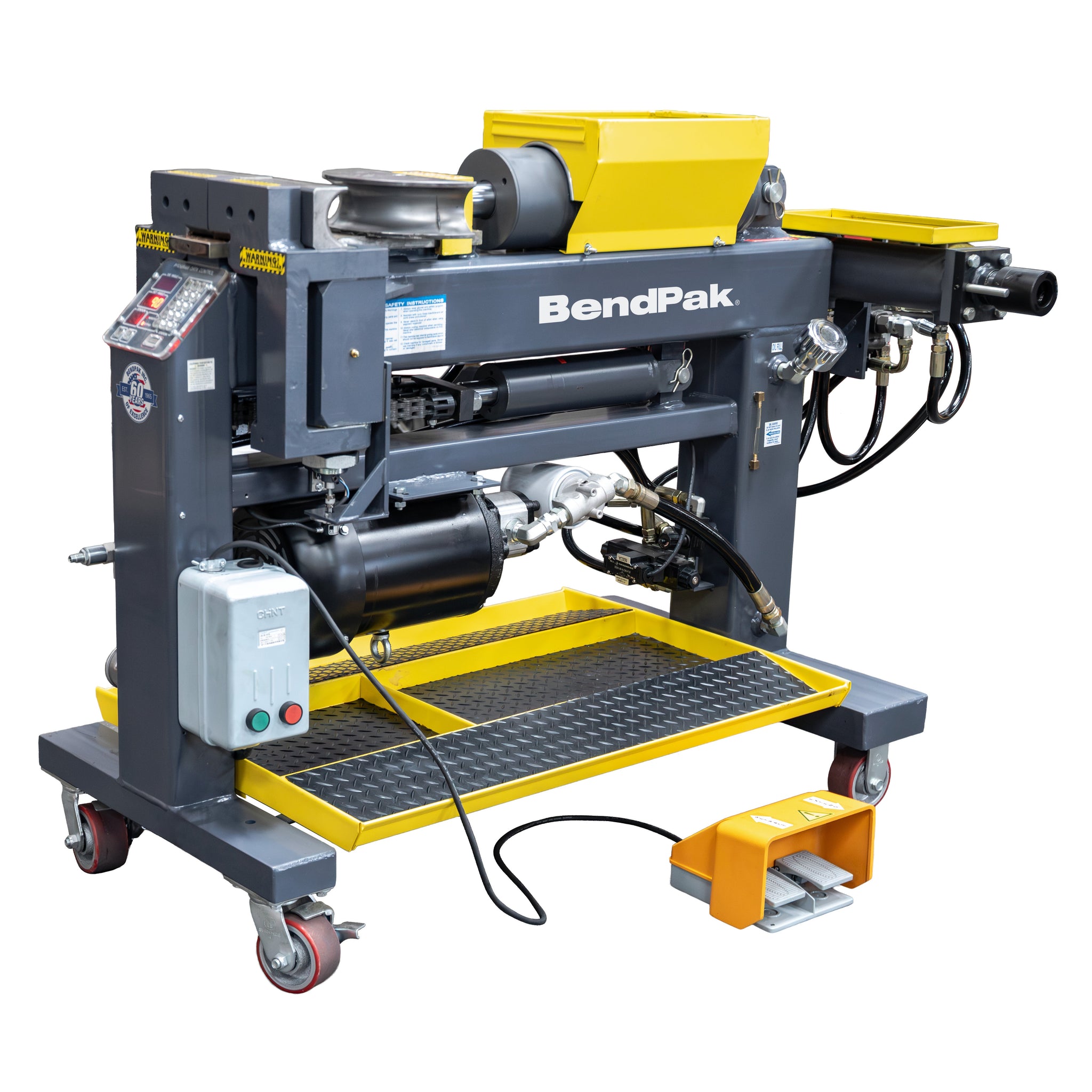

The BendPak 1302BA Digital-Automatic Pipe Bender is built for high-output exhaust shops and fabrication operations that need speed, consistency, and repeatability. It is the most advanced choice of these three BendPak pipe benders, adding digital control and bend-depth memory for shops that want to standardize common jobs and reduce operator guesswork.

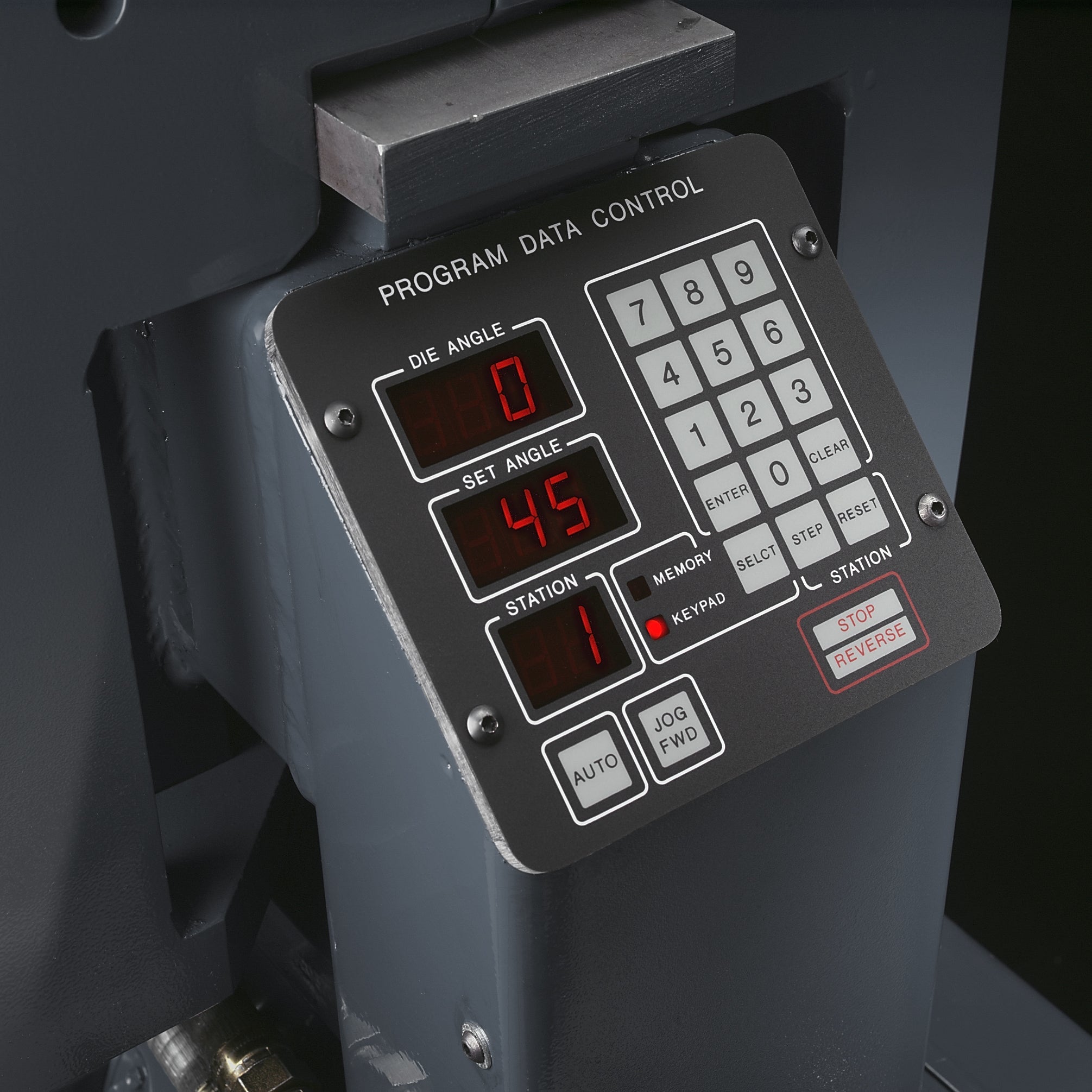

An advanced programmable mini-computer is safely enclosed within the front upright and manages automatic or manual bending functions. The digital control gives operators die angle readings up front and stores up to 99 different bend depths, making the 1302BA the right pick when repeatable original equipment exhaust fabrication and production consistency matter most.
Why Choose the 1302BA Over the BB-2 or 1302BAS?
The 1302BA is the model to choose when your shop repeats bends, services many similar exhaust systems, or wants digital control over bend depth instead of relying only on manual technique or semi-automatic button operation. Compared with the BB-2, it adds advanced automatic control. Compared with the 1302BAS, it adds digital bend readings and stored bend-depth programs.
That makes the 1302BA especially useful for busy shops that want to save setup time on repeat work. When technicians can call on stored bend depths and monitor die angle digitally, the process becomes easier to standardize across operators and shifts.
Quick-Change Bending Dies and End-Finishing Capability
The 1302BA uses BendPak twist-lock tooling and quick-change bending dies to help technicians cycle through bending projects faster. Quick-release bending and finishing dies reduce setup time, while the high-speed clampless swager, internal expander, and easy-to-use drop-in collar support efficient swaging, flaring, and expanding work.
Two separate rear end-finishing units give the 1302BA added fabrication value beyond bend formation alone. For shops producing original equipment-style exhaust work or custom systems, the combination of digital bending control and integrated end finishing helps keep the whole process on one professional platform.
Heavy Hydraulic Platform with Precision-Built Components
The 1302BA is built on a rigid 6" x 6" x 3/8" welded-steel tube frame with commercial-grade hydraulic cylinders, chrome-moly cylinder shafts, a pass-through cylinder stem, and a one-piece barrel that helps keep the bending gates aligned with the ram. Bending heads are precision ground to within .002", and heat-treated tooling supports longer service life.
A 5 HP energy-efficient motor, direct-drive high-speed 4 gpm pump, large-capacity fluid reservoir, canister oil filter, oil sight gauges, pressure gauges, oversized 1/2" high-pressure hose, and adjustable pressure valve support dependable hydraulic performance. Enclosed controls, tool trays, standard grease fittings, and industrial-grade casters help make the 1302BA powerful, organized, and shop-ready.

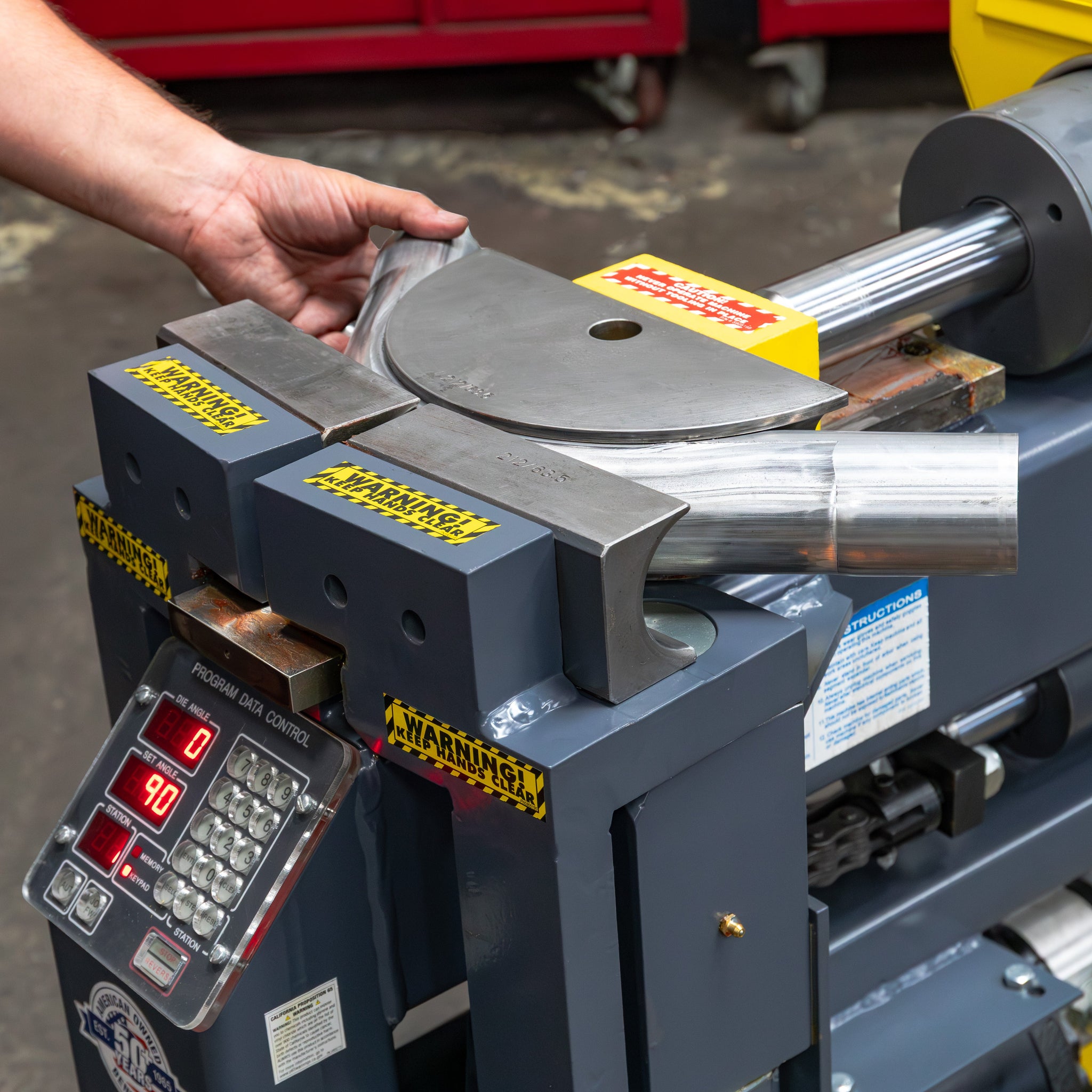

Digital Bend Control
Digital die angle readings give operators clear bend information up front. This helps reduce guesswork during precision exhaust fabrication.
Stores 99 Bend Depths
The programmable control board stores up to 99 different bend depths. It is built for shops that repeat common bends and want faster setup.
Automatic or Manual Operation
The 1302BA manages bending functions automatically or manually. That flexibility helps shops handle repeat work and one-off fabrication jobs.

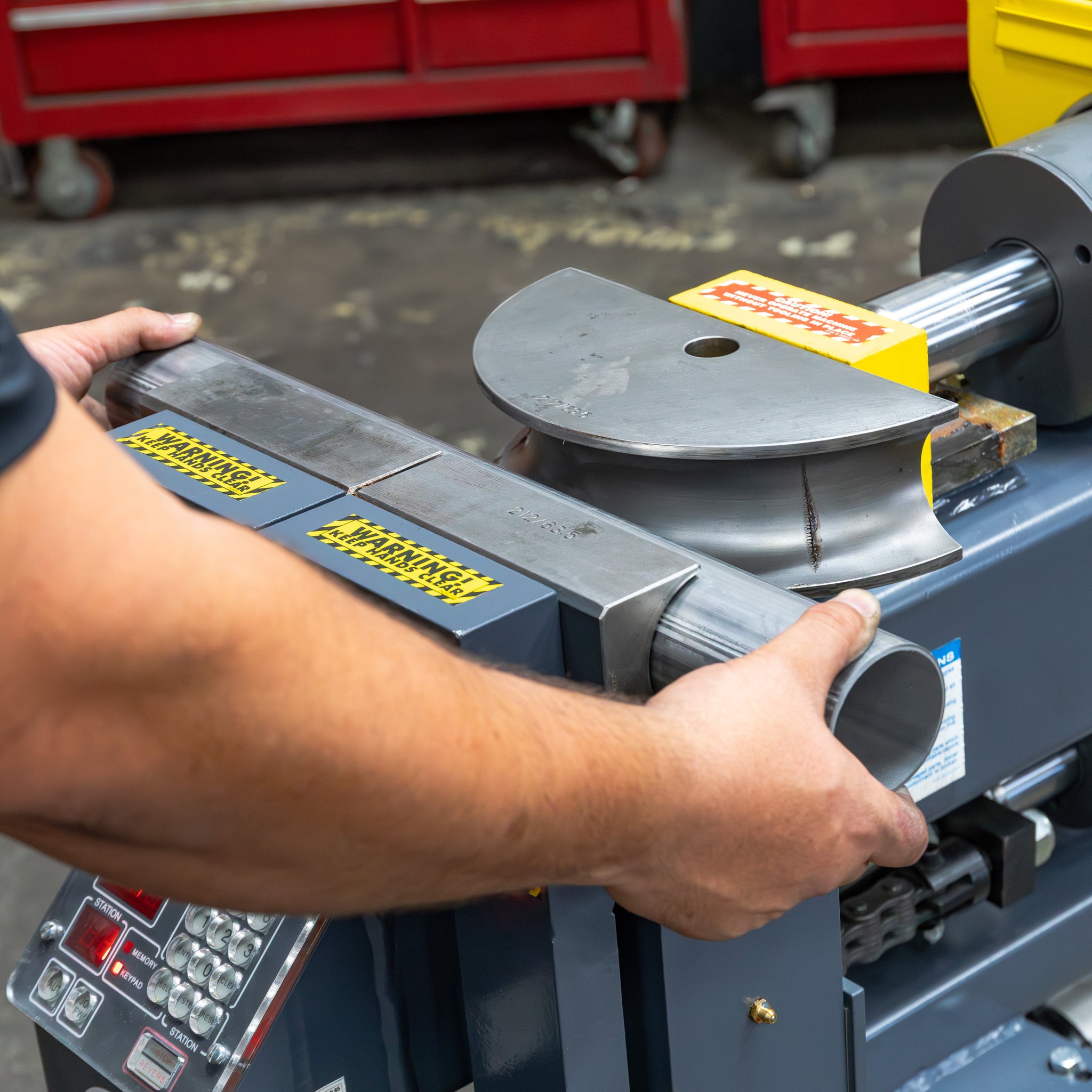

Quick-Change Die System
Twist-lock tooling and quick-release bending dies help shorten setup time. Operators can move through bending and finishing tasks with less delay.

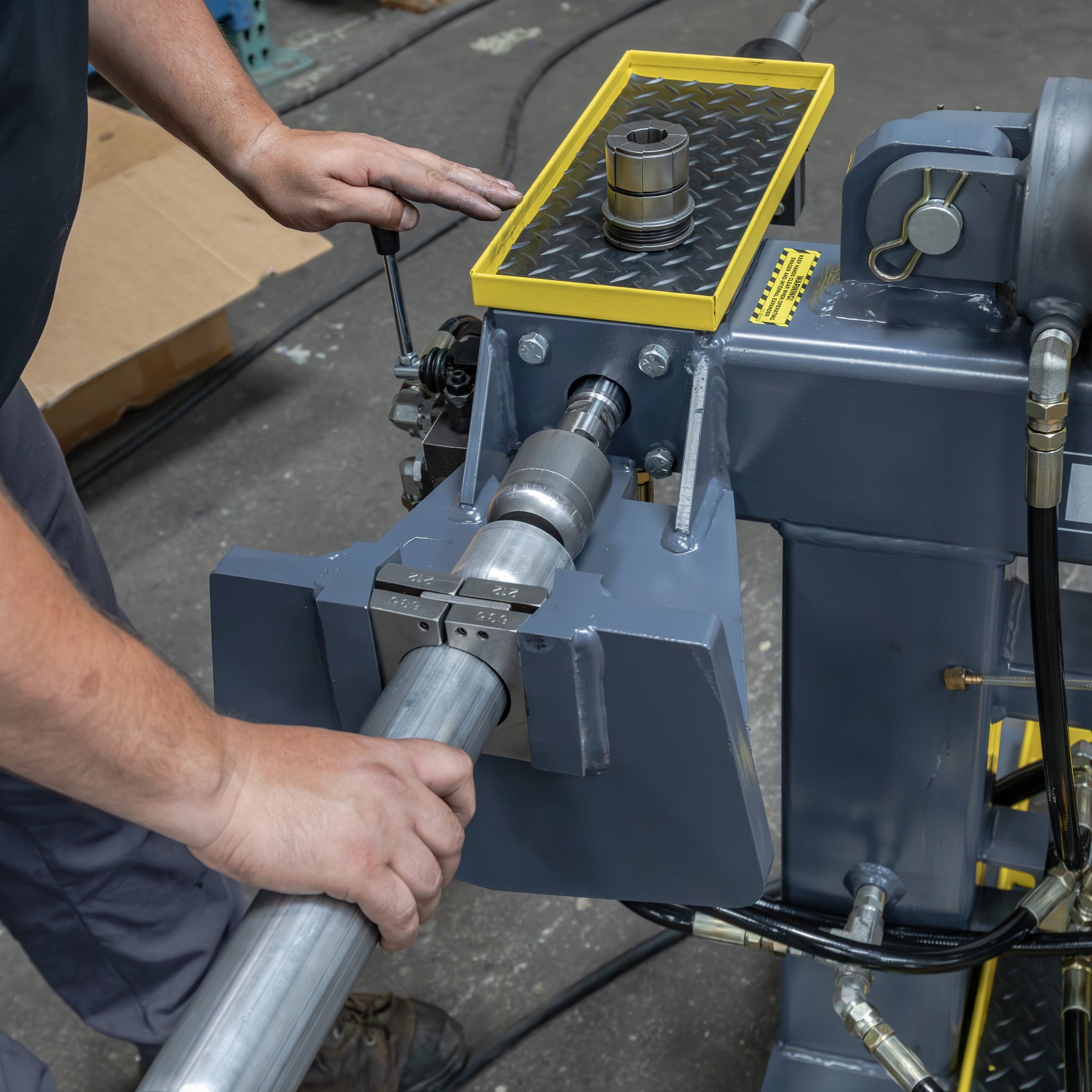

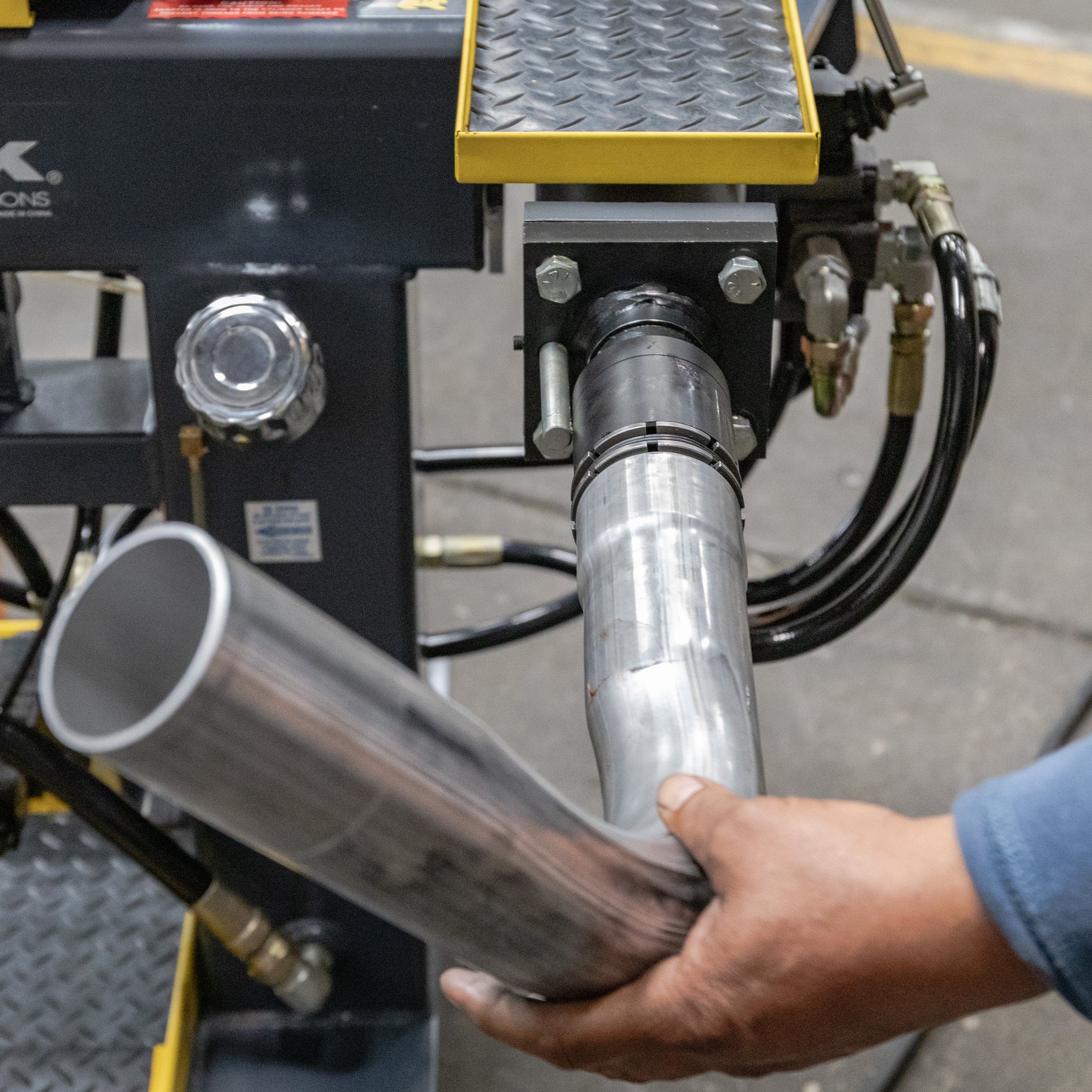

Integrated End Finishing
Two rear end-finishing units, a high-speed clampless swager, and an internal expander support flaring, expanding, and OE-style exhaust work.
Production-Grade Build
A welded-steel frame, commercial-grade hydraulics, precision-ground bending heads, and heat-treated tooling support high-output shop performance.
Recommended Add-ons
Features
- Digital-automatic pipe bender for repeatable bend control
- Programmable mini-computer enclosed in front upright
- Digital die angle readings displayed up front
- Stores up to 99 different bend depths
- Supports automatic or manual bending functions
- Two rear end-finishing units for flaring and expanding
- High-speed clampless swager and internal expander
- Twist-lock tooling and quick-release bending dies
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- Chrome-moly cylinder shafts conform to ANSI 92.2 standards
- Bending heads precision ground to within .002"
- Strong 5 HP energy-efficient motor
- Direct-drive high-speed 4 gpm pump
- Large-capacity fluid reservoir with canister oil filter
Specifications
| Bending Controls | Automatic / Digital |
| Expander Controls | Manual |
| Frame Style | Double-Ended Expander |
| Max Tube Diameter | 3 in |
| Max Bending Radius | 5 in |
| Min Bending Radius | 3.3 in |
| Top Cylinder Force | 60000 lb |
| Hydraulic Filter | Canister |

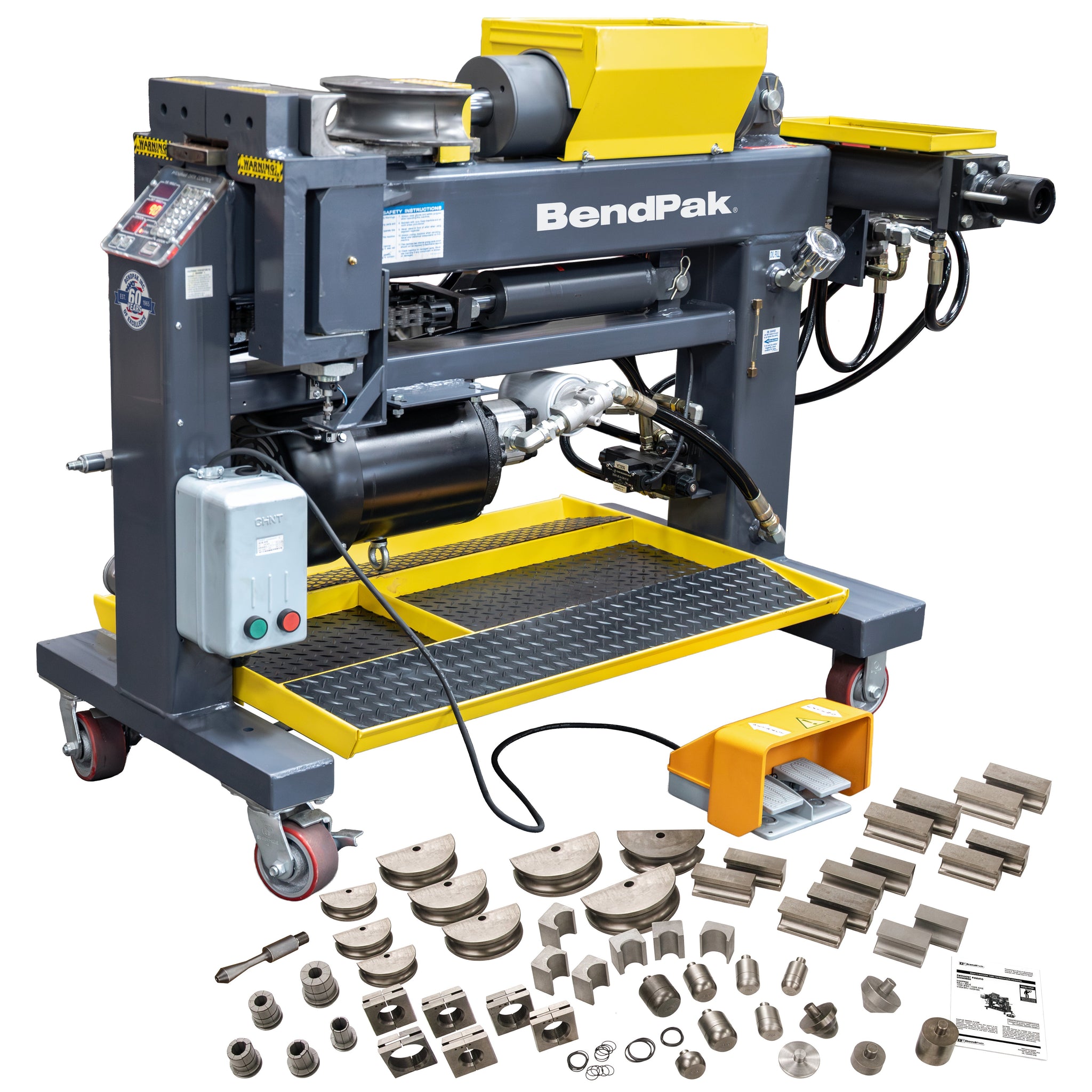

| Standard Die Pack | 1.5, 1.75, 1.875, 2, 2.25, 2.5 |
| Width | 41 in |
| Depth | 64 in |
| Height | 26 in |
| Shipping Weight | 1388 lb |
| Shipping Dimensions | 70 x 48 x 30 in |
| Shipping Method | LTL |
| Offload Requirement | Liftgate |
