BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width
BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width

BendPak HD-9 (5175861) 9,000-lb. Capacity / Four-Post Lift / Standard Width

Regular price
$5,295.00

See Lower Price in Cart

Quantity must be 1 or more


5175861 HD-9 9,000 Lb. Capacity / Standard Width

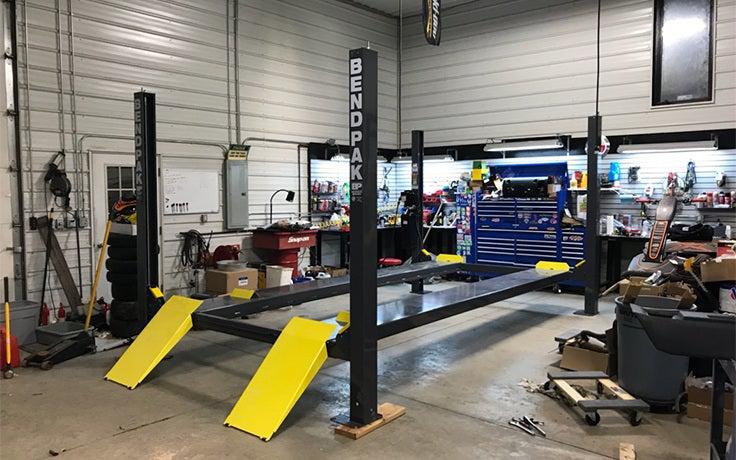

The HD-9 series of 9,000-lb. four-post lifts contains seven different lifting models. Each four-post lift is perfect for vehicle storage and service, whether you’re working at the shop or your home garage. Each model is available with optional casters, drip trays, jack platforms and more.

Features

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Freestanding design

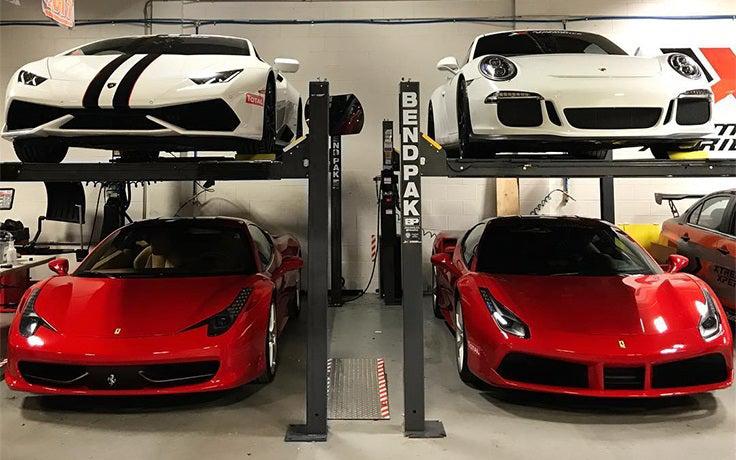

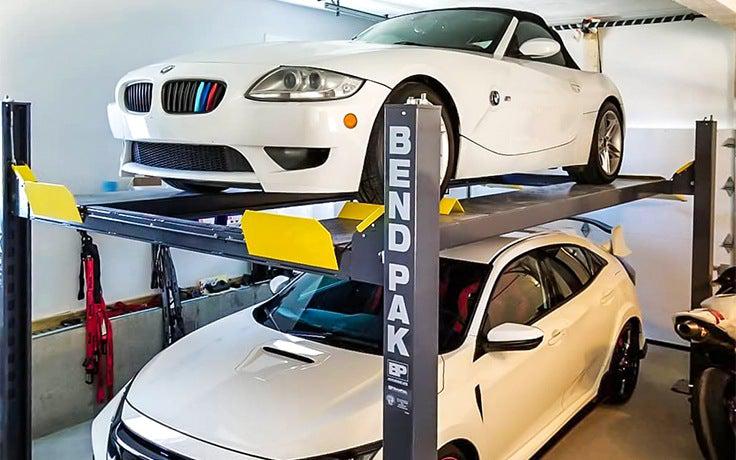

  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column

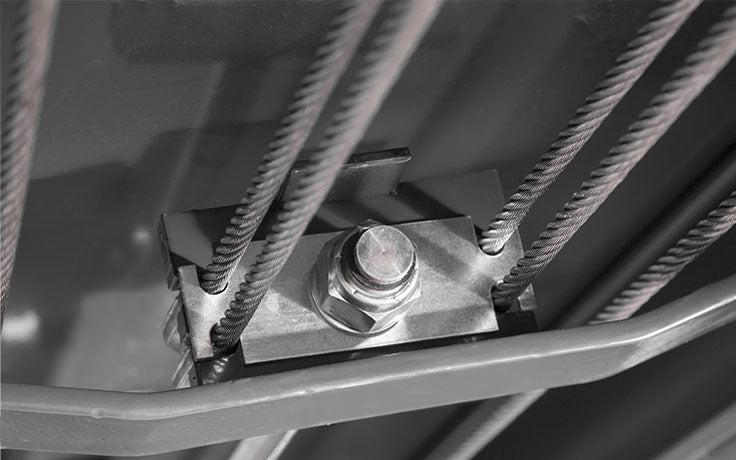

  • Oversized self-lubricating cable rollers
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles

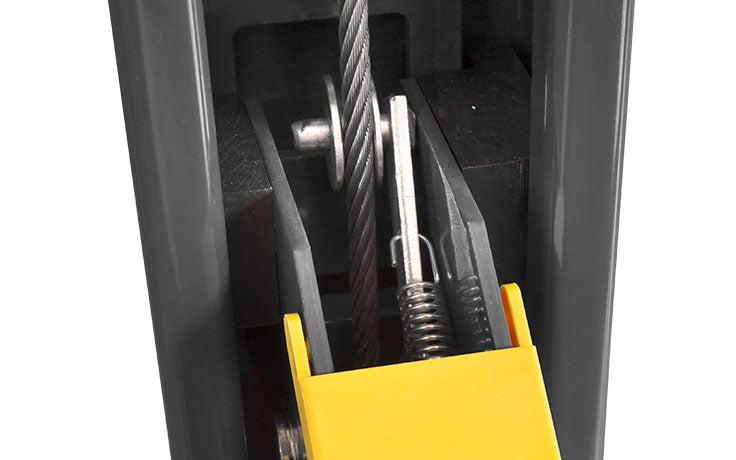

  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low ground clearance vehicles
  • Optional drive-thru ramps are available
  • Optional drip trays are available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved
Capacity
Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height: 4.5" (114 mm)
B - Max. Rise: 70" (1,778 mm)
C - Max. Lifting Height: 74.5" (1,892 mm)
Time to Full Rise: 45 seconds
Outside Dimensions
D - Overall Width: 110.25" (2,800 mm)
E - Outside Length: 174" (4,420 mm)
F - Overall Length: 200" (5,080 mm)
G - Height of Columns: 88" (2,235 mm)
Inside Dimensions
H - Width Between Columns: 100.25" (2,546 mm)
I - Drive-Thru Clearance: 86.5" (2,197 mm)
Runways
J - Runway Width: 19" (483 mm)
K - Length of Runways: 164" (4,166 mm)
L - Width Between Runways: 37.5" (953 mm) or 44.375" (1,127 mm)
M - Runway Centerline: 56.5" (1,435 mm) or 63.375" (1,610 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm) or 82.375" (2,092 mm)
Minimum Wheelbase
Rated Capacity: 115" (2,921 mm)
75% Capacity: 100" (2,540 mm)
50% Capacity: 85" (2,159 mm)
25% Capacity: 70" (1,778 mm)
Locking
Locking Positions: 12
Lock Spacing: Every 4" (102 mm)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Shipping
Weight: 1,746-lbs. (792 kg)
Dimensions: 165'' x 22'' x 34'' (4,191 mm x 559 mm x 864 mm)

;
