5175860 HD-9ST 9,000 Lb. Capacity / Narrow Width

A Slim, Safe and Certified Lift
Some garages are just a bit too cozy for a standard-width four-post lift. The trick is to find a smaller-footprint lift that won’t sacrifice functionality. The HD-9ST is perfect for small garages and spaces that are already filled to near-capacity. Its narrow width is designed for spaces and service bays that need to fit more lift in less space.

A slim lift is a smart choice for owners more compact vehicles. Because the HD-9ST features an open center, it doubles as both narrow parking lift and maintenance lift. This makes it the ideal four-post lift for wrenchers with a limited amount of space. In addition to the narrow design, the columns are only 88” high, so it’s low-profile too. The runways raise to a max height of 75”, so the HD-9ST fits easily in low ceilings yet doesn’t sacrifice lifting height. Ample clearance underneath ensures that full-grown men and women over 6-feet tall will have no problem performing oil changes, comfortably adjusting transmission jacks and removing and replacing exhaust systems. Other lifts may sacrifice lifting height as they reduce their overall widths to accommodate smaller vehicles, but not this one. This is one four-post lift that’s every bit as comfortable to use as its standard-width and super-wide sister models in the HD-9 series.

Features

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Two different ramp lengths to choose from
  • Narrow width for space efficiency
  • Freestanding design
  • Perfect for parking, storage and service
  • Runways accommodate narrow and standard vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers

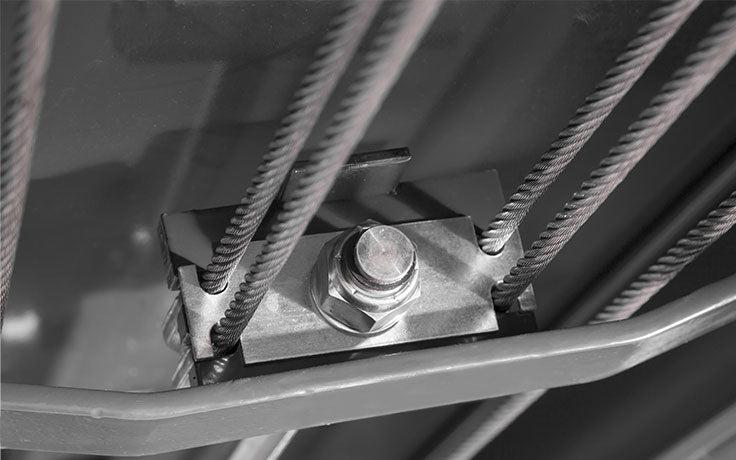

  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature a durable matte finish
  • Push-button pneumatic safety release

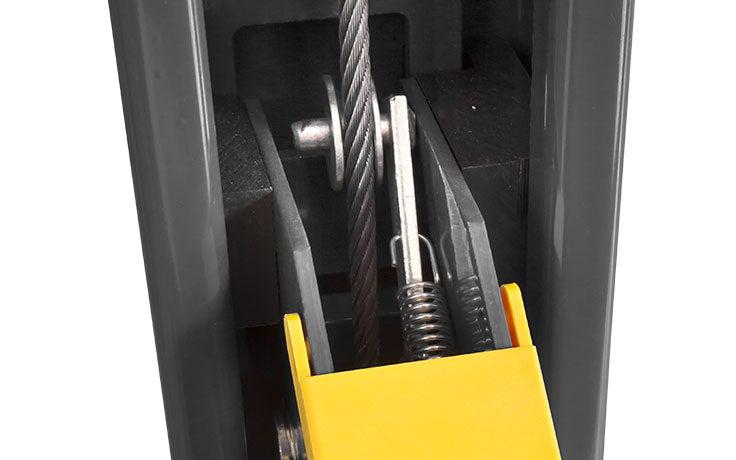

  • Independent backup slack-cable safety latches
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Longer approach ramps for low-ground clearance vehicles
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
  • ETL Approved
Style Standard Length Runways, Narrow Width
Lifting Capacity 9,000 lbs. (4,082 kg)
Minimum Runway Height 4.5" (114 mm)
Maximum Rise 70" (1,778 mm)
Maximum Lifting Height 74.5" (1,892 mm)
Time to Full Rise 45 seconds
Width Overall 100.25" (2,546 mm)
Outside Length 174" (4,420 mm)
Overall Length 200" (5,080 mm)
Height of Columns 88" (2,235 mm)
Width Between Columns 89.75" (2,280 mm)
Drive-Thru Clearance 76.5" (1,943 mm)
Runway Width 19" (483 mm)
Length of Runways 164" (4,166 mm)
Width Between Runways 37.5" (953 mm)
Runway Centerline 56.5" (1,435 mm)
Outside Edge of Runways 75.5" (1,918 mm)
Rated Capacity 115" (2,921 mm)
75% Capacity 100" (2,540 mm)
50% Capacity 85" (2,159 mm)
25% Capacity 70" (1,778 mm)
Locking Positions 12
Lock Spacing Every 4" (102 mm)
Power Unit 220 VAC / 60 Hz / 1Ph
Shipping Dimensions 167" X 22" X 41"
Noise 45 dB

;
