Expand Parking Capacity Without Starting Over

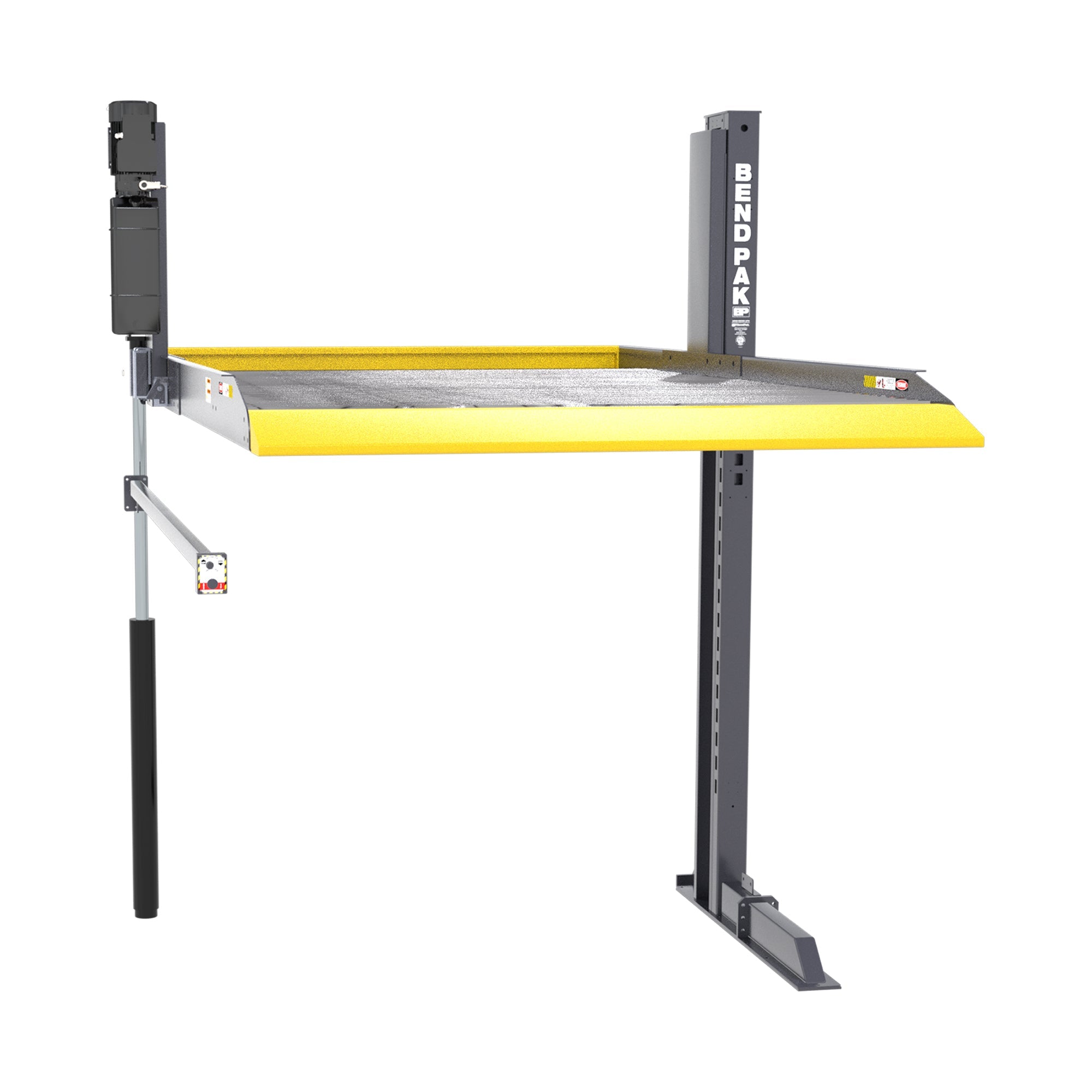

The BendPak PL6000DC Add-On Platform and Column Set is built for facilities that already understand the value of shared-column parking and want to expand capacity with a system designed around the PL6000DC platform. Instead of treating additional parking as a separate installation problem, this add-on set helps extend the PL6000DC layout with compatible platform and column hardware.
For real estate developers, architects, engineers, automotive dealers, and commercial parking operators, that scalability matters. The PL6000DC system is designed to fit inside a typical 8-foot parking space, accommodate most cars and light trucks, and support both long-term upper-level parking and more frequent vehicle access below.
Shared Columns Make Dense Parking Smarter

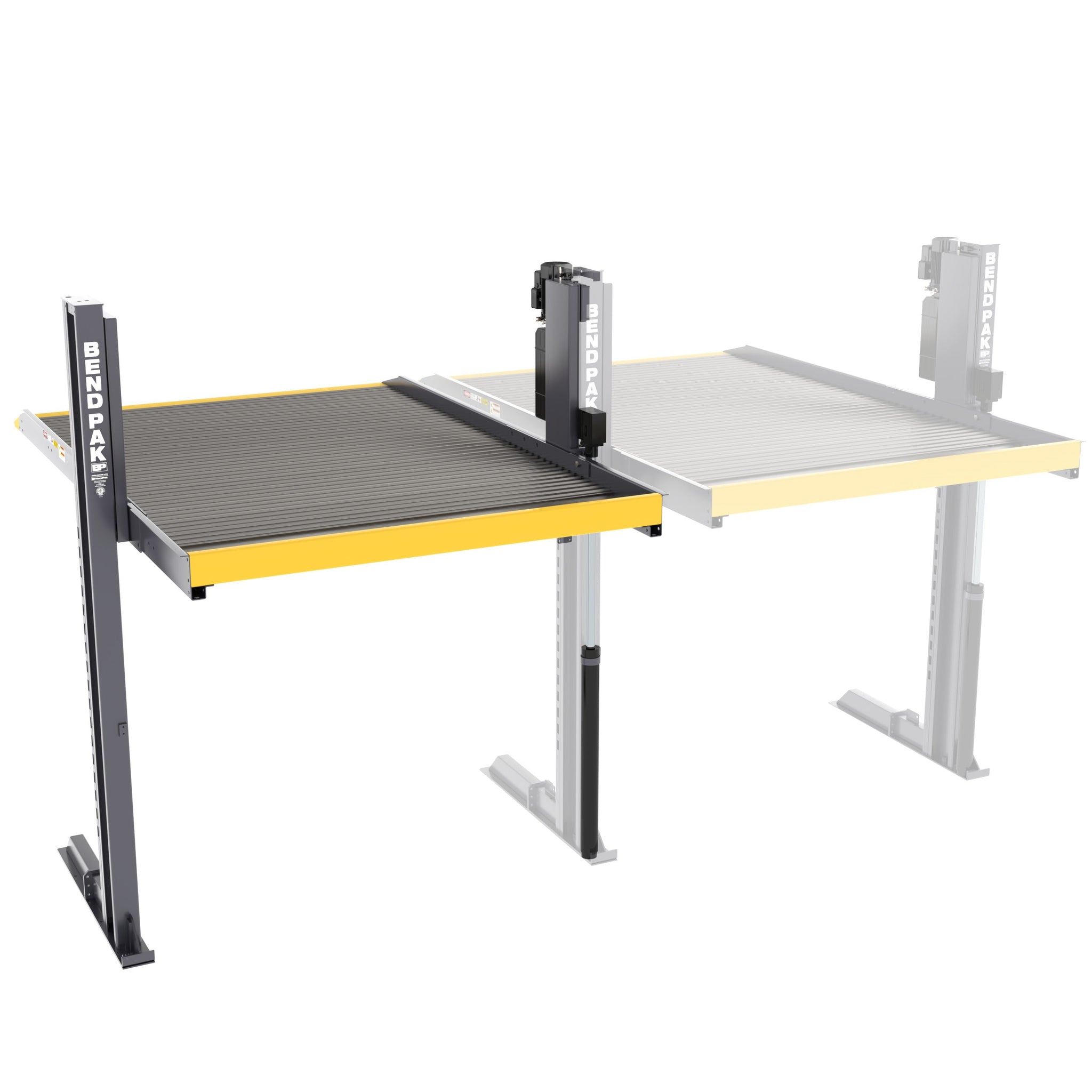

The shared-column design is one of the major advantages of the PL6000DC system. By allowing multiple parking lifts to be installed in minimum space, the layout helps increase vehicle density without turning the facility into a maze of standalone structures.
When installed in ganged configurations, the PL6000DC add-on approach can reduce duplicated column requirements and help make better use of available space. That makes it especially useful for parking garages, residential developments, dealership inventory areas, and commercial facilities where every bay has to work harder.
Commercial-Grade Platform Design for Daily Parking Use
The PL6000DC platform is built around commercial-grade design and construction, with a galvanized and corrugated anti-slip surface that supports vehicle parking in demanding environments. Full-width channel-locked center panels help protect the lower vehicle, while the wide deck platform accommodates pickups, vans, and cars.
The platform can be stopped at different heights to fit various vehicles and ceiling heights, giving operators more flexibility in real-world parking layouts. Designed for installation on typical parking surfaces, the system is built to support both indoor and outdoor parking applications where dependable daily use matters.
Hydraulic Operation and Safety Systems Built Into the PL6000DC Platform
The PL6000DC system uses hydraulic lifting with direct-drive cylinder operation, automatic safety lock engagement, anti-fall protection, hydraulic overloading protection, and mechanical safety locks spaced every 4 inches. An electric key switch, automatic shut-off when the operator releases the key, 24VAC operator controls, emergency stop button, pressure relief valve, and upper limit switch all support safer operation.
Maintenance-free composite carriage bearings help reduce ongoing service needs, while the overhead power unit supports smooth, quiet hydraulic operation. For facilities expanding an existing PL6000DC parking system, this add-on set keeps the focus where it belongs: more usable parking with controlled operation and fewer headaches.
Recommended Add-ons
Features
- Fits BendPak PL6000DC parking lift systems
- Shared column add-on platform and column set
- Includes power unit
- Ganged column design for multiple installations in minimum space
- Commercial-grade design and construction
- Galvanized and corrugated anti-slip platform
- Designed for installation on typical parking surfaces
- Platform can stop at different heights
- Full-width channel-locked center panels help protect lower vehicle
- Wide deck platform accommodates pickups, vans, and cars
- Direct-drive hydraulic cylinder operation
- Automatic safety lock combined with anti-fall device
- Maintenance-free composite carriage bearings
- Electric key switch with automatic shut-off
- Hydraulic overloading protection
Specifications
| Style | Two-Post Parking Lift |
| Number of Platforms | 1 |
| Lifting Capacity | 6000 lb |
| Lock Release | Manual Release |
| Lifting Time | 60 seconds |
| Voltage | 208-240V / 50/60 Hz / 1-Phase |
| Amperage | 22 Amps |
| Sound Level | 52 dB |
| Shipping Method | LTL |
| Offload Requirement | Forklift |
