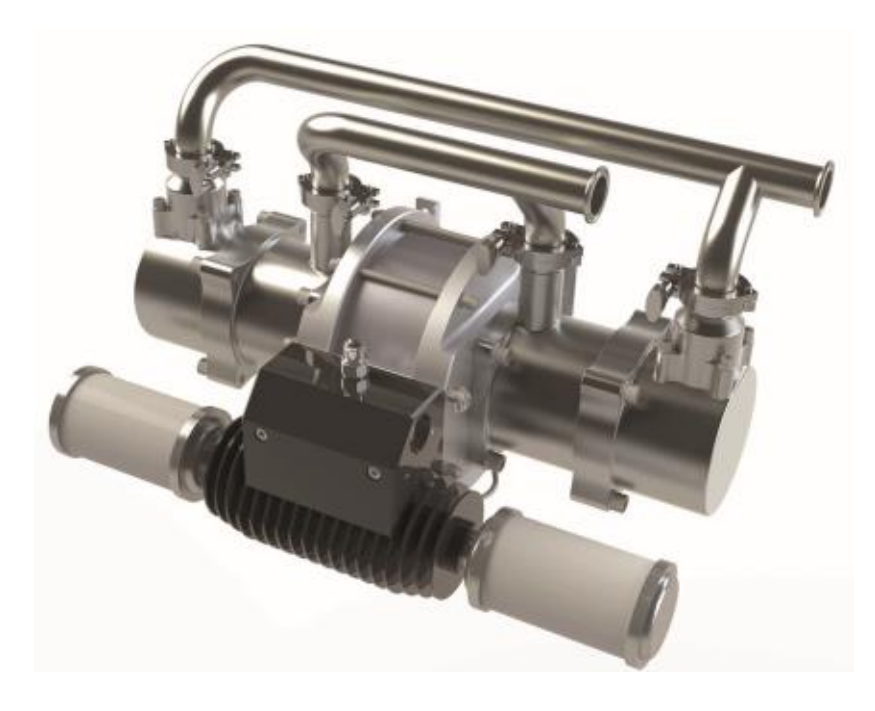

Binks 104020-M2 Maple Pump 60/3

Binks 104020-M2 Maple Pump 60/3

Regular price
$14,861.00
Sale price
$14,861.00
Quantity must be 1 or more


  • Low Ice lubricant free air motor with patented quick exhaust technology removes the risk of valve icing
  • Enclosed Bellows Seals - no exposed seals eliminating shaft packing lubrication and significantly reducing pump maintenance
  • Stainless steel fluid sections, ideal for waterborne, or solvent based paints
  • Tungsten Carbide ball seats and ceramic coated pistons ensure maximum, trouble free operating life
  • Equal thrust on each stroke produces a smooth, even paint flow
  • Control valve metal spool and sleeve for long life, incorporating our patented magnetic detent to eliminate stall conditions
  • Fluid connections guarantee a smooth internal flow and eliminate paint pockets for to ensure a superior finish
  • 5 year pump warranty on materials and workmanship

The Maple Pump is our advanced, air operated, horizontal piston pump for automotive and general industrial applications. This range of precision engineered pumps is designed to handle modern shear sensitive solvent and waterborne paints as well as pure solvents and other paint shop materials. The Maple Pump design combines an energy efficient air motor with our low shear fluid section technology providing a smooth consistent flow of material for both automatic and manual spray gun systems.

Model Number 60/3
Ratio 3:1
Fluid output @60 cycles/min 90 L/min
Max continuous cycle rate 20 cycles/min
Max intermittent cycle 40  cycles/min
Inlet fluid connection 1.5" Sanitary
Outlet fluid connection 1.5" Sanitary
Max air inlet pressure 102 PSI
Compressed air Inlet 1/2" BSPP/NPSM
Air volume / cycle @ 45psi 19.8 L/min
Air volume / cycle @ 90psi 39.7  L/min
Weight 143 lbs
Service Kits (Sold Seperately)
Fluid Piston Seal Kit 250632
Fluid Section Overhaul Kit 250633
Air Motor Seal Kit 250634
Control Valve Kit 250635

;
