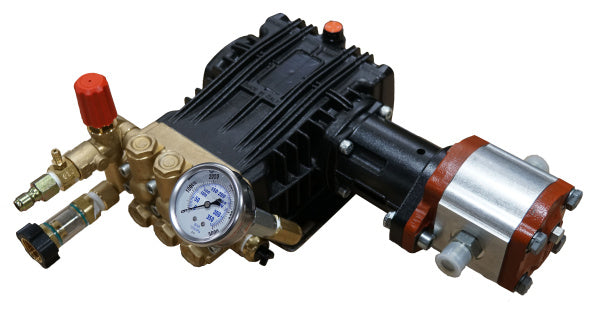

Hydraulic powered cold water pressure washers are compact and powerful. Using the hydraulic power source on your existing equipment to transform oil flow and pressure to water flow and pressure as an effective way to deliver cold water pressure washing power where you need it most. Required inlet oil flow is 12 gallons per minute at 1500 psi. Many times the equipment you are using needs cleaning on a daily basis. Tap into that power to keep the machinery clean as well. These machines are commonly used on paving, concrete, construction, mining and military equipment. Features include a high efficient hydraulic motor, triplex plunger pump with ceramic plungers and stainless steel valves protected by an unloader valve and secondary pop off valve. Trigger gun and quick change tips in 0, 15°,25°,40° and soap tip. Oil connections inlet and discharge are J.I.C. #10, Simple design for easy operation and maintenance. Required inlet oil flow is 12 gpm @ 1500 psi will create 4 gpm @ 3000 psi cleaning power
Cam Spray 304HYD Specifications
| Max Pump Inlet Water Temp | 160 F |
| Required Oil Inlet Pressure | 3000 psi |
| Product Dimensions | 10" x 12" x 10" |
| Water Type | Cold |
| Powered By | Hydraulic Motor |
| Mounting Type | Base Mount |
| Flow Rate in GPM / LPM | 4 / 15.2 |
| Pump Thermal Protection | Mechanical |
| Hose Dimension | 50' x 3/8" |
| Required Oil Inlet Flow | 12 gpm |
| Pressure in PSI / Bar | 3000 / 207 |
Made in USA. Need help choosing voltage, burner fuel or flow? Call 888-714-1410 or email sales@pittsburghsprayequip.com.
