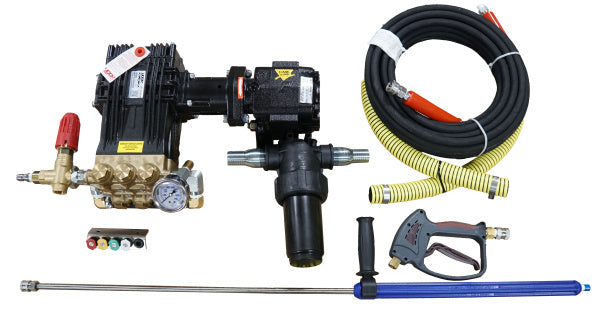

Hydraulic powered cold water pressure washers are compact and powerful. Using the hydraulic power source on your existing equipment to transform oil flow and pressure to water flow and pressure as an effective way to deliver cold water pressure washing power where you need it most. Required inlet oil flow is 20 gallons per minute at 2400 psi. Many times the equipment you are using needs cleaning on a daily basis. Tap into that power to keep the machinery clean as well. These machines are commonly used on paving, concrete, construction, mining and military equipment. Features include a high efficient hydraulic motor, triplex plunger pump with ceramic plungers and stainless steel valves protected by an unloader valve and secondary pop off valve. Trigger gun and quick change tips in 0, 15°,25°,40° and soap tip. Oil connections inlet and discharge are J.I.C. #10, Simple design for easy operation and maintenance. Required inlet oil flow is 20 gpm @ 2400 psi will create 5.5 gpm @ 5000 psi cleaning power.
Cam Spray 5055HYD Specifications
| Required Oil Inlet Pressure | 5000 |
| Product Dimensions | 40" x 30" x 60" |
| Water Type | Cold |
| Powered By | Hydraulic Motor |
| Mounting Type | Base Mount |
| Flow Rate in GPM / LPM | 5.5 / 21 |
| Pump Thermal Protection | Mechanical |
| Max Pump Inlet Water Temp | 160° F |
| Hose Dimension | 50' x 3/8" |
| Required Oil Inlet Flow | 20 gpm |
| Pressure in PSI / Bar | 5000 / 345 |
Made in USA. Need help choosing voltage, burner fuel or flow? Call 888-714-1410 or email sales@pittsburghsprayequip.com.
