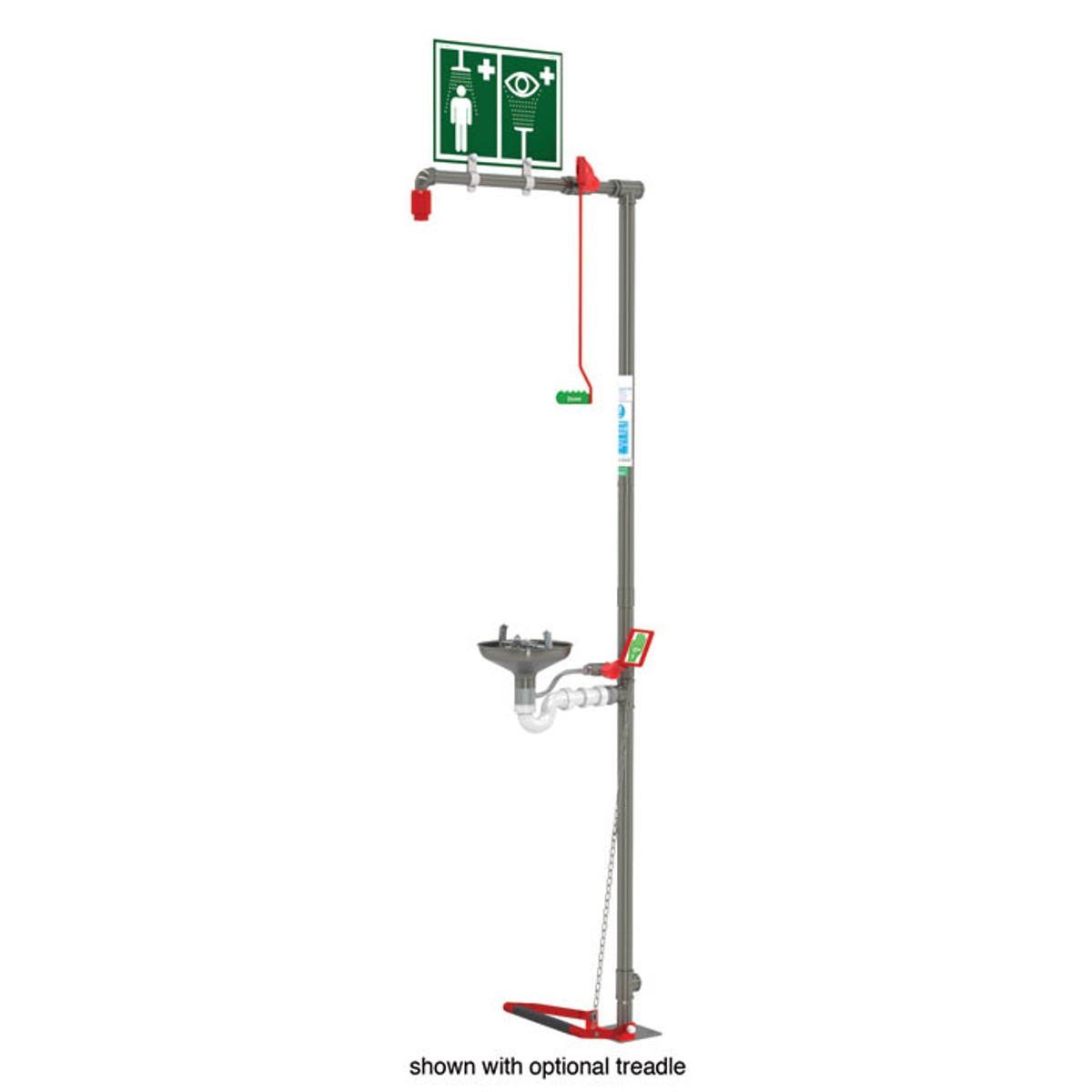

Be prepared to respond to accidents with this all-in-one floor mounted combination safety shower with top water inlet that provides initial on-site treatment to eye/face or full body exposure to hazards. Suitable for use in applications that are not subject to the possibility of freezing or overheating. The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure. Low operating torque offers reliable, easy on/off operation. Durable, coated stainless steel pull handle with nylon valve connection is easy to grip and activate for immediate water drenching.
Designed for high flow rates that meet or exceed ANSI standards, the nozzle offers optimal spray distribution for user protection. Unlike shower rose designs, this compact nozzle reduces the potential for insect nesting and eliminates high replacement costs associated with cracked or dented plastic spray heads. Open stainless steel bowl eye/face wash with high, ANSI-compliant flow rate features twin spray nozzles with dust covers that pop-off when eye wash is activated via the highly visible push plate. Easy-to-reach flow regulator valve adjusts to suit the severity of the accident.
Solid construction using stainless steel pipework for added corrosion resistance. Includes an inspection record tag for recording service and test history. Add optional foot treadle for a secondary means of eyewash activation. Some assembly may be required.
Additional Specs
| Net Weight, lbs: | 35.3 |
| Net Weight, kg: | 16 |
| Dimensions, Exterior: | 103" H x 12.4" W x 29.5" D |
| Dimensions, Exterior: | 2617mm H x 314mm W x 314mm D |
| Height Without Sign, inches: | 92.3 |
| Height Without Sign, mm: | 2344 |
| UL Classified to ANSI Z358.1-2014: | Yes |
| Water Inlet Size NPT: | 1-1/4 in (F) |
| Minimum Operating Pressure: | 2 bar g, 29 PSI |
| Maximum Operating Pressure: | 6 bar g, 87 PSI |
| Water Flow Shower/Body Liters/min: | 76 |
| Water Flow Shower/Body US Gal/min: | 20 |
| Water Flow Eye/Face Liters/min: | 11.4 |
| Water Flow Eye/Face US Gal/min: | 3 |
| Material Specifications: | Nozzle: Nylon 6, Eye/facewash diffusers: Chrome plated brass with stainless steel mesh. |
| Operating Valve Material: | 316L Stainless |
| Eye/Face Wash Bowl Material: | Stainless Steel |
| Mounting Type: | Floor |
| Pipework Material: | Stainless Steel |
| Activation Method: | Shower: Pull Handle, Eye/Face wash: Push Plate |
| Eye/Face Wash Bowl Interior Dimensions: | 10.25" W x 10.25" D |
| : | 260mm W x 260mm D |
| Minimum Ambient Temperature, °F: | 41 |
| Minimum Ambient Temperature, °C: | 5 |
| Maximum Ambient Temperature, °F: | 95 |
| Maximum Ambient Temperature, °C: | 35 |
