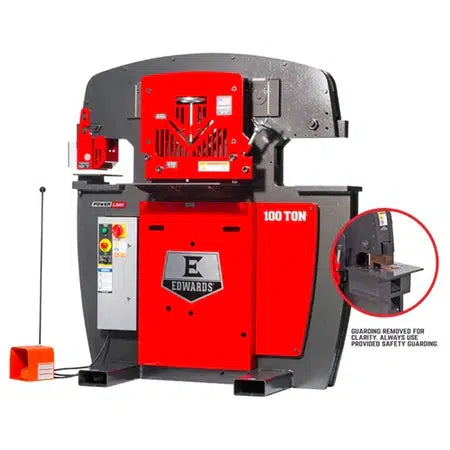

Edwards 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher

Edwards 100 Ton Ironworker 3 Phase, 208 Volt, PowerLink, Coper Notcher

Regular price
$36,259.00
Sale price
$36,259.00
Quantity must be 1 or more


DESCRIPTION

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed Coper Notcher. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optional Accessories available to increase precision and efficiency

SPECIFICATIONS

Motor Speed (RPM) 1765
Punch Max Capacity (In.) 1-1/16 dia in 1" A36"
Punch Stroke (In.) 1-13/16
Punch Throat Depth (In.) 11
Punch Work Height (In.) 39-1/16
Flat Bar Shear Max Capacity 1" 14
Flat Bar Shear Work Height (In.) 37
Weight (Lbs.) 4650
Flat Bar Shear Max Square (In) 1-1/4
Flat Bar Shear Max Round (In) 1-1/4
Hydraulic Pump (GPM) 10-1/2
Punch Shut Height (In) 6-15/16
Punch Open Height (In) 8-3/4
Rating (Tons) 100
Reservoir (Gal.) 7
Valve Pressure (PSI) 3500
Motor (HP) 7.5 HP 1 ~ 230V
Motor Amps 36
Length 46.0000
Height 67.0000
Weight 4735.0000
Width 69.0000

;
